SHOPFLOOR AUDIT & MANUFACTURING INFRASTRUCTURE

Precision Manufacturing Facility & Machinery Fleet

AS Prototypes operates a 5,000+ m² Shenzhen facility documented in this AS Prototypes equipment list of 82 in-house production and metrology systems. Our shopfloor integrates Computer Numerical Control (CNC) milling, Star Swiss lathes, Sodick and Makino Electrical Discharge Machining (EDM), 50T–850T Fanuc and Haitian molding, sheet metal, 3D printing, and a 20°C ± 1°C Zeiss Coordinate Measuring Machine (CMM) lab.

5,000+ m² In-House Shopfloor82 In-House Production & Metrology Systems3/4/5-Axis CNC MillingStar Swiss Micro-TurningSodick Wire & Makino Sinker EDMZeiss CMM 20°C Climate-Controlled Metrology
82 Systems
In-House Production & QC Fleet
32 CNC/EDM/Grinding, 40 Molding/Sheet/3DP & 10 Metrology
±0.005 mm
Precision Tolerance
Star Swiss Turning, Wire EDM & Precision Grinding
20°C ± 1°C
Constant-Temp Metrology Lab
Zeiss CMM, 2.5D Optical VMS & TESA Height Gauges
24 / 7
Continuous Production
Multi-Shift Agile Prototyping & High-Volume Runs
MACHINERY CLUSTER 01 · CNC MILLING

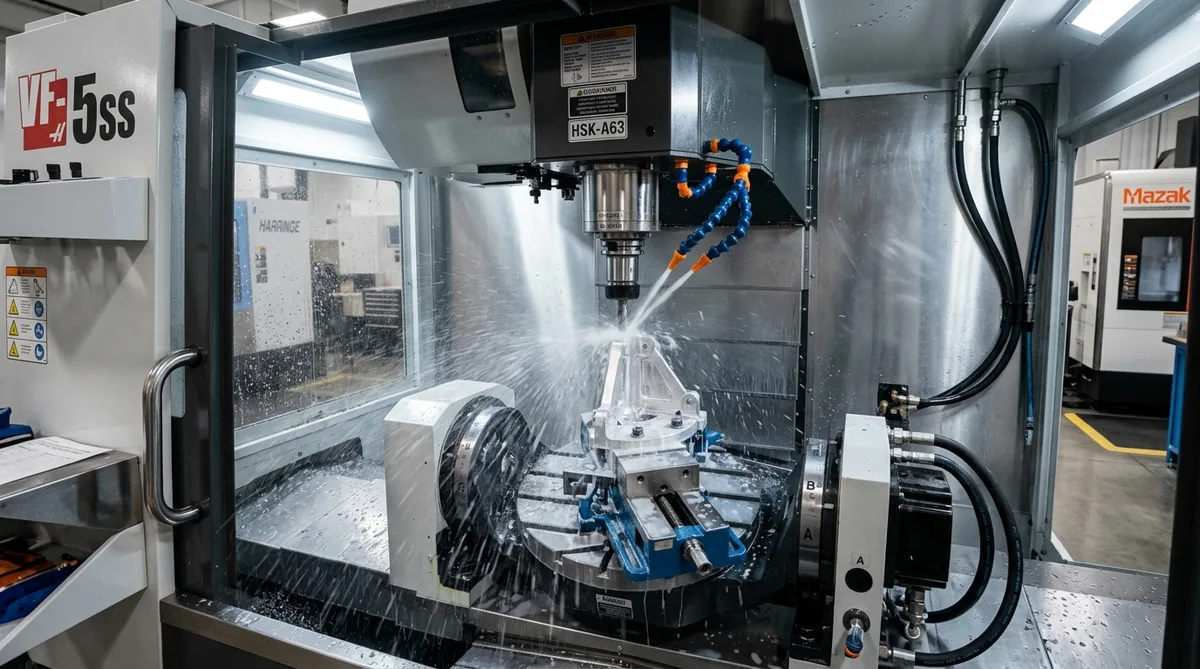

1. Multi-Axis CNC Milling & 5-Axis Simultaneous Machining Centers

Equipped with 13 high-speed 3-axis and 4-axis direct-drive vertical machining centers (VMCs) from Brother, Fanuc, and Mazak for structural brackets, enclosures, and cold plates, paired with simultaneous 5-axis trunnion machining on our AFMING GMU-400 (Heidenhain TNC control) for complex impellers and multi-angle manifolds.

Table 1: In-House 3-Axis, 4-Axis & Simultaneous 5-Axis CNC Milling Centers Specifications (14 Units)
Equipment DescriptionBrand / BuilderModel / SeriesWorking Travel (X / Y / Z)Spindle & ControlAccuracyQty
5-Axis Simultaneous Machining CenterAFMING / TopstarGMU-400Table: Ø450 mm × 350 mm20,000 RPM (HSK-A63) / Heidenhain TNC±0.008 mm (±0.0003″ · Repeatability: ±0.004 mm)1
High-Speed CNC Milling Center (BT30)Brother (Japan)Speedio W1000Zd21,000 × 500 × 380 mm16,000 RPM / CNC-C00 High Speed±0.008 mm (±0.0003″)2
High-Speed CNC Tapping CenterBrother (Japan)Speedio S700Zd1700 × 400 × 300 mm16,000 RPM / 21-Tool ATC±0.008 mm (±0.0003″)5
Precision Vertical Machining Center (4-Axis)Fanuc (Japan)Robodrill α-D21LiB5700 × 400 × 330 mm24,000 RPM / Direct Drive 4th Axis±0.008 mm (±0.0003″ · Repeatability: ±0.004 mm)4
Heavy-Duty Vertical Machining CenterMazak (Japan)VCN-530C1,050 × 530 × 510 mm12,000 RPM (CAT40) / Mazatrol SmoothG±0.008 mm (±0.0003″ · Repeatability: ±0.004 mm)2
MACHINERY CLUSTER 02 · SWISS & TURNING

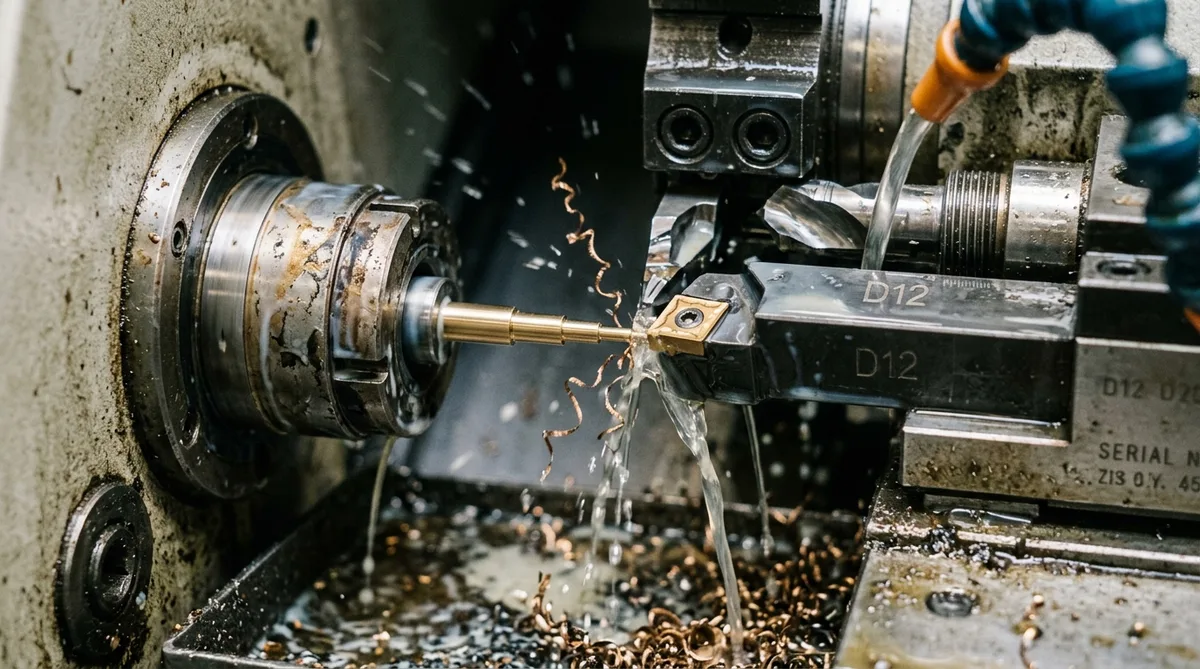

2. Precision CNC Turning Centers & Star Swiss Micro-Machining Screw Lathes

Specialized in micro-turning and high-aspect-ratio shaft machining from Ø0.5 mm to Ø32.0 mm (0.020″–1.25″). Multi-axis STAR Swiss machines utilize synchronized sub-spindles, tungsten carbide guide bushings, and live tooling stations to complete turned-and-milled parts in one clamping setup, holding ±0.005 mm (±0.0002″) on critical journals (±0.010 mm precision fits; ISO 2768-mK general tolerances).

Table 2: CNC Turning Centers & Star Swiss-Type Micro-Machining Lathes Specifications (11 Units)
Equipment DescriptionBrand / BuilderModel / SeriesBar Capacity / EnvelopeTooling & Sub-SpindleAccuracyQty
Swiss-Type Micro-Turning CenterSTAR Micronics (Japan)BS-12-HBar: Ø0.5 – Ø12 mmDual Spindle + Live Cross Drill Stations±0.005 mm (±0.0002″ · Repeatability: ±0.003 mm)2
Swiss-Type Screw Machine (7-Axis)STAR Micronics (Japan)SB-20R Type GBar: Ø2.0 – Ø20 mm7-Axis Sub-Spindle + Full C-Axis + RAY 326 Bar Feeder±0.005 mm (±0.0002″ · Repeatability: ±0.003 mm)2
Swiss-Type Mill-Turn Screw MachineSTAR Micronics (Japan)SR-32JM Type NMax Bar: Ø32 mm (1.25″)Guide Bushing / Non-Guide Convertible + Sub-Spindle±0.005 mm (±0.0002″ · Repeatability: ±0.003 mm)2
Precision CNC Turning CenterSYNTECT-46 Slant BedMax Turn: Ø300 × 550 mm8-Station Hydraulic Tool Turret±0.008 mm (±0.0003″)3
High-Precision CNC LatheTakisawa (Japan)TCC-2000Max Swing: Ø350 × 400 mmHydraulic Collet Chuck + Tailstock±0.008 mm (±0.0003″ · Repeatability: ±0.004 mm)2
MACHINERY CLUSTER 03 · EDM & GRINDING

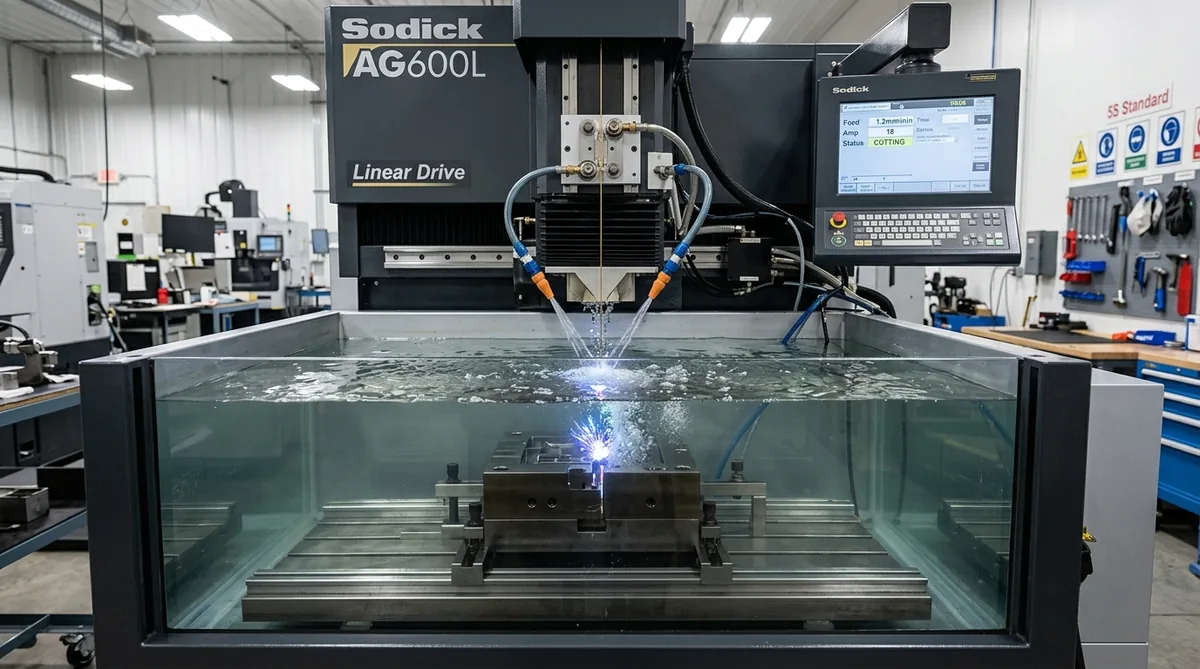

3. Electrical Discharge Machining (EDM) & Ultra-Precision Grinding

Dedicated to hardened tool steels (HRC 55–65), tungsten carbide inserts, delicate keyways, and mirror surface finishes. Sodick linear motor wire EDM eliminates mechanical backlash, executing multi-pass skim cuts to achieve Ra 0.2 μm (8 μin) finishes and tight inside corner radii that rotary tooling cannot produce.

Table 3: Sodick Wire EDM, Makino Sinker EDM & Precision Surface/Cylindrical Grinding Fleet (7 Units)
Process / Equipment TypeBrand / BuilderModel / SeriesWorking Travel (X / Y / Z)Technology & WireAccuracy / FinishQty
Linear Motor Wire Cut EDMSodick (Japan)ALN400Qs400 × 300 × 250 mm0.10 – 0.25 mm Brass / Tungsten Wire±0.005 mm (±0.0002″ · Ra 0.2 μm / 8 μin)3
High-Precision CNC Sinker EDMMakino (Japan)EDNC85800 × 500 × 350 mmHigh-Density Copper / Graphite Electrodes±0.010 mm (±0.0004″ · Ra 0.4 μm / 16 μin)1
Ultra-Precision Surface GrinderOkamoto (Japan)AR-618S600 × 300 × 250 mmDigital Micro-Downfeed 0.001 mm±0.005 mm (±0.0002″ · Ra 0.2 μm / 8 μin)2
Precision Cylindrical GrinderPalmaryODC-3250Max Dia: Ø320 × 500 mmDead / Live Center Precision Grinding±0.005 mm (±0.0002″ · Cylindricity ≤ 0.005 mm)1
MACHINERY CLUSTER 04 · TOOLING & MOLDING

4. Rapid Tooling, Injection Molding Machines & Polyurethane Vacuum Casting

Comprehensive polymer fabrication ranging from RTV-2 silicone vacuum casting (10–50 units) to scientific production injection molding. Fanuc Roboshot all-electric presses (50T–450T) and Haitian Mars servo-hydraulic presses (50T–850T) mold precision optical, medical, and structural thermoplastic components.

Table 4: All-Electric & Servo-Hydraulic Injection Molding Presses (50T–850T) & Vacuum Casting Fleet (20 Units)
Equipment DescriptionBrand / BuilderModel / SeriesClamping Force / Chamber SizeShot Capacity / Thermal ControlTarget MaterialsQty
All-Electric Precision Injection Molding MachinesFanuc (Japan)Roboshot α-S Series50 Ton – 450 Ton RangeClosed-Loop CNC Servo Electric (Shot: 15g – 1,200g)PEEK, Optical PC, PMMA, POM, PA66-GF304
Servo-Hydraulic Injection Molding MachinesHaitian Plastics MachineryMars Series (High-Rigidity)50 Ton – 850 Ton RangeShot Weight: 20g – 2,800gABS, PC, PC/ABS, PA66, POM, TPU/TPE10
High-Temperature Mold Water HeatersShini Plastics TechnologiesSTM High-Temp Mold Water ControllerDual Loop Temperature ModulePID Precision Heating up to 160°CTooling Temperature Stability1
Industrial Water-Cooled ChillersShini Plastics TechnologiesSIC Air/Water Industrial ChillerContinuous Circulation LoopFlow: 250 L/min at 7°C – 15°CCycle Time Optimization1
Industrial Polyurethane Vacuum Casting SystemAS Engineering TechVC-1500 ProChamber: 1,500 × 800 × 800 mm≤ 0.5 mbar Absolute Dual High-Vacuum DegassingPU Resins (ABS-, PC-, PP-, Rubber-Like)2
Forced-Air Thermal Post-Curing OvensAS Thermal SystemsTO-1200Internal: 1,200 × 1,000 × 1,200 mmAmbient to 200°C Uniform AirflowSilicone Molds & PU Degassing2
MACHINERY CLUSTER 05 · SHEET METAL

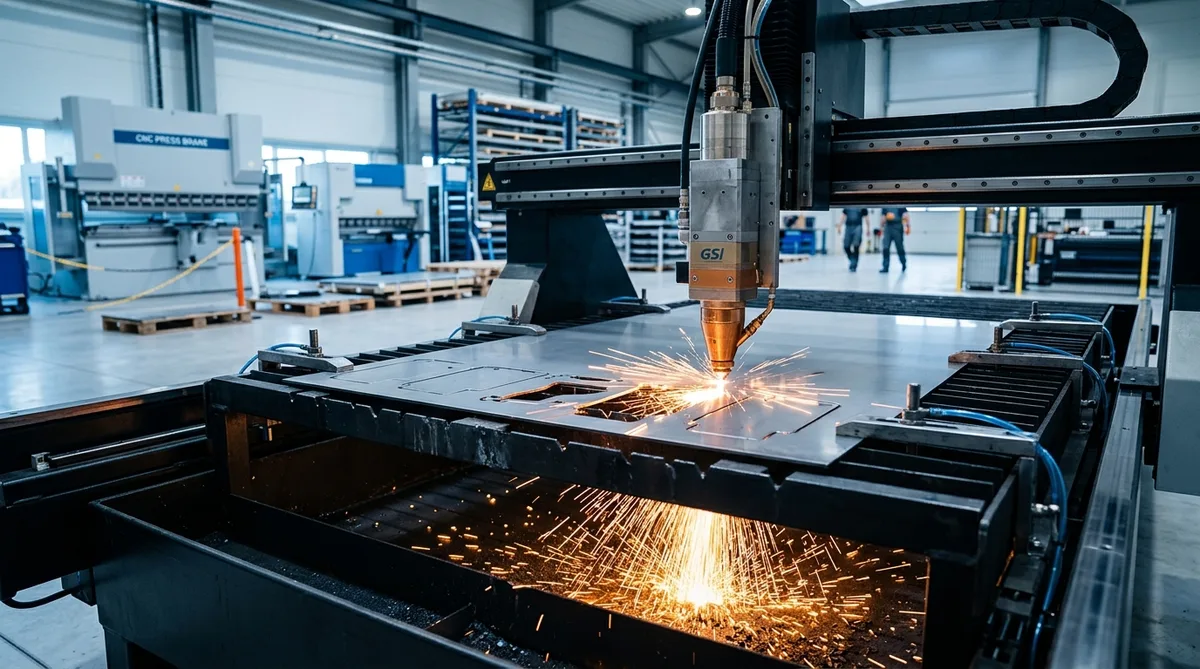

5. Precision Sheet Metal Fabrication, Laser Cutting & CNC Bending Fleet

End-to-end sheet metal prototyping and enclosure fabrication. High-wattage 12kW fiber laser cutting (±0.03 mm gantry positioning) holds ±0.10–0.20 mm (±0.004″–0.008″) finished cut and hole-pitch tolerances, paired with 160-ton CNC press brakes featuring dynamic crowning for ±0.20–0.40 mm linear and ±0.5°–1.0° formed bend tolerances.

Table 5: Fiber Laser Cutting, CNC Hydraulic Press Brake & Sheet Metal Fabrication Fleet (6 Units)
Process / EquipmentBrand / BuilderModel / SpecificationsWorking Bed / TonnageThickness CapacityAccuracyQty
High-Power CNC Fiber Laser CutterBodor / Han’s Laser12,000W / 6,000W Dual Shuttle3,000 × 1,500 mmSteel: 25 mm, SS: 20 mm, Al: 16 mmAxis Positioning: ±0.03 mm (Part Cut Tolerance: ±0.10–0.20 mm)1
CNC Electro-Hydraulic Press BrakeAmada Type / Delem CNC160-Ton Multi-Axis CNCMax Bending Length: 3,200 mmDynamic CNC Crowning CompensationRam Repeatability: ±0.01 mm (Formed Bend Tolerance: ±0.20–0.40 mm, ±0.5°–1.0°)2
Hydraulic Guillotine Shearing MachineYangliQC12Y Heavy DutyMax Cut: 3,200 mm WidthMax Sheet Thickness: 6.0 mmBackgauge: ±0.10 mm (Sheared Blank: ±0.20–0.30 mm)1
Automatic Deburring & Edge RoundingTimesavers TypeDual Wide Belt + Rotary BrushesPassage Width: 1,000 mmConsistent Slag Removal & Edge BreakUniform R0.5 – R1.5 mm2
MACHINERY CLUSTER 06 · 3D PRINTING

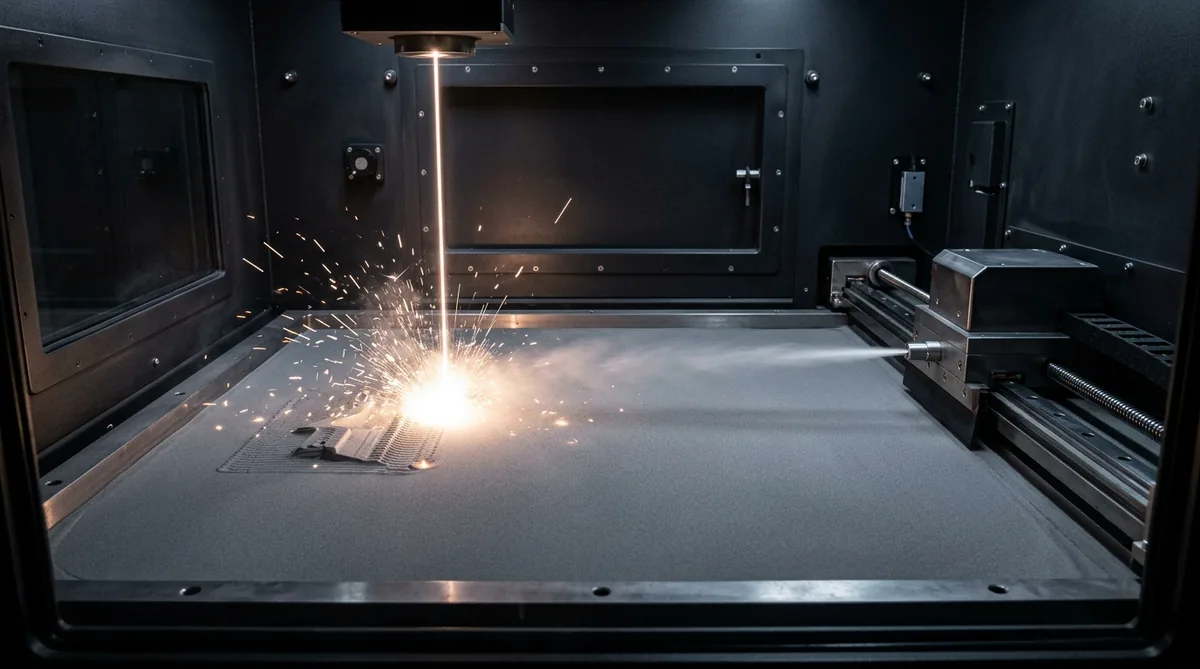

6. Industrial Additive Manufacturing (SLA, 4K Micro-DLP, SLS, HP MJF, DMLS & High-Temp FDM)

Direct additive manufacturing for concept models, micro-connectors, manifolds, and conformal-cooled tooling. Stereolithography (SLA) and 4K Digital Light Processing (DLP) systems build resin prototypes and red-wax mold masters; HP Multi Jet Fusion (MJF), Selective Laser Sintering (SLS), and Fused Deposition Modeling (FDM) produce thermoplastics; and Direct Metal Laser Sintering (DMLS) sinters structural alloys.

Table 6: Industrial Additive Manufacturing Fleet (SLA, 4K Micro-DLP, HP MJF, SLS, DMLS & FDM · 14 Units)
Additive TechnologyBrand / BuilderModel / SeriesBuild Volume (X / Y / Z)Layer Pitch / ResolutionCompatible MaterialsQty
Industrial Stereolithography (SLA)Kings / UnionTechSLA-800 Pro800 × 800 × 550 mm0.05 mm – 0.10 mm (50–100 μm)Tough White Resin, Clear Transparent Resin, High-Temp Resin4
Micro-Nano Digital Light Processing (4K DLP)UnionTech / Industrial 4K DMDMicro-DLP 4K Pro (Dual-Optics)90 × 50 × 100 mm (22–35 μm) / 192 × 108 × 200 mm (50 μm)0.015 mm – 0.025 mm (15–25 μm)Opaque Matte Red Wax (RCP30/R11-Equiv., MD1500), Tan Wax, Castable Wax2
HP Multi Jet Fusion (MJF)HP (Hewlett-Packard)MJF 5200 / 4200380 × 284 × 380 mm0.08 mm (80 μm)PA12 Nylon, PA11, PA12-GB (Glass Bead), Flexible TPU Elastomer2
Selective Laser Sintering (SLS)TPM3D / FarsoonSLS-400 P Series400 × 400 × 450 mm0.08 mm – 0.12 mm (80–120 μm)PA12 (Nylon 12), PA12-GF (Glass-Filled), Flexible TPU2
Direct Metal Laser Sintering (DMLS / SLM)Eplus3D / HBDSLM-280 Dual Laser280 × 280 × 365 mm0.02 mm – 0.05 mm (20–50 μm)Ti-6Al-4V, 316L & 17-4PH Stainless, AlSi10Mg, Inconel 718, MS1 Maraging Steel1
Industrial High-Temp FDM / FFFStratasys / IntamsysFortus 450mc / FUNMAT PRO 410406 × 355 × 406 mm0.127 mm – 0.330 mm (0.005″ – 0.013″)ABS-M30, PC-10, ASA, PA12-CF, ULTEM 9085 / 1010, PEEK2
Automated Chemical Vapor SmoothingAMT / PostProVapor Smoothing CellChamber: 600 × 400 × 400 mmClosed-Loop Solvent FlowPA12, PA11, TPU, ABS Sealing & Injection-Grade Finish1
MACHINERY CLUSTER 07 · METROLOGY & QA

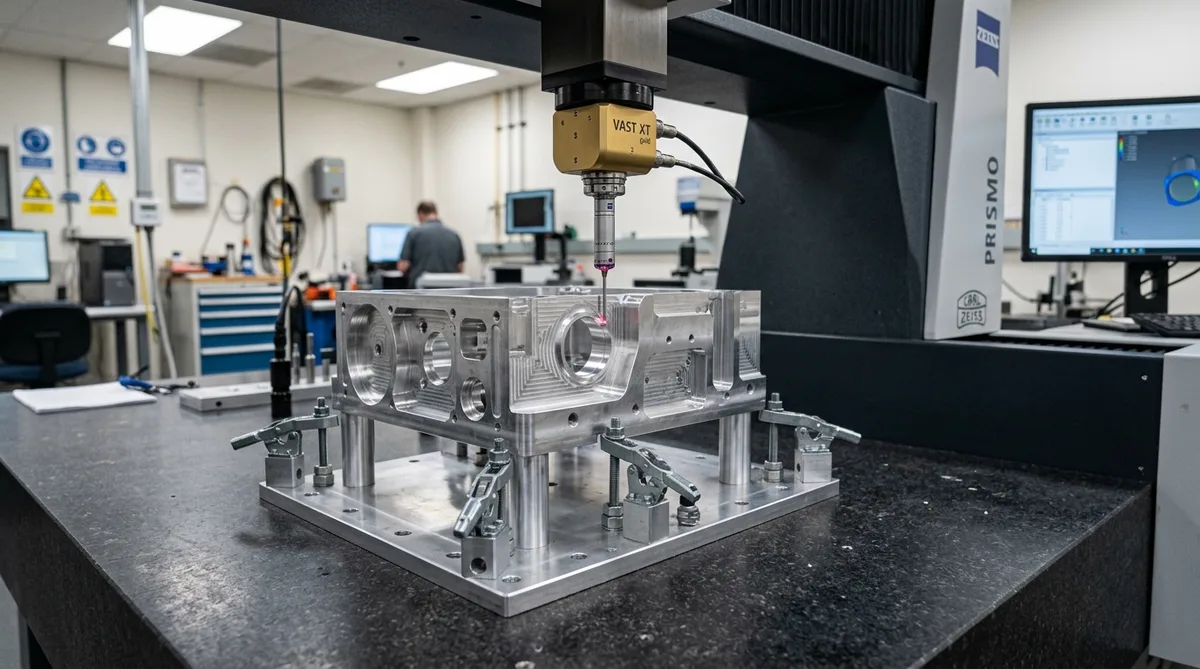

7. Quality Assurance & Metrology Inspection Laboratory (20°C ± 1°C Metrology Lab)

Our dedicated climate-controlled metrology laboratory operates under 24/7 positive pressure and 20°C ± 1°C thermal regulation. Utilizing Zeiss CNC coordinate measuring machines, non-contact optical vision systems, optical comparators, and calibrated electronic height gauges, we provide comprehensive dimensional verification and First Article Inspection (FAI) reports.

Table 7: Climate-Controlled Quality Metrology & Zeiss CMM Inspection Laboratory Instruments (10 Units)
Inspection InstrumentBrand / BuilderModel / SeriesMeasuring RangeResolution & AccuracyInspection ScopeQty
3D CNC Coordinate Measuring Machine (CMM)Zeiss (Germany)Contura / PRISMO800 × 1,000 × 600 mmMPEE = 1.5 + L/350 μm (L in mm)Geometric Dimensioning and Tolerancing (GD&T), true position, CAD comparison1
2.5D Optical Video Measuring System (VMS)VMS Metrology4060 / 4030F Sensor400 × 650 mm Glass StageLinear Accuracy: ±0.003 mm (0.5 μm Scale Resolution)Micro-hole pitch, thin sheet metal & soft elastomer non-contact 2D QC2
Precision Profile Projector / Optical ComparatorESSON OpticsEP-1 System200 × 100 mm Measuring StageStage Accuracy: ±0.005 mm (10×–50× Telecentric Optics)Thread root radius, gear teeth profiles, chamfer verification2
High-Precision Electronic Height GaugeTESA (Switzerland)Micro-Hite 700Max Height: 700 mmRepeatability: ±0.002 mm (0.001 mm Optical Scale Resolution)Step height, bore centerline, flatness reference checking1
Digital Display Height GaugeMitutoyo (Japan)HDS-H30C DigimaticMax Height: 300 mmAccuracy: ±0.03 mm (0.01 mm Digital Resolution)Granite plate workshop inspection and machine set-up1
Digital Rockwell Hardness TesterQicheng InstrumentsA016 Digital IndenterHRA, HRB, HRC (20–70 HRC)±0.5 HRC (0.1 HRC Resolution · ASTM E18)Heat treat quenching, tempering, and case hardening validation1
Portable Surface Roughness TesterMitutoyo (Japan)Surftest SJ-210Ra, Rz, Rq down to 0.01 μm0.01 μm Resolution · 2 μm Diamond Stylus (ISO 4287)Machined, ground, polished, and bead blasted finish verification2
STANDARDS & PROTOCOLS

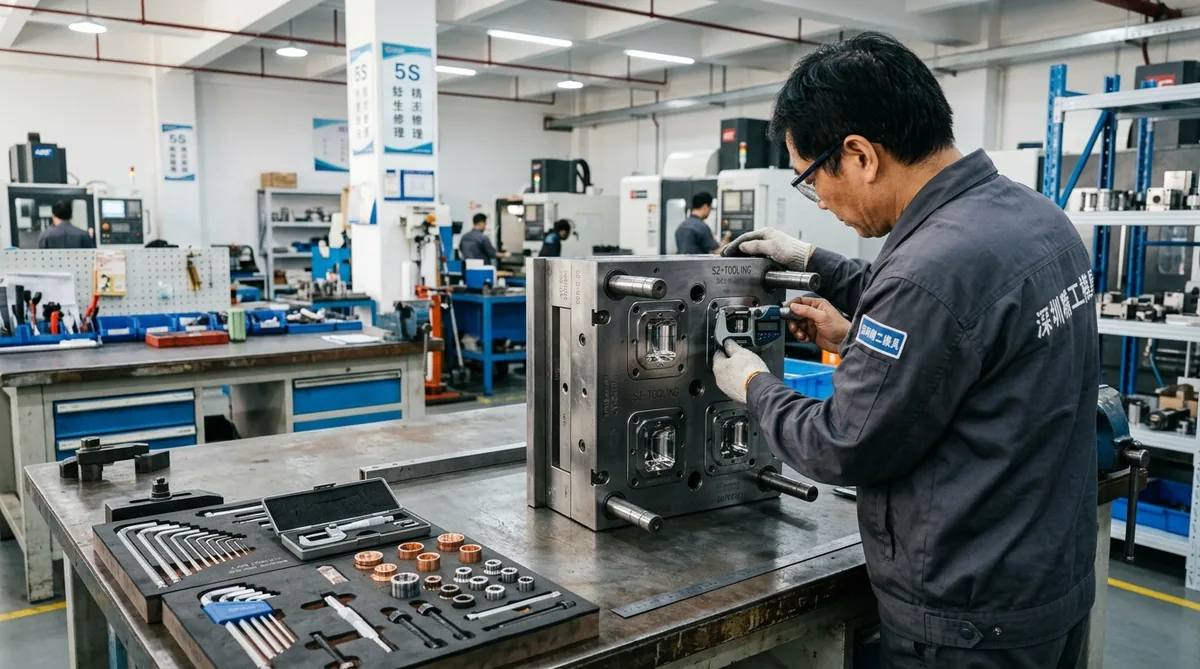

Shopfloor 5S Discipline & Metrology Calibration Protocols

Dimensional accuracy and toolpath repeatability rely on disciplined shopfloor climate management, scheduled instrument calibration, and standardized first-article inspection procedures across every single production batch.

20°C ± 1°C METROLOGY LAB

Climate-Controlled Metrology Environment

Our dedicated CMM inspection lab is isolated with pneumatic vibration dampers, positive air pressure, and constant thermal regulation at 20°C ± 1°C (45–60% RH) to eliminate thermal expansion measurement discrepancies.

TRACEABLE CALIBRATION

Scheduled Calibration Rigor

All granite surface plates, digital micrometers, bore gauges, optical scales, and CMM ruby styli undergo semi-annual independent calibration traceable to national metrology standards via accredited calibration laboratories.

DIMENSIONAL FAI PROTOCOLS

First Article Inspection (FAI)

Every production run requires senior QC sign-off on the first off-tool component before batch release. Full ballooned engineering drawings and Dimensional FAI inspection reports are available upon request.

AUTHENTIC MTR VERIFICATION

Raw Material Traceability

Raw metal ingots, bar stock, and sheet plates are verified against authentic Mill Test Reports (MTR) with chemical composition and mechanical tensile verification to prevent material substitution.

CAPACITY & AUDIT FAQ

Frequently Asked Questions Regarding Factory Capacity & Machinery

Technical specifications, facility auditing options, and lead times for prototype and production manufacturing.

Can prospective clients or independent inspectors audit the AS Prototypes facility?

Yes, absolutely. We welcome on-site client audits and independent inspection agencies (SGS, TÜV, Bureau Veritas) at our Shenzhen facility. We also provide real-time video facility walkthroughs and live CMM inspection demonstrations for overseas procurement teams.

What are the maximum and minimum part dimensions your equipment can fabricate?

Star Swiss lathes machine Ø0.5–32.0 mm (0.020″–1.25″) bar stock (stepped tips down to Ø0.20 mm / 0.008″), while CNC turning centers handle Ø350 × 400 mm (Takisawa TCC-2000) and Ø300 × 550 mm (SYNTEC T-46). Milling reaches 1,050 × 530 × 510 mm (3-axis) and Ø450 × 350 mm (5-axis), laser beds cut 3,000 × 1,500 mm sheets, and 50T–850T presses mold thermoplastics.

How do you prevent machine drift and maintain tight tolerances during 24/7 continuous operation?

All critical machines feature optical linear glass scales and thermal spindle compensation. Machinists use Renishaw in-situ touch probes to re-datum fixtures and check tool wear regularly, ensuring sustained ±0.010 mm (±0.0004″) dimensional consistency across multi-day production runs.

How fast can AS Prototypes set up tooling and machine expedited prototype parts?

We reserve dedicated high-speed machining centers and Swiss lathes for agile prototyping. Following engineering CAD review and Design for Manufacturability (DFM) feedback within 24 hours, rapid prototype parts ship within 4 to 8 business days ex-factory (excluding 3–5 business days DHL/FedEx/UPS international air transit).
