Automotive CNC Machining Services & EV Part Prototyping
Our in-house Computer Numerical Control (CNC) shop delivers automotive CNC machining services, High-Pressure Die Casting (HPDC) post-milling, cylindrical grinding, and optical polymer fabrication for Electric Vehicle (EV) teams. From 6061-T6 cold plates and C11000 copper busbars to 7075-T651 steering knuckles, we bridge A-sample validation to pilot production within ±0.010 mm (±0.0004″).

4-Stage Automotive A-Sample, B-Sample & Pilot Execution
A structured automotive hardware workflow bridging billet CNC prototypes into die-cast, laser-formed, and injection-molded assemblies. All schedules denote ex-factory production and inspection turnaround (separate from 3–5 business days DHL/FedEx/UPS air transit).
Thermal, Casting & GD&T Audit
Response: Within 24 HoursDesign for Manufacturability (DFM) and Geometric Dimensioning and Tolerancing (GD&T) review covering cold-plate O-ring glands, die-casting draft angles, 0.3–0.6 mm post-machining stock, spline profiles, and DIN 6935 busbar bend radii.
- ✓ O-ring gland squeeze & flatness check
- ✓ Billet-to-casting transition DFM
- ✓ Datum A-B-C fixture architecture
Billet CNC Mule & Dyno Prototypes
Ex-Factory: 4 – 8 Business DaysRapid 3-axis and 4-axis vertical machining center (VMC) billet milling—plus 5-axis trunnion machining for compound knuckles—of 6061-T6 cold plates, 7075-T651 mounts, and inverter housings for dyno rigs and test mules.
- ✓ 1 to 15 as-machined A-sample builds
- ✓ 6.0-bar (87 psi) pressure-decay leak test
- ✓ Zeiss Coordinate Measuring Machine (CMM) check
Surface-Finished & Ground Validation
Ex-Factory: 7 – 12 Business DaysFunctional B-sample builds (15–100 units) integrating cylindrical-ground 4140 splined shafts, epoxy-insulated C11000 busbars, diamond-cut polymethyl methacrylate (PMMA) Daytime Running Light (DRL) waveguides, and polyurethane vacuum-cast cockpit trim.
- ✓ MIL-A-8625 anodizing & ASTM B117 finishes
- ✓ Selective terminal plating & epoxy coating
- ✓ Ballooned First Article Inspection (FAI)
Bridge Tooling & Die-Cast Post-CNC
Ex-Factory: 12 – 35 Business DaysRapid aluminum soft molds (12–18 business days T1) and steel HPDC or multi-cavity injection bridge tooling (18–35 business days), paired with 4-axis rotary VMC post-machining of sealing faces and bores.
- ✓ 50T–850T Fanuc & Haitian press runs
- ✓ Dedicated pneumatic/hydraulic VMC fixtures
- ✓ CNC pilot batches in 7–30 business days
Precision Automotive & EV Hardware Component Showcase
Electrified powertrain, drivetrain, chassis, and Advanced Driver-Assistance Systems (ADAS) components matched to optimal in-house equipment—combining ISO 2768-mK general tolerances on non-critical walls with micron-level critical fits where assemblies seal or rotate.
EV Battery & SiC Inverter Liquid Cold Plates
High-conductivity 6061-T6 aluminum cooling plates for silicon carbide (SiC) inverters and battery packs, milled on Brother and Mazak 3-axis VMCs with continuous serpentine fluid channels, rounded 180° flow splitters, closed-loop O-ring grooves inside perimeter bolt circles, and threaded coolant ports.

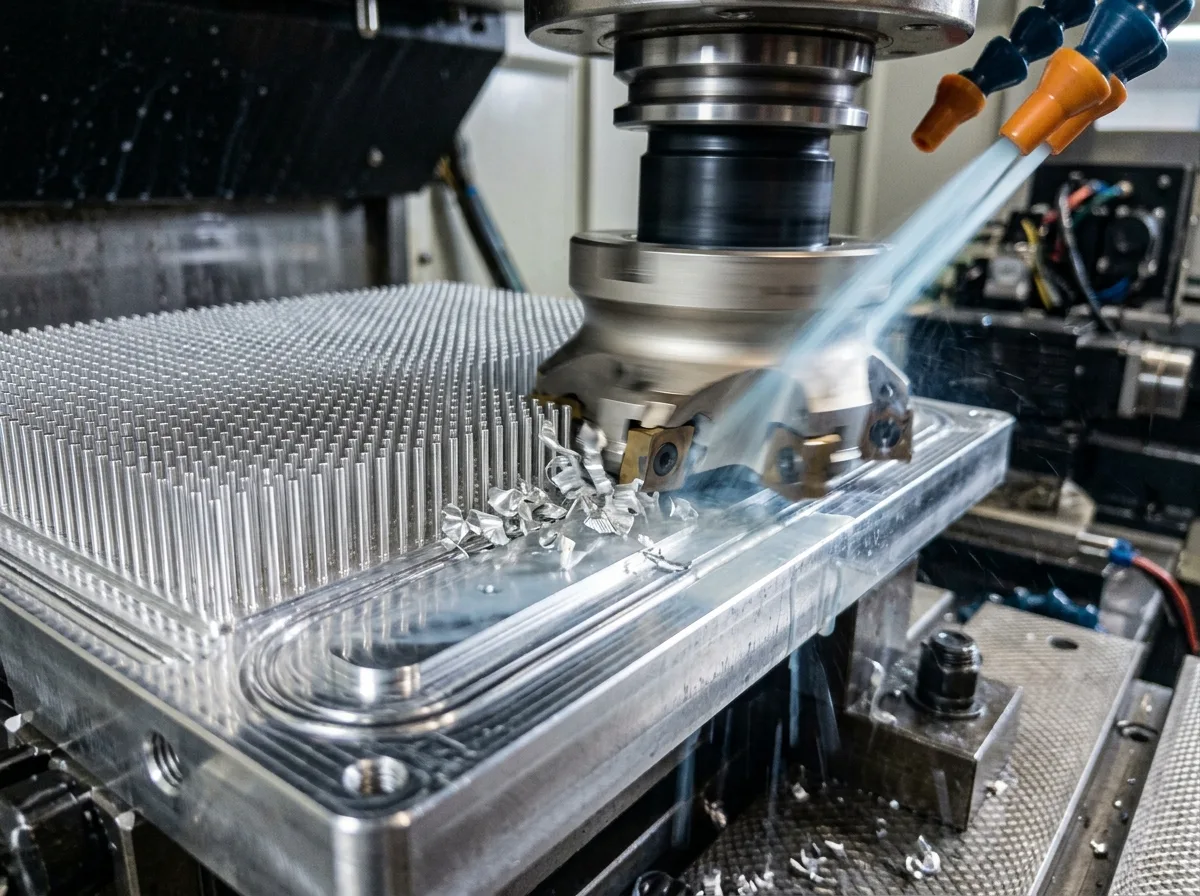

e-Drive Inverter & OBC Castings + Post-CNC
A380/ADC12 die-cast and 6061-T6 billet inverter and On-Board Charger (OBC) housings featuring external cooling ribs, 0.3–0.6 mm controlled post-CNC skimming to preserve dense cast skins, fly-cut gasket flanges, and H7 connector bores.
Splined Drivetrain Shafts & Coupling Hubs
Quenched-and-tempered 4140 (42CrMo4) flanged transmission stub shafts with induction-hardened cylindrical-ground bearing journals, DIN 509 relief undercuts, and external involute splines, mated with Sodick Electrical Discharge Machining (EDM) 17-4PH internal spline hubs.
High-Voltage Copper Busbars & Pack Brackets
Heavy-gauge 3.0 mm C11000 electrolytic copper EV interconnect busbars formed with concentric CNC press-brake inner bend radii (R ≥ 1.0t), orange epoxy dielectric powder insulation, and nickel-plated terminals, beside 2.0 mm 5052-H32 module brackets with clinch nuts.
5-Axis Billet Steering Knuckles & LiDAR Mounts
Simultaneous 5-axis CNC-machined 7075-T651 billet aluminum suspension steering knuckles (up to Ø450 × 350 mm on AFMING GMU-400) and ADAS roof Light Detection and Ranging (LiDAR) mounts featuring truss weight-reduction pockets, caliper lugs, and masked H7 wheel-hub bores.

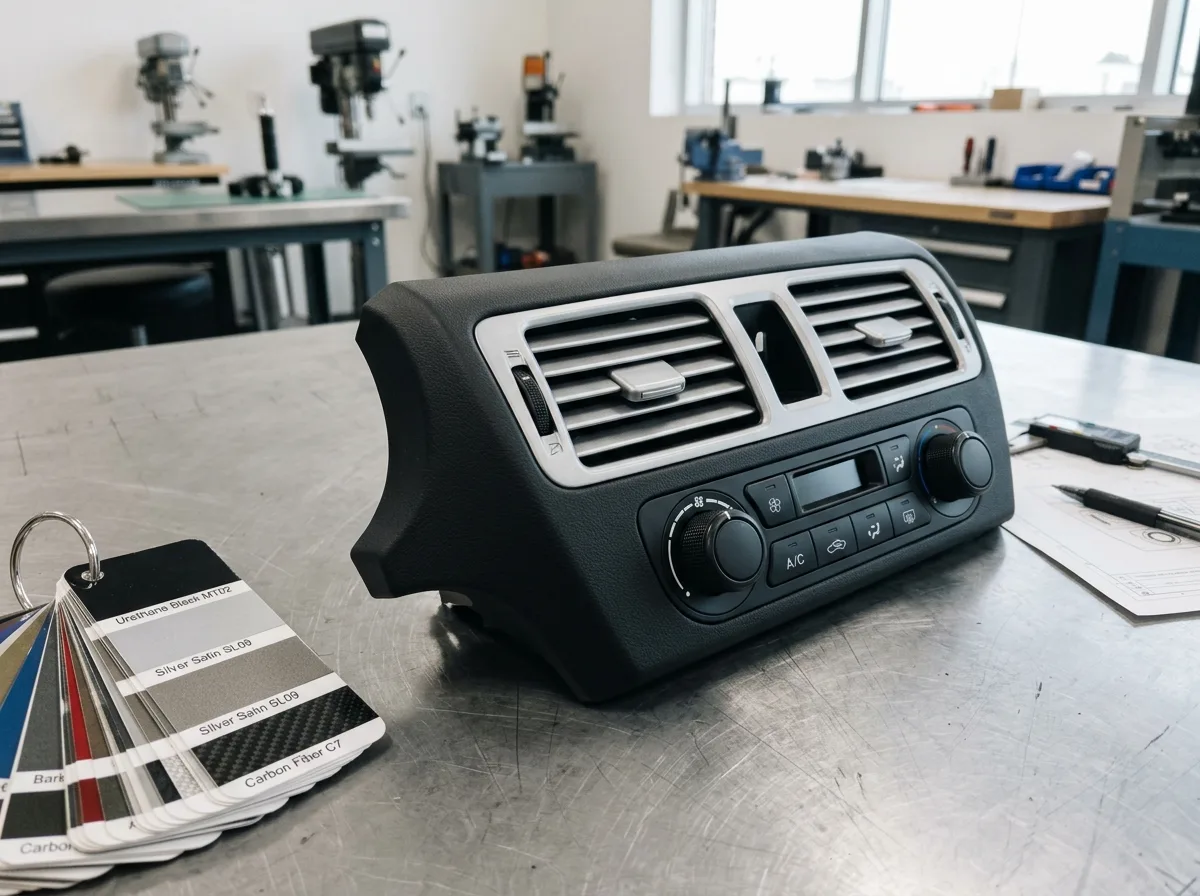

PMMA DRL Light Guides & Cockpit Trim
Crystal-clear optical PMMA DRL waveguides finished via 70–80 °C stress-relief annealing and monocrystalline diamond cutting/buffing to preserve sharp Total Internal Reflection (TIR) prism teeth, paired with polyurethane vacuum-cast matte-black dashboard air vents.
Full-Vehicle Prototyping & EV Powertrain Ecosystem
Consolidating CNC thermal plates, hardened drivetrain shafts, high-voltage copper busbars, and optical polymers under one roof eliminates datum handoff errors across A-sample and B-sample vehicle builds.
3/4-Axis VMC Workhorses & 5-Axis
Brother, Fanuc, and Mazak 3-axis and 4-axis VMCs handle 75–85% of prismatic 6061-T6 cold plates and A380 inverter castings economically, while our AFMING GMU-400 5-axis trunnion mill tackles compound-angle 7075-T651 knuckles.
⏥ 0.030 mm / 100 mm Flange Flatness & 6.0-Bar Leak TestDrivetrain Grinding & EV Busbars
Palmary cylindrical grinding and Sodick Wire EDM (1 rough + 3–4 skim cuts) finish hardened 4140/17-4PH splines alongside Bodor fiber-laser cut, Amada CNC-bent, nickel-plated, and epoxy-coated C11000 copper busbars.
Ø25 k5 Ground Journals & Dielectric Epoxy BusbarsSplit-Track Optics & Bridge Tooling
70–80 °C annealed diamond-cut PMMA DRL waveguides and 110–120 °C annealed dichloromethane (DCM) vapor-polished polycarbonate (PC) lenses pair with RTV-2 vacuum casting and 50T–850T Fanuc/Haitian injection molding for cabin trim.
SPI A-1 Optical Clarity & 12–35 Day Ex-Factory ToolingWhy Partner Directly With an In-House Automotive Facility Over Aggregators?
Direct shop-floor control prevents coolant leaks, datum shifts, and optical prism damage when transitioning EV powertrain, chassis, and ADAS hardware from billet prototypes to bridge tooling.
| Manufacturing Vector | Automated Outsourcing Marketplaces | AS Prototypes (82-System In-House Facility) |
|---|---|---|
| EV Cold Plate Leak Integrity | Shipped as-milled without pressure verification; O-ring groove tool chatter triggers glycol leaks on dyno test stands. | Fly-Cut Lands & 6.0-Bar Leak Test: Closed-loop O-ring grooves or capillary vacuum-brazed covers pressure-verified before dispatch. |
| Billet-to-Casting Bridge | Disconnected shops for CNC prototypes and die castings force full fixture re-engineering between A-samples and B-samples. | Unified 4-Axis VMC Fixturing: We mill 6061-T6 billet A-samples and post-machine A380 die-cast B/C-samples on matched Fanuc 4th-axis setups. |
| High-Voltage Busbar Finishing | General sheet metal vendors lack selective terminal electroplating and controlled dielectric epoxy insulation workflows. | Turnkey Insulated C11000 Busbars: Concentric press-brake inner radii (R ≥ 1.0t) with masked nickel/silver pads and 0.4–0.8 mm orange epoxy. |
| Optical Headlamp Waveguides | Generic shops misapply solvent vapor polishing to PMMA, rounding off crisp TIR prism peaks and inducing stress crazing. | Split-Track Polymer Optics: 70–80 °C annealed diamond-cut/buffed PMMA (SPI A-1, zero DCM vapor) vs. 110–120 °C annealed vapor-polished PC. |
| Vehicle Mule Confidentiality | Unreleased EV powertrain, battery pack, and ADAS bracket CAD assemblies distributed across open bidding networks. | Direct Bilateral NDA: Closed-network CAM programming and physical shop-floor access control safeguard pre-release vehicle programs. |
| Axis Economics & Costing | Algorithmic quoting inflates unit cost on prismatic cold plates and adds multi-tier platform markups. | Right-Sized Machine Allocation: Prismatic parts run on fast 3/4-axis VMCs while 5-axis is reserved for compound geometry—zero platform markups. |
Automotive Material Selection & Precision Tolerances Matrix
Verified mechanical, thermal, electrical, and optical properties paired with shop-floor tolerances and application selection rules across core automotive and EV materials.

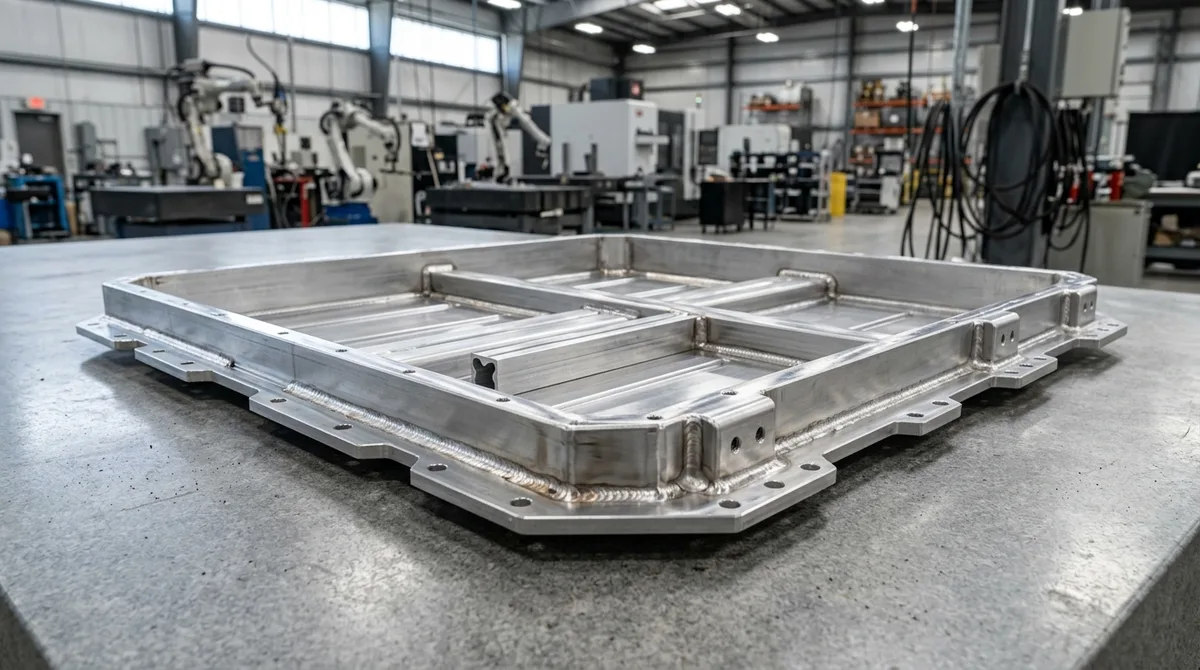

| Material Designation | Category & Process | Tensile / Thermal / Optical Spec | Surface & Thermal Process Rule | Achievable Tolerance (mm / in) | Recommended Application / When to Choose |
|---|---|---|---|---|---|
| Aluminum 6061-T6 / A380 Wrought Billet & HPDC Alloy | 3/4-Axis VMC & HPDC Post-CNC | 310 MPa (45.0 ksi) · k = 167 W/(m·K) (6061) | SurTec 650 Conductive · 150–165 °C Stress Relief · 0.3–0.6 mm Cast Skin Cut | ±0.010 mm (±0.0004″)Critical / ISO 2768-mK General | Best for EV battery/SiC inverter liquid cold plates, e-drive motor housings, and weldable structural trays. |
| Aluminum 7075-T651 Pre-Stretched Structural Billet | 3/4/5-Axis High-Load Milling | 572 / 503 MPa (83.0 / 73.0 ksi) | MIL-A-8625 Type III (50 μm, 450–550 HV0.05) · Stress Relief ≤ 100–110 °C | ±0.010 mm (±0.0004″)Masked H7 Bores / ISO 2768-mK | Best for high-load 5-axis steering knuckles, caliper brackets, and LiDAR mounts; avoid fusion welding or sharp cold bends. |
| Alloy Steel 4140 & 17-4PH Hardened, Ground & Wire-EDM | Turning, Grinding & Sodick EDM | 950–1,080 MPa (4140 Q&T) · 1,310 MPa (17-4PH) | 52–56 HRC Induction Journals · Ra 0.2 μm (8 μin) · 3–4 EDM Skim Cuts | ±0.005 mm (±0.0002″)Ground Journals & EDM Splines | Best for flanged involute spline shafts, bevel gear blanks, hydraulic spools, and through-cut internal spline hubs. |
| Pure Copper C11000 Electrolytic Tough Pitch Strip | Laser Cut, CNC Bend & Milling | 220–250 MPa (32–36 ksi) · 100–101% IACS | Inner Radius R ≥ 1.0t · Masked Nickel/Silver Plate + 0.4–0.8 mm Orange Epoxy | ±0.10–0.20 mm (±0.004″–0.008″)Laser Pitch / ±0.20–0.40 mm Bend | Best for 400V–800V EV battery pack busbars, SiC inverter DC-link bars, and high-current charging port terminals. |
| Optical PMMA (Acrylic) UV-Stable Waveguide Polymer | Diamond Optical CNC & Buffing | 92% Luminous Transmittance · Heat Deflection Temperature (HDT) ~95 °C | 70–80 °C Annealed · Diamond-Cut / #800–#5000 Buffed SPI A-1 (No DCM Vapor) | ±0.015 mm (±0.0006″)Critical Facets / ISO 2768-mK | Best for DRL stepped TIR prism light guides, thick-wall collimating lenses, and interior ambient light pipes. |
| Optical Polycarbonate (PC) High-Impact Optical Glazing | Optical CNC & Vapor Polishing | 88–89% Transmittance · Tg 147 °C · High Impact | 110–120 °C Stress-Relief Annealing + Controlled DCM Vapor Polishing | ±0.020 mm (±0.0008″)Critical / ISO 2768-mK General | Best for shatter-resistant headlamp outer covers, ADAS LiDAR protective windows, and high-heat optical housings. |

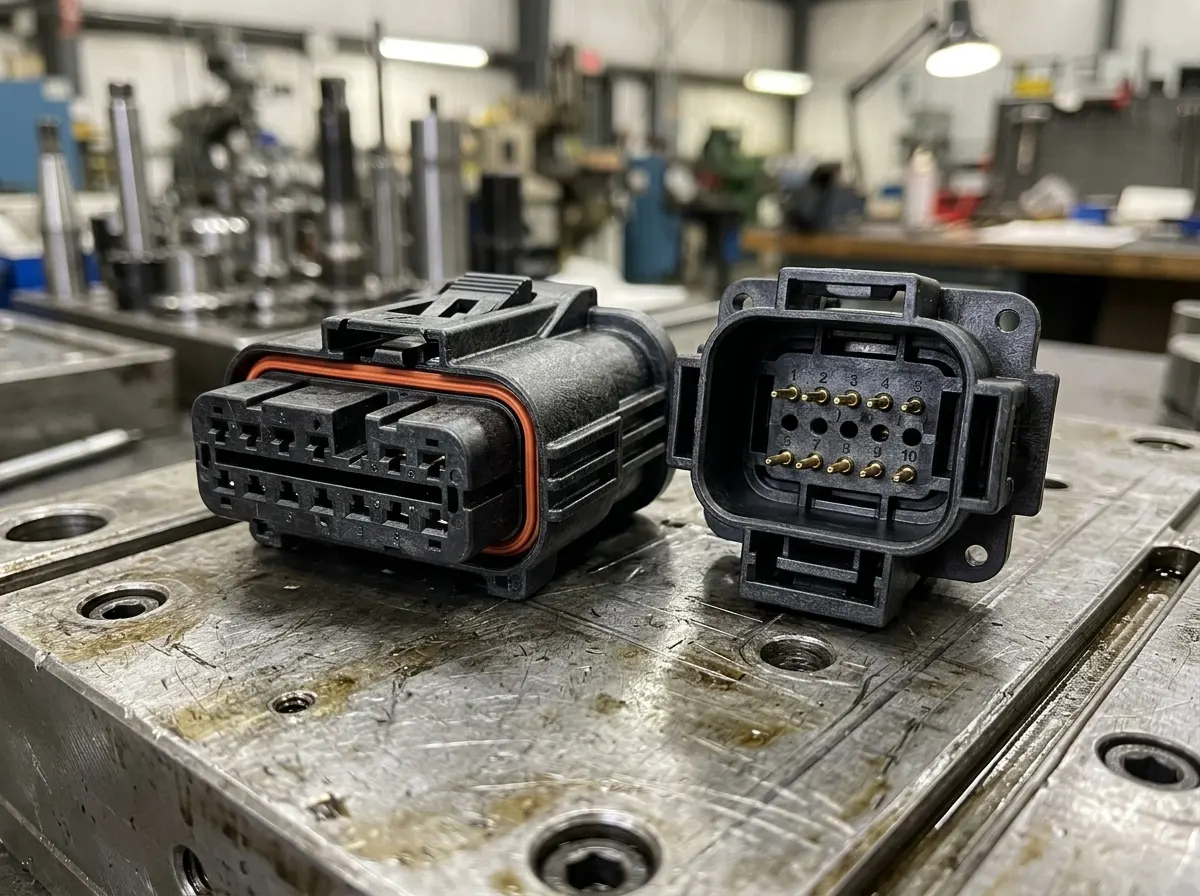

| PA66-GF30 & PC/ABS Glass-Filled Nylon & Cabin Blend | 50T–850T Injection Molding & CNC | 185 MPa (26.8 ksi) · 240–250 °C HDT @ 1.8 MPa (PA66-GF30) | Glycol/Oil Resistant · VDI 3400 Texture (+1.0°–1.5° Draft / 0.025 mm Depth) | ISO 20457 / DIN 16742Molded / ±0.050 mm Machined | Best for under-hood coolant impellers and HV connector shells (PA66-GF30) or matte cockpit HVAC vents (PC/ABS). |
Empirical Quality Verification & Automotive Process Physics
From 3.5–6.0 bar cold-plate leak testing to 20 °C ± 1 °C Zeiss CMM verification and split-track optical finishing, every automotive prototype follows strict shop-floor process controls.

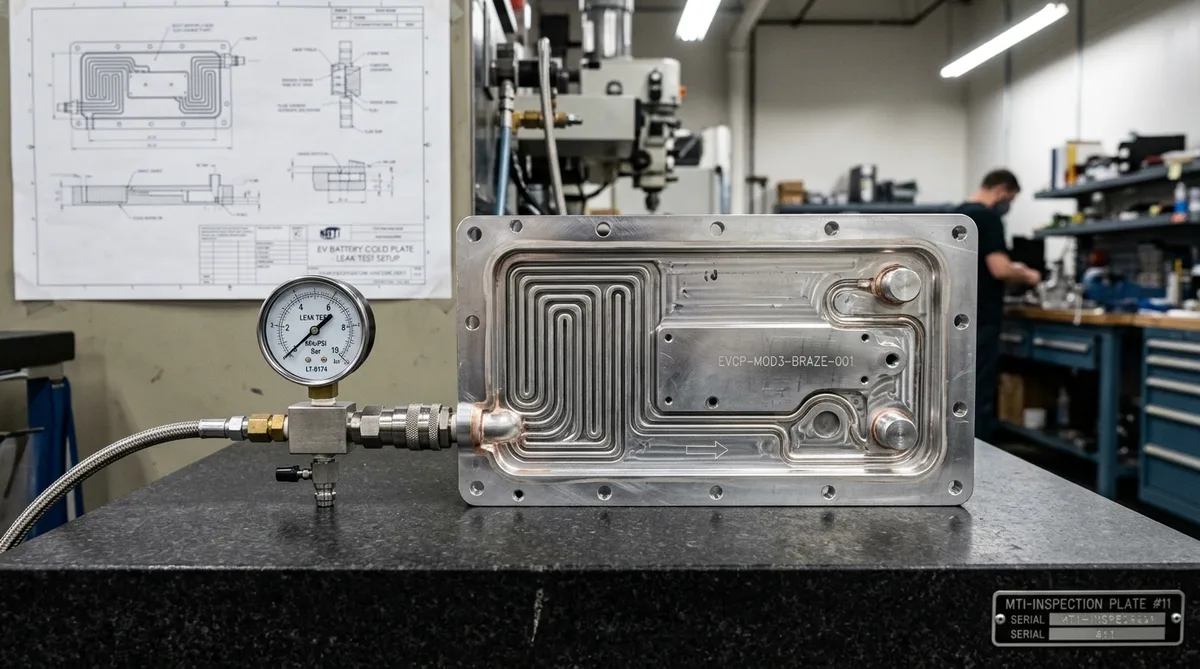

Pressure-Decay Cold Plate Testing
In our in-house CNC shop, 6061-T6 cold plates undergo 150–165 °C stress relief before fly-cutting sealing lands (Vc ≈ 300–400 m/min), then clamp onto acrylic manifolds at 3.5–6.0 bar (51–87 psi) to verify zero pressure decay.
- ✓ ⏥ 0.030 mm / 100 mm fly-cut flange flatness
- ✓ Continuous closed-loop O-ring glands
- ✓ Deionized ultrasonic chip-free flushing
20 °C ± 1 °C Zeiss CMM & Spline QC
Inside our 20 °C ± 1 °C metrology lab, a Zeiss Contura bridge CMM, ESSON profile projectors, and Mitutoyo SJ-210 (ISO 4287) roughness testers verify Ø65 H7 hub bores, Ø25 k5 ground journals, and involute spline flanks.
- ✓ Ballooned First Article Inspection (FAI)
- ✓ Radial runout ≤ 0.005 mm (0.0002″)
- ✓ Calibrated Go/No-Go spline & thread plugs
Busbar Bend & Sheet Grain Physics
We bend 2.0–6.0 mm C11000 copper busbars at inner radii R ≥ 1.0t and pair them with 5052-H32 brackets (avoiding brittle 6061-T6 bends < 3.0t), followed by edge deburring (≤ 0.03 mm) and 0.4–0.8 mm dielectric orange epoxy coating.
- ✓ Masked sulfamate nickel/silver terminals
- ✓ 2.5D Optical Video Measuring System (VMS) QC
- ✓ Coating thickness & masking boundary check
Split-Track PMMA vs. PC Finishing
To prevent prism-peak rounding and solvent crazing, PMMA DRL light guides receive 70–80 °C annealing plus diamond cutting and #800–#5000 buffing (never DCM vapor), whereas PC lenses undergo 110–120 °C annealing before DCM vapor polishing.
- ✓ Ra ≤ 0.02 μm (SPI A-1) TIR prism facets
- ✓ Non-contact 2.5D Optical VMS inspection
- ✓ Traceable MTR & resin lot documentation
Frequently Asked Questions: Automotive & EV Prototyping
Direct engineering answers on EV liquid cold-plate leak prevention, billet-to-casting transitions, high-voltage copper busbars, and ex-factory turnaround schedules.
How do you prevent coolant leaks on CNC-machined EV battery and SiC inverter liquid cold plates?
We mill continuous serpentine channels in 6061-T6 aluminum on 3-axis VMCs, fly-cut sealing lands to 0.030 mm per 100 mm flatness, and seal covers via closed-loop O-ring grooves or capillary vacuum brazing. Every cold plate passes 3.5–6.0 bar (51–87 psi) pressure-decay leak testing before dispatch.
How do you transition A380/ADC12 electric drive inverter housings from billet A-samples to die-cast B/C-samples?
For early A-sample validation, we mill inverter housings from 6061-T651 billet on 3-axis and 4-axis VMCs to bypass tooling delays. Once geometry freezes for B/C-samples, we produce A380/ADC12 die castings and post-mill sealing faces and H7 bores on Fanuc 4-axis rotary VMCs with 0.3–0.6 mm skin allowances.
How are high-voltage C11000 copper EV battery busbars formed and insulated without cracking?
We fiber-laser cut and CNC press-brake bend C11000 electrolytic copper strips with concentric inner radii (R ≥ 1.0t per DIN 6935) to prevent outer-grain micro-cracking. Bolted terminal pads receive masked nickel or silver plating, while the central trunk receives 0.4–0.8 mm orange dielectric epoxy powder insulation.
What are the standard production lead times for automotive A-sample, B-sample, and bridge-tooled builds?
DFM reviews return within 24 hours, as-machined CNC or 3D-printed A-samples ship in 4–8 business days ex-factory, and finished B-samples take 7–12 business days. CNC batches require 7–30 business days and rapid tooling takes 12–35 business days ex-factory, excluding 3–5 days DHL/FedEx/UPS air transit.
Ready to Prototype or Scale Your Automotive Hardware?
Upload your 3D CAD models (STEP, IGES, X_T, or SolidWorks) and 2D GD&T tolerance drawings for a comprehensive manufacturability review, datum-locking fixture strategy, and custom production quotation.
