CONSUMER ELECTRONICS & SMART APPLIANCE HARDWARE

Electronic Appliance CNC Machining & Device Enclosures

Our in-house electronic appliance CNC machining facility fabricates custom 6061-T6 unibody enclosures, skived C11000 copper heatsinks, Electromagnetic Interference (EMI) shields, and overmolded housings. Using Computer Numerical Control (CNC) milling, Star Swiss turning, and bridge tooling, we scale hardware through Engineering, Design, and Production Verification Testing (EVT, DVT, and PVT).

✓ Class-A Bead-Blasted MIL-A-8625 Anodizing ✓ C11000 ETP Copper & 6063-T5 Thermal Modules ✓ Selective SurTec 650 EMI/RFI Grounding ✓ Diamond-Cut Bevels & SPDT PMMA Light Guides ✓ EVT / DVT / PVT Phase-Gate Scalability
• Design for Manufacturability (DFM) Review Within 24 Hours • Strict Bilateral NDA Assured • Complete Raw Material Test Reports (MTR)
3-axis CNC milled 6061-T6 aluminum device chassis, skived C11000 copper heatsink, and vapor-polished clear polycarbonate cover
In-House Multi-Process Electronics Hardware: High-speed 3-axis CNC milled 6061-T6 aluminum chassis with Radio Frequency (RF) isolation pockets and Printed Circuit Board (PCB) standoffs (±0.010 mm / ±0.0004″ boss pitch), paired with a skived C11000 copper heatsink and vapor-polished polycarbonate cover.
DEVELOPMENT LIFECYCLE

4-Stage Electronics EVT, DVT & PVT Prototyping Lifecycle

A phase-gate manufacturing workflow engineered to eliminate PCB fitment interference, thermal throttling, and cosmetic defects. All turnaround windows denote ex-factory production and inspection completion, strictly separate from 3–5 business days DHL, FedEx, or UPS international air transit.

STAGE 01 · DFM

CAD Tolerance & Thermal DFM Audit

Response: Within 24 Hours

Line-item evaluation of thin-wall enclosure deflection, PCB standoff alignment, snap-fit undercut shut-offs, and selective EMI masking boundaries before cutting metal.

STAGE 02 · EVT

Engineering Verification Prototypes

Ex-Factory: 4 – 8 Business Days

Rapid 3-axis CNC milling of uncoated 6061-T6 housings, C11000 electrolytic copper heatsinks, and Stereolithography (SLA) or Multi Jet Fusion (MJF) enclosures for Printed Circuit Board Assembly (PCBA) bring-up.

  • ✓ 1 to 20 functional EVT sub-assemblies
  • ✓ PCBA boss & I/O port fitment check
  • ✓ Verified Raw Material Test Reports (MTR)
STAGE 03 · DVT

Design Verification & Cosmetic Builds

Ex-Factory: 7 – 12 Business Days

Pre-production batches (20–100 units) finished with #120/#180 glass-bead blasting, MIL-A-8625 Type II color anodizing, diamond-cut chamfers, and stamped EMI shielding cans.

  • ✓ Drop-test & IP67 gasket compression check
  • ✓ Conductive SurTec 650 EMI pad masking
  • ✓ Diamond-buffed optical PMMA light pipes
STAGE 04 · PVT

Bridge Tooling & Mass Production

Ex-Factory: 12 – 35 Business Days

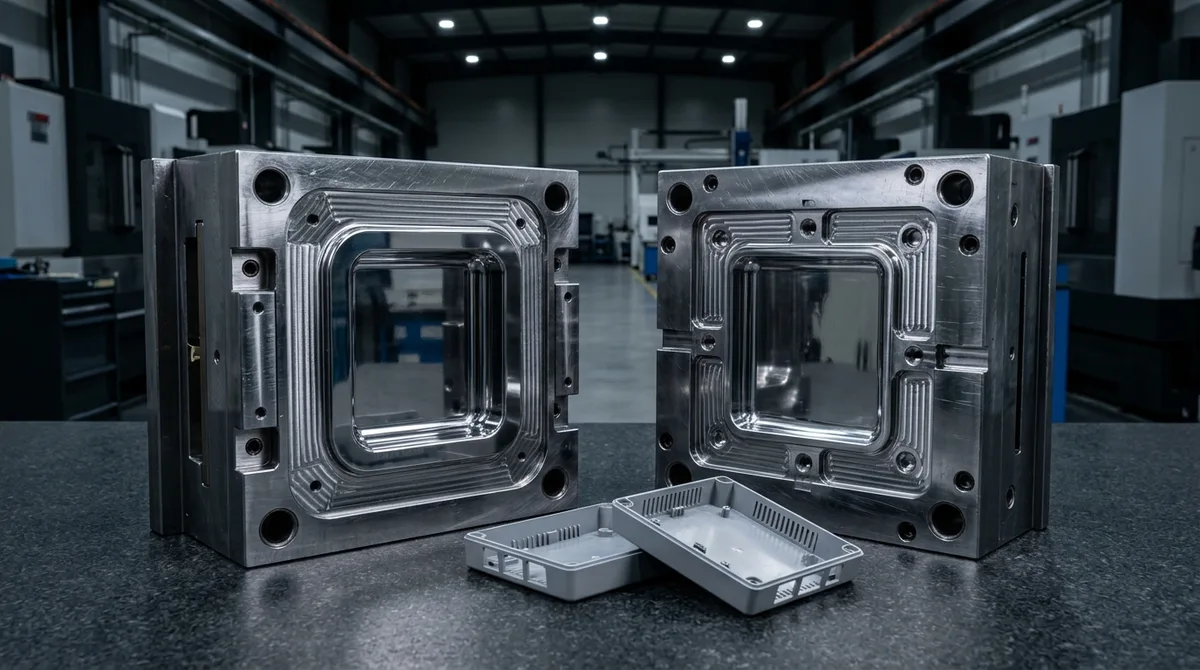

Rapid aluminum molds (12–18 business days T1) and P20/H13 steel production tooling (18–35 business days) alongside multi-fixture CNC runs for 100 to 10,000+ units.

  • ✓ T1 molded samples & Cpk capability data
  • ✓ Molded-in knurled C3604 brass inserts
  • ✓ Zeiss Coordinate Measuring Machine (CMM) QC
APPLICATION SPOTLIGHT

Precision Electronics & Smart Appliance Component Showcase

Core electronics hardware fabricated on dedicated shop-floor platforms—pairing cost-efficient ISO 2768-mK baseline profiles with micron-level critical interface fits (shown in the six studio macro showcases below).

3-axis CNC milled 6061-T6 aluminum unibody device enclosure with bead-blasted anodized finish and diamond-cut chamfers 3-Axis CNC Milling

Aluminum Unibody Smart-Device Enclosures

Monolithic 6061-T651 housings milled on high-speed 3-axis vertical machining centers featuring compartmentalized battery and logic-board pockets, micro-drilled acoustic speaker grilles, and #150 bead-blasted grey anodizing accented by 45° diamond-cut chamfers.

General Profile: ISO 2768-mK (±0.2–0.3 mm for 6–120 mm)
Critical Fit: ±0.015 mm (±0.0006″) Boss Pitch; 0.020 mm Flatness
Process: 3-Axis Milling · Billet Enclosures · Type II Anodize
High-density skived C11000 electrolytic copper fin heatsink mounted on CNC-milled 6063-T5 aluminum thermal baseplate Thermal CNC & Skiving

Skived Copper Heatsinks & Thermal Cold Plates

High-density C11000 Electrolytic Tough Pitch (ETP) copper parallel-fin heatsinks mounted on CNC-milled 6063-T5 aluminum baseplates (C10100/C10200 oxygen-free copper available for vacuum-brazed cold plates), with open airflow channels and fly-cut die pedestals.

General Profile: ISO 2768-mK (±0.2–0.3 mm for 6–120 mm)
Critical Fit: 0.030 mm / 100 mm Flatness; Ra 0.4 µm (16 µin) Pad
Process: Thermal CNC Machining · Copper Passivation & Electroless Nickel (ENP)
Swiss-turned gold-plated C3604 brass RF coaxial receptacle with PTFE insulator and two multi-stepped contact pins Star Swiss Turning

Swiss-Turned RF Coaxial Connectors & Contacts

Hard-gold-plated C3604 brass 4-hole square-flange RF coaxial receptacles housing concentric virgin polytetrafluoroethylene (PTFE) dielectric sleeves, paired with multi-stepped male contact pins featuring hemispherical tips and retention grooves turned on Star Swiss lathes.

General Profile: ISO 2768-mK (6–30 mm: ±0.2 mm); ISO 2768-c PTFE
Critical Fit: ±0.005 mm (±0.0002″) Brass Pin OD; ≤ 0.010 mm Total Indicator Reading (TIR)
Process: Star Swiss Machining · C3604 Brass Guide

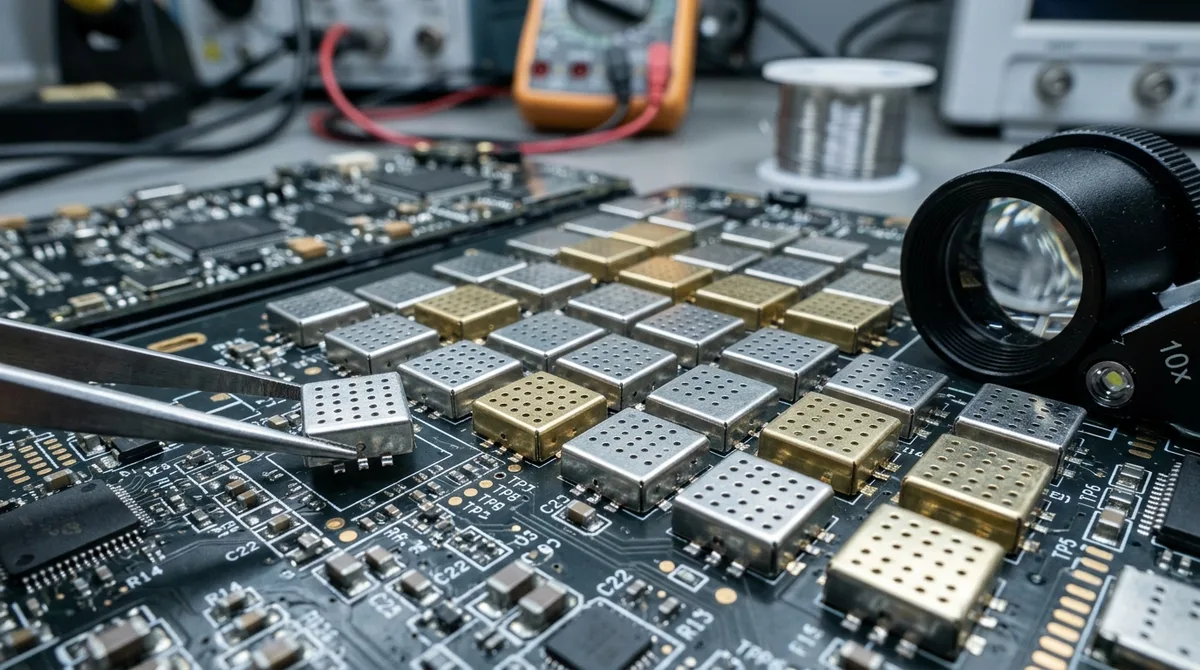

Stamped 0.2 mm C7521 nickel-silver EMI shield can and CNC-bent 5052-H32 aluminum bracket with self-clinching nuts Sheet Metal & Stamping

Board-Level EMI Shield Cans & I/O Brackets

Thin 0.2 mm C7521-1/2H nickel-silver stamped PCB RF shielding cans with serrated grounding tabs and Surface-Mount Technology (SMT) solder feet, alongside fiber-laser-cut and CNC-bent 1.2 mm 5052-H32 aluminum I/O brackets with self-clinching nuts.

Formed Bends: ±0.20–0.40 mm (±0.5°–1.0°) bends; ±0.10–0.20 mm laser cut
Critical Fit: 0.05 mm (0.0020″) SMT Solder Foot Coplanarity
Process: Sheet Metal Forming · Fiber Laser Cutting
Diamond-machined optical PMMA multi-branch light guide pipe with TIR prisms and vapor-polished polycarbonate sensor window Optical Diamond Milling

Optical PMMA Light Guides & Sensor Windows

Optical polymethyl methacrylate (PMMA) multi-branch light pipes with 45° Total Internal Reflection (TIR) prisms finished via 70–80 °C annealing and Single-Point Diamond Turning (SPDT), paired with 110–120 °C annealed and dichloromethane (DCM) vapor-polished polycarbonate (PC) windows.

General Profile: ISO 2768-mK (±0.1–0.3 mm on mounting ears)
Critical Fit: Ra ≤ 0.02 µm (SPI A-1) Optical Facets; ~92% PMMA Transmission
Process: Diamond Turning · Optical PMMA CNC
Injection-molded PC/ABS device housing with knurled C3604 brass inserts and matte black TPE soft-grip overmolded cover Injection & Overmolding

PC/ABS Enclosures & TPE Soft-Grip Overmolding

Flame-retardant UL94 V-0 PC/ABS housings molded with uniform 1.8 mm walls, 0.9 mm (0.50× nominal wall) anti-sink internal ribs, molded-in knurled C3604 brass threaded inserts, and seamless Shore 60A thermoplastic elastomer (TPE) perimeter overmolding.

Molded Envelope: ISO 20457 / DIN 16742 TG 4–5 (±0.08–0.15 mm)
Critical Fit: ±0.03 mm (±0.0012″) Parting-Line Step & Snap-Fit Lock
Process: Injection Molding · Brass Insert Molding
MANUFACTURING SYNERGY

Integrated Electronics Hardware Manufacturing Ecosystem

Consolidating CNC metal chassis, thermal modules, and molded polymer housings inside one Shenzhen shop floor eliminates multi-vendor datum drift across mated consumer assemblies.

⚙️

High-Speed 3/4-Axis & Star Swiss CNC

In our in-house CNC machining facility practice, Brother Speedio and 24,000 RPM Fanuc Robodrill centers finish 6061-T651 shells (Vc = 280–400 m/min, fz = 0.06–0.12 mm/tooth) alongside Star sliding-headstock Swiss lathes (Ø0.5–32.0 mm bar capacity).

24,000 RPM Spindles & Star Guide-Bushing Lathes
🛡️

Sheet Metal & EMI/RFI Shielding

12 kW fiber laser blanking, 160-ton CNC press-brake forming (DIN 6935 flat-pattern K-factor development), and progressive stamping produce 0.2 mm C7521 Radio Frequency Interference (RFI) board shields, 5052-H32 I/O brackets, and conductive SurTec 650 grounding paths.

0.05 mm SMT Coplanarity & Flush Clinch Hardware
⚡

Rapid Tooling, Optics & Overmolding

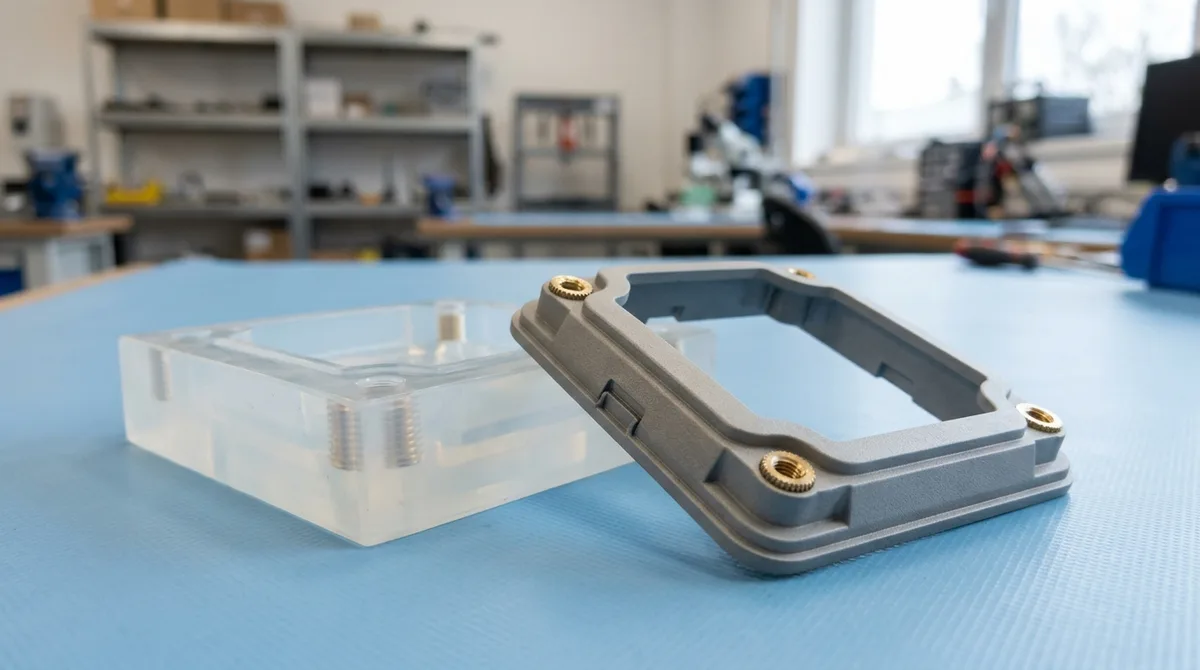

Seamless scaling from SLA, Selective Laser Sintering (SLS), MJF, and urethane vacuum casting to P20 (28–34 HRC) and H13 (48–52 HRC) bridge molds with two-shot TPE overmolding.

50T–850T Presses & SPI A-1 Optical Polishing
SOURCING ARCHITECTURE

Why Do Electronics Teams Choose Our In-House Facility Over Quoting Networks?

Direct single-roof manufacturing guarantees matched anodize dye lots, physical multi-part assembly fit-ups before dispatch, and closed-network CAD confidentiality that distributed quoting marketplaces cannot enforce.

Table 1: Direct In-House Electronics Manufacturing Facility vs. Distributed Online Quoting Networks
Manufacturing Control VectorDistributed Quoting NetworksAS Prototypes (In-House Direct Facility)
Cosmetic Anodize ConsistencySplit across separate anodizing job shops, causing visible shade shifts between mated upper and lower shells.Single-Bath Rack Control: Mated 6061-T6 enclosures are bead-blasted and anodized together on one titanium rack under D65 master-sample inspection.
Multi-Process Device BOMCNC housings, stamped EMI shields, and molded bezels routed to uncoordinated subcontractors without trial assembly.Pre-Shipment Fit-Up Verification: Aluminum chassis, copper heatsinks, PMMA light guides, and PC/ABS covers are dry-fitted before dispatch.
EMI/RFI Grounding MaskingUnmasked immersion anodizing creates an insulating oxide barrier over PCB grounding bosses and gasket tracks.Precision Selective Masking: Die-cut silicone plugs and CNC laser ablation preserve low-resistance SurTec 650 grounding pads.
Thin-Wall Enclosure FlatnessStandard jaw clamping bows 0.8–1.2 mm aluminum sidewalls inward, binding against PCBA edges during assembly.Vacuum Chuck & Symmetric Milling: Alternating residual-stress relief roughing holds 0.020 mm (0.0008″) datum flatness.
Intellectual Property (IP)Unreleased consumer product CAD assemblies circulated across open external supplier bidding pools.Direct Bilateral NDA: Closed-network CAM programming and restricted shop-floor access safeguard confidential hardware launches.
Commercial Cost StructureOpaque algorithmic platform markups stacked onto cosmetic bead-blasting and tight-tolerance callouts.Custom Quoted per CAD DFM: Transparent engineering evaluation driven directly by spindle cycle time, resin weight, and fixture setup.
ENGINEERING SPECIFICATIONS

Electronics Material Selection & Precision Tolerances Matrix

Verified mechanical, thermal, and optical properties paired with achievable shop-floor tolerances and objective design trade-offs across core electronics alloys and polymers.

⇄ Swipe horizontally to inspect full material parameters
Table 2: Consumer Electronics & Smart Appliance Materials, Properties, Tolerances & Selection Guide
Material & GradeProcess & StandardStrength & Thermal (MPa · W/m·K)Finish & Functional TraitAchievable Tolerance (mm / in)Recommended Application / When to Choose
Aluminum 6061-T6 / T651 Pre-Stretched Cosmetic Plate3/4-Axis CNC Milling · ISO 2768-mK310 MPa (45.0 ksi) · k = 167 W/m·K#120/#180 Bead Blast + MIL-A-8625 Type II + SurTec 650 Masking±0.010 mm (±0.0004″)Best for cosmetic unibody chassis and RF enclosures; avoid tight cold sheet bends (< 3.0t cracks outer grains—use 5052-H32).
Copper C11000 (ETP) C10100/C10200 for Vacuum BrazeSkiving & CNC Milling · ASTM B152220–250 MPa (32–36 ksi) · k = 388 W/m·K100–101% IACS · Electroless Nickel (ENP) or Anti-Tarnish±0.015 mm (±0.0006″)Best for high-heat-flux CPU/SoC skived heatsinks; avoid C11000 in reducing-gas brazing (specify oxygen-free C10100/C10200).
Brass C3604 Free-Cutting Swiss-Turn BarStar Swiss Turning · JIS H3250380–440 MPa (55–64 ksi) · k = 115 W/m·KHard Gold (0.5–1.27 µm) over Sulfamate Nickel Barrier±0.005 mm (±0.0002″)Best for 5G RF coaxial bodies, pogo-pin contacts, and knurled inserts (RoHS 6c alloy; specify lead-free C6801 if < 0.1% Pb required).
Nickel-Silver C7521 Cu-18Ni-20Zn Strip (0.2 mm)Stamping & Laser · JIS H3100490–590 MPa (71–86 ksi, 1/2H) · 620–740 MPa (SH)Direct Reflow SMT Solderability (Zero Post-Plating)±0.10 mm (±0.004″)Best for board-level PCB EMI/RFI shield cans (1/2H) and clip-on frames (SH); avoid for primary heat spreading (k = 33 W/m·K).
Optical PMMA & PC Acrylic (n=1.49) · PC (n=1.58)SPDT & Optical CNC · ISO 2768-mK80 MPa (PMMA) / 65 MPa (PC) · Ra ≤ 0.02 µmPMMA: ~92% Transmittance (70–80 °C Anneal + Buff) · PC: ~89% (110–120 °C + DCM)±0.020 mm (±0.0008″)PMMA best for crisp TIR LED light pipes (never DCM vapor or flame polish); choose PC for drop-resistant LiDAR/IR windows.
PC/ABS + TPE Overmold UL94 V-0 Resin + Shore 60A GripTwo-Shot / Insert Molding · ISO 204572.4 GPa (348 ksi) Flexural ModulusVDI 24 (1.5°–2.0° Draft) / SPI B-1 + 1.2 mm TPE Seal±0.08–0.15 mm (TG 4–5)Best for handheld smart-appliance shells (100–10,000+ units); keep internal ribs ≤ 0.50–0.60× wall thickness to prevent sink marks.
METROLOGY & PHYSICS

Empirical Quality Verification & Electronics DFM Physics

Cosmetic uniformity, thermal contact flatness, optical clarity, and RF grounding continuity are verified through shop-floor process controls inside our 20 °C ± 1 °C metrology lab.

COSMETIC TROUBLESHOOTING

Eliminating Anodize Witness Lines

Symptom: faint cutter halos visible after Type II anodizing. Root cause: thermal spindle Z-drift altering grain reflectivity. Corrective action: laser tool-offset calibration, fine skimming before #150 glass-bead blasting, and single-rack dye-lot control.

  • ✓ Zero step-over witness marks on Class-A faces
  • ✓ Monocrystalline diamond-cut 45° bevels
  • ✓ ISO 4287 roughness check (Mitutoyo SJ-210)
THERMAL & SEALING PHYSICS

Pedestal Flatness & Air-Decay Leak QC

Fly-cutting C11000 copper pedestals to 0.030 mm / 100 mm flatness minimizes Thermal Interface Material (TIM) bond-line resistance, while gasketed outdoor housings undergo pressure-decay verification.

  • ✓ Ra 0.4 µm (16 µin) die contact pedestals
  • ✓ Low-impedance SurTec 650 Faraday continuity
  • ✓ 3.5–6.0 bar pressure-decay & bubble leak test
OPTICAL STRESS RELIEF

Split-Track PMMA & PC Finishing

Optical PMMA undergoes 70–80 °C annealing plus #800–#5000 progressive diamond buffing or SPDT (never DCM vapor or flame, preventing fogging), whereas machined PC requires 110–120 °C annealing before DCM vapor polishing.

  • ✓ Zero solvent crazing or prism edge roll-off
  • ✓ Crisp diamond-turned 45° TIR facets
  • ✓ ~92% PMMA / ~89% PC transmittance preserved
20 °C ± 1 °C METROLOGY

Zeiss CMM & 2.5D Optical VMS

Machined PCB standoffs and I/O cutouts are probed on our Zeiss Contura CMM, while delicate 0.2 mm SMT shield cans and elastomer seals are measured non-contact via 2.5D Optical Video Measuring Systems (VMS).

TECHNICAL FAQ

Frequently Asked Questions: Electronic Appliance CNC Machining

Direct engineering answers on thin-wall 6061-T651 flatness control, selective EMI grounding, thermal heatsink finish, and ex-factory EVT/DVT/PVT lead times.

How do you prevent thin-wall warping on CNC machined 6061-T6 aluminum unibody enclosures?

Thin-wall 6061-T6 enclosures (0.8–1.2 mm walls) warp when asymmetric pocketing releases internal rolling stresses, so we machine pre-stretched 6061-T651 plate using alternating double-sided roughing passes. Final finishing runs on custom vacuum fixtures after a 150–165 °C stress-relief cycle, holding 0.020 mm (0.0008 in) datum flatness.

How do you maintain electrical grounding continuity on anodized EMI shielding enclosures?

Sulfuric acid anodizing per MIL-A-8625 Type II grows a 10–25 µm insulating oxide layer that blocks Faraday cage electromagnetic shielding. We apply silicone plug masking or laser ablation over PCB grounding pads and gasket tracks, treating exposed aluminum contacts with conductive trivalent SurTec 650 conversion.

What surface roughness and flatness are required on copper heatsinks to minimize thermal contact resistance?

High-heat-flux processors require low-roughness, flat pedestals to minimize thermal interface material bond-line thickness and air-gap resistance. Our shop fly-cuts C11000 electrolytic copper and 6063-T5 aluminum pedestals to Ra 0.4–0.8 µm (16–32 µin) per ISO 4287 while holding 0.030 mm (0.0012 in) flatness per 100 mm.

What are the ex-factory production lead times for EVT, DVT, and PVT electronics hardware builds?

After 24-hour engineering DFM review, uncoated EVT CNC and 3D printed prototypes finish in 4–8 business days ex-factory, while anodized or plated DVT batches require 7–12 business days. Rapid bridge injection tooling takes 12–35 business days ex-factory, strictly separate from 3–5 business days international air transit.
