SLA 3D Printing Services: Custom Clear & Resin Prototypes

Industrial Dual-Spot 355 nm SLA
Large-Format 800 × 800 × 550 mm Build
±0.15 mm (<100 mm) or ±0.20% Tolerance
50 – 100 μm (0.002″ – 0.004″) Layer Resolution
Ra 0.1 – 0.2 μm Clear-Coated Optical Finish
4–8 Business Days Ex-Factory Turnaround

Stereolithography (SLA) cures liquid photopolymer resin layer by layer using solid-state 355 nm ultraviolet (UV) lasers. At AS Prototypes, our in-house SLA 3D printing services combine 50 – 100 μm resolution with 800 × 800 × 550 mm monolithic vats across our industrial 3D printing fleet—delivering smooth cosmetic housings, clear microfluidic manifolds, and polyurethane vacuum casting master patterns.

Layer Resolution
50 – 100 μm
0.002″–0.004″ SLA | 15–25 μm 4K DLP
Dimensional Tolerance
±0.15 mm / ±0.20%
±0.15 mm (<100 mm) | ±0.10 mm master
Max Build Volume
800 × 800 × 550 mm
31.5″ × 31.5″ × 21.7″ single-piece
Ex-Factory Turnaround
4 – 8 Business Days
7–12d painted/coated · Excl. 3–5d air

Stereolithography (SLA) Technology & Working Principle

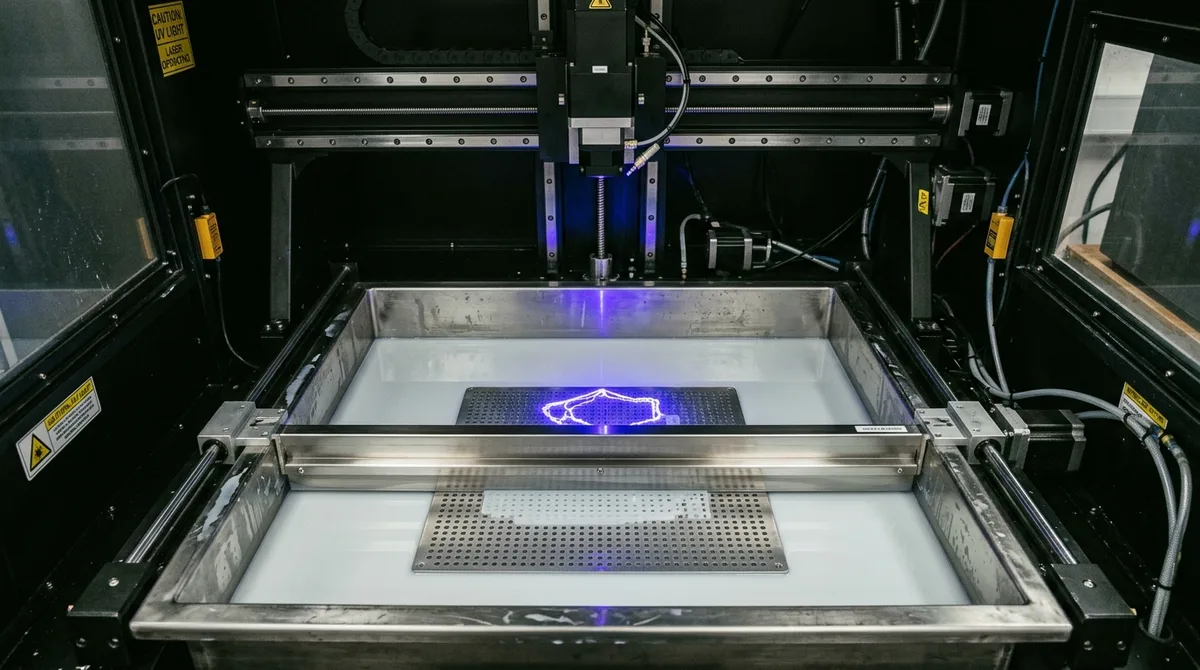

Industrial top-down stereolithography focuses a solid-state 355 nm UV laser onto a temperature-regulated vat of liquid photopolymer resin, where XY galvanometer scanners trace outer boundaries with a fine 0.08 – 0.15 mm contour beam and cross-hatch interiors with a broader 0.50 mm fill beam.

As demonstrated in the matte ivory photopolymer components shown here, molecular cross-linking produces watertight, near-isotropic prototypes featuring crisp radial stiffening ribs, continuous O-ring sealing grooves, and curved aerodynamic stator vanes down to 0.8 mm thickness.

  • Calibrated Layer Resolution Tiers: Our four in-house Kings and UnionTech SLA-800 Pro systems run at 100 μm (0.004″) for large-format enclosures and 50 μm (0.002″) for high-detail cosmetic housings, stator vanes, and microfluidic blocks, while sub-50 mm micro-features requiring 15 – 25 μm (0.0006″ – 0.001″) layers route to our micro-nano 4K DLP 3D printing platform.
  • Three-Tier Surface Roughness Control: As-printed vertical walls achieve Ra 1.2 – 2.5 μm (47 – 98 μin); progressive wet micro-sanding and glass-bead blasting produce a uniform matte Ra 0.6 – 1.0 μm (24 – 39 μin); #2000-grit wet polishing plus UV-resistant acrylic clear coating yields Ra 0.1 – 0.2 μm (4 – 8 μin) optical clarity.
  • Isotropic Fit & Master Pattern Stability: Low-shrinkage formulations (<0.05%) hold ±0.15 mm (±0.006″) on compact features under 100 mm, ensuring leak-free flange seating and accurate silicone mold masters for polyurethane vacuum casting.
Matched matte ivory stereolithography photopolymer pump housing with radial ribs and axial fan stator shroud

Industrial stereolithography prototypes printed from the same matte ivory photopolymer vat: a radial-ribbed pump housing with perimeter sealing groove (left) and an axial fan stator shroud with thin 0.8–1.2 mm curved guide vanes (right).

SLA Photopolymer Resins & Engineering Specifications

Industrial SLA 3D Printing Photopolymer Resins, Dual-Unit Mechanical Properties & Selection Guide
Resin CategoryInternational & Shop-Floor GradesTensile & Flexural Specs (MPa / ksi)Heat Deflection Temp., HDT (@ 0.46 MPa)Surface Roughness (Ra μm / μin)Recommended Application / When to Choose

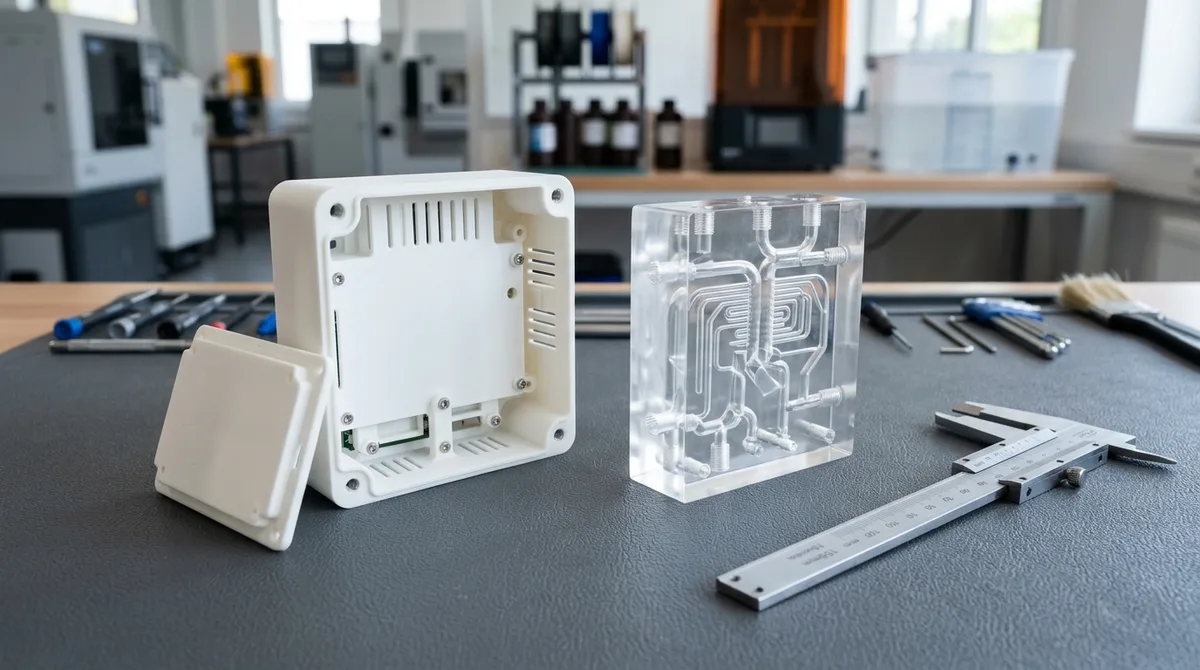

Standard Rigid ABS-Like (Ivory / White)Somos Imagine 8000 / Ledo 6060 / Accura 25Tensile: 45–55 MPa (6.5–8.0 ksi)
Elongation: 12% – 20%
55°C – 65°C
(131°F – 149°F)
As-Sanded: Ra 0.8–1.5 μm (32–59 μin)Workhorse industrial SLA resin for multi-part enclosures, pump and fan housings, architectural models, and indoor form-and-fit validation up to 800 mm.
Tough & Impact-Resistant (ABS / PP-Like)Somos Taurus / Accura Xtreme / High-Tough 9400Tensile: 48–52 MPa (7.0–7.5 ksi)
Notched Izod: 40–45 J/m
68°C – 75°C
(154°F – 167°F)
Matte Blasted: Ra 0.8–1.2 μm (32–47 μin)Functional snap-fit latches, automotive interior bezels, brackets, and rugged mechanical assemblies requiring improved elongation and impact resistance.
Optically Clear (PC / PMMA-Like)Somos WaterShed XC 11122 / Accura ClearVueTensile: 50–60 MPa (7.3–8.7 ksi)
Light Transmission: >88%
54°C – 60°C
(129°F – 140°F)
Polished + Clear Coat: Ra 0.1–0.2 μm (4–8 μin)Microfluidic manifolds, flow visualization blocks, automotive headlamp lenses, light pipes, and transparent medical fluid reservoirs with low moisture absorption.
High-Temp Ceramic-Filled CompositeSomos PerFORM / Accura PEAK / HT 8228Tensile: 75–80 MPa (10.9–11.6 ksi)
Modulus: ~10,000 MPa (1,450 ksi)
130°C – 268°C
(266°F – 514°F Thermal Cure)
Sanded Matte: Ra 0.6–1.0 μm (24–39 μin)Wind tunnel aerodynamic models, high-stiffness centrifugal impellers, under-the-hood thermal ducts, electrical connectors, and rapid bridge injection mold inserts.
Silicone Tooling Master Pattern ResinUltra-Low Shrinkage High-Definition SLA ResinLinear Shrinkage: <0.05%
Flexural Modulus: 2,600 MPa
60°C – 65°C
(140°F – 149°F)
Polished Gloss: Ra 0.10–0.20 μm (4–8 μin)Precision master patterns for polyurethane vacuum casting where zero visible layer lines and ±0.10 mm (±0.004″) master accuracy are required before pouring Room-Temperature Vulcanizing (RTV) silicone molds.
Sacrificial Investment Casting ResinQuickCast® Antimony-Free Castable ResinBurnout Residual Ash: <0.01%
Internal Hexagonal Void Build
52°C – 60°C
(126°F – 140°F)
As-Printed / Light Sand: Ra 1.0–1.8 μm (39–71 μin)Direct sacrificial patterns printed with self-draining cellular interiors for lost-wax ceramic shell investment casting of metal impellers and manifolds without wax tooling.

Core Industrial SLA Applications & Process Comparison

Hardware engineering teams across automotive, medical device, and consumer electronics sectors rely on industrial SLA when surface smoothness, optical clarity, or monolithic 800 mm scale cannot be achieved by powder-bed or filament 3D printing:

Automotive Lighting & TrimUp to 800 mm
Optical headlamp lenses, Total Internal Reflection (TIR) light-guide bezels in clear WaterShed XC 11122, and full-scale instrument panels, grilles, and bumper housings printed in a single monolithic build.
Microfluidics & Flow Blocks>88% Clarity
Transparent manifold blocks with complex internal Y-junctions, serpentine mixing chambers, and sensor ports for real-time laminar/turbulent fluid visualization and bubble inspection.
Vacuum Casting Masters±0.10 mm Master
High-gloss (Ra 0.10–0.20 μm / SPI B-1–B-2 equiv.) hand-polished master patterns used to pour RTV silicone molds, producing 15–25 production-grade polyurethane copies per mold in 7–12 business days ex-factory.
Medical Analyzer EnclosuresFine Louvers
Ergonomic handheld diagnostic shells and benchtop cart covers featuring razor-sharp cooling louvers, recessed display bezels, internal screw bosses, and custom Pantone polyurethane finishes.
Impellers & Wind Tunnel PartsHDT to 268°C
High-stiffness ceramic-filled Somos PerFORM aerodynamic scale models, axial fan stators, and thermal air ducts that resist deflection under high-velocity airflow.
Multi-Part Fit Assemblies±0.15 mm Fit
Pre-tooling verification of mating tongue-and-groove lip seals, Printed Circuit Board (PCB) standoff alignments, and cantilever snap-fit assemblies prior to cutting hard steel injection molds.
Engineering Process Comparison: When to Choose SLA vs. SLS, MJF, or Polyurethane Vacuum Casting
Comparison CriterionIndustrial SLA (Photopolymer)SLS Nylon (PA12)HP MJF (PA12)Vacuum Casting (SLA Master)
Surface Finish & DetailUltra-Smooth (Ra 0.1–1.5 μm); razor-sharp edges & 0.35 mm textMatte granular powder texture (Ra 3.2–6.3 μm); media-tumbling optionalFine satin matte gray/black (Ra 2.5–4.5 μm); uniform edge definitionReplicates SLA master finish (high-gloss Ra 0.1–0.2 μm to VDI 3400 / Mold-Tech texture)
Optical TransparencyYes — Water-clear >88% transmission (WaterShed XC 11122)No — Opaque white or dyed black nylon onlyNo — Opaque charcoal gray or dyed black nylon onlyYes — Optically clear UV-stable PMMA/PC-like polyurethane resins
Max Single-Piece Build800 × 800 × 550 mm (31.5″ × 31.5″ × 21.7″) monolithicUp to 400 × 400 × 450 mm without support structuresUp to 380 × 284 × 380 mm without support structuresUp to 1,000+ mm in large RTV silicone molds
UV & Mechanical FatigueIndoor / short-term functional; thermoset creeps under sustained load or outdoor UV unless paintedExcellent living-hinge fatigue, chemical resistance & thermal stabilityHigh isotropic toughness & functional snap-fit durabilityProduction-grade ABS, PC, PP & Shore A rubber overmolding
Recommended Batch Volume / When to Choose1 – 10 cosmetic, optical, or large-format prototypes1 – 50 functional self-supporting nylon brackets & ducts10 – 200+ functional batch production housings10 – 100+ showroom or bridge-production assemblies (Low-Volume Bridge Production Guide →)

Evaluating resin surface fidelity against sintered PA12 toughness and snap-fit fatigue limits? Review our detailed SLA vs. SLS prototype selection guide →

SLA Design for Manufacturability (DFM) Guidelines

Designing photopolymer parts within industrial SLA process boundaries prevents recoater blade collisions, resin trapping, and post-cure warpage. Reference these Design for Manufacturability (DFM) guidelines before uploading your 3D Computer-Aided Design (CAD) files (STEP / IGES / STL):

Industrial SLA 3D Printing Geometric Design Rules & DFM Thresholds
Design FeatureMinimum / Recommended Threshold (mm / in)Shop-Floor Engineering Rationale & Recommended Use Case
Supported Wall Thickness≥ 0.6 mm (0.024″) min
1.2 – 2.5 mm recommended
Walls anchored to adjacent ribs on at least two edges can print down to 0.6 mm; for enclosures exceeding 150 mm, maintain ≥ 1.5 – 2.5 mm walls to resist recoater shear and handling deflection.
Unsupported Cantilevered Walls≥ 1.2 mm (0.047″) min
≥ 1.5 mm recommended
Free-standing tabs, flanges, and guide vanes below 0.8–1.0 mm can flex during recoater blade passes or curl during UV thermal post-curing. Add 0.8 mm fillets or gussets at root junctions.
Minimum Hole & Micro-Channel Bore≥ Ø0.5 mm (0.020″) Z-axis
≥ Ø1.2 mm internal routing
Capillary surface tension traps viscous liquid resin inside tiny bores. Orient critical micro-apertures vertically (parallel to Z) and specify ≥ Ø1.2 mm for curved internal microfluidic channels so isopropanol (IPA) solvent flushes completely.
Hollow / Cored Shell & Drain Holes2.0 – 3.0 mm shell wall
≥ 2 holes of ≥ Ø4.0 mm
Closed hollow cavities trap uncured liquid resin and create hydraulic suction cupping during vat platform descent. Always place at least two ≥ Ø4.0 mm vent/drain holes at the lowest Z-elevation points.
Embossed & Engraved Typography≥ 0.35 mm height/depth
≥ 0.40 mm stroke width
Recessed (engraved) characters should be ≥ 0.40 mm wide to prevent resin meniscus bridging during laser curing; raised (embossed) text ≥ 0.35 mm tall reproduces razor-sharp edges at 50 μm layer heights.
Mating & Assembly Clearances0.20 mm (0.008″) sliding fit
0.10 mm (0.004″) press / bond
Allow 0.10 – 0.15 mm radial clearance for snug press-fit or epoxy-bonded step joints, 0.20 – 0.30 mm per side for sliding enclosure covers, and ≥ 0.50 mm clearance for pre-assembled moving mechanisms.
Threaded Bosses & FastenersBrass Inserts for M2 – M6
Direct print ≥ M8 coarse
Direct-printed resin threads below M6 strip under repeated screw torque. Design smooth cored pilot bosses with ≥ 2.0 mm wall thickness to accept knurled brass threaded inserts (heat-set or two-part epoxy bonded).
Cosmetic A-Surface OrientationUpward-facing Z-orientationBreak-away lattice supports leave micro-nubs on downward-facing overhangs (<30° from horizontal) requiring manual sanding. Annotate critical cosmetic A-surfaces and optical windows on your 2D drawing so our Computer-Aided Manufacturing (CAM) engineers orient them upward.

SLA Surface Finishing Grades & Secondary Post-Processing

After dual-stage ultrasonic IPA washing and calibrated 355/405 nm UV thermal curing, AS Prototypes provides four standardized surface finish levels—as illustrated in the brass-inserted mount, clear four-way fluidic manifold, and matte-black painted lens bezel shown here:

  • Level 1 — Standard As-Printed (Ra 1.2 – 2.5 μm / 47 – 98 μin): Support structures are flush-sheared and contact nibs are lightly dressed. Retains subtle micro-layer contours with 4 – 8 business days ex-factory turnaround for internal brackets and fit checks.
  • Level 2 — Smooth Matte Sanded & Bead-Blasted (Ra 0.6 – 1.0 μm / 24 – 39 μin): Progressive manual wet sanding from #400 to #1000 grit followed by fine glass-bead blasting removes all layer lines, delivering a uniform satin matte ivory surface ready for flush heat-set brass inserts.
  • Level 3 — Optical Clear / Master Pattern Polish (Ra 0.1 – 0.2 μm / 4 – 8 μin): Because thermoset SLA resins cannot be solvent-vapor polished, optical clarity on Somos WaterShed XC 11122 is achieved via #2000-grit wet polishing, micron diamond buffing, and enclosed dust-free spray-booth application of UV-resistant optical acrylic clear lacquer (plus syringe-cleared internal channels; 7 – 12 business days ex-factory).
  • Level 4 — Showroom Color, Material & Finish (CMF) & Hardware Assembly: Conductive primer, custom Pantone/RAL automotive polyurethane (PU) painting (matte, gloss, or Mold-Tech texture), silk-screen graphics, nickel/copper Electromagnetic Interference (EMI) shielding, and flush-mounted knurled brass threaded inserts (7 – 12 business days ex-factory).

Explore all in-house surface finishing capabilities →

Ivory SLA photopolymer mount with brass inserts, clear lacquered cross manifold, and black painted lens bezel

Post-processed stereolithography parts: Level 2 sanded ivory mounting plate with four flush knurled brass heat-set inserts (left), Level 3 UV clear-lacquered four-way fluidic cross manifold (center), and Level 4 matte-black polyurethane painted optical lens bezel (right).

Large-Format 800 mm Builds, Mating Enclosures & Why AS Prototypes

Dual-Spot Laser0.08 / 0.50 mm
Dynamically switches between a fine 0.08 mm UV laser beam for razor-sharp perimeters and a 0.50 mm beam for rapid internal hatching, maximizing accuracy and build speed.
>800 mm Split & BondDovetail Joints
For full-size automotive bumpers or medical cabinets exceeding 800 mm, our CAM engineers add interlocking dovetail keys and structurally bond, body-fill, and sand invisible seams.
A-Surface Orientation24h CAM DFM
Every build is manually oriented by senior CAM engineers so critical cosmetic A-surfaces, optical windows, and sealing grooves face upward without support contact marks.
Turnkey FinishingIn-House CMF
Seamless in-house transition from green-state SLA printing to #2000 optical polishing, enclosed dust-free PU spray-booth finishing, brass insert installation, and RTV silicone vacuum casting.

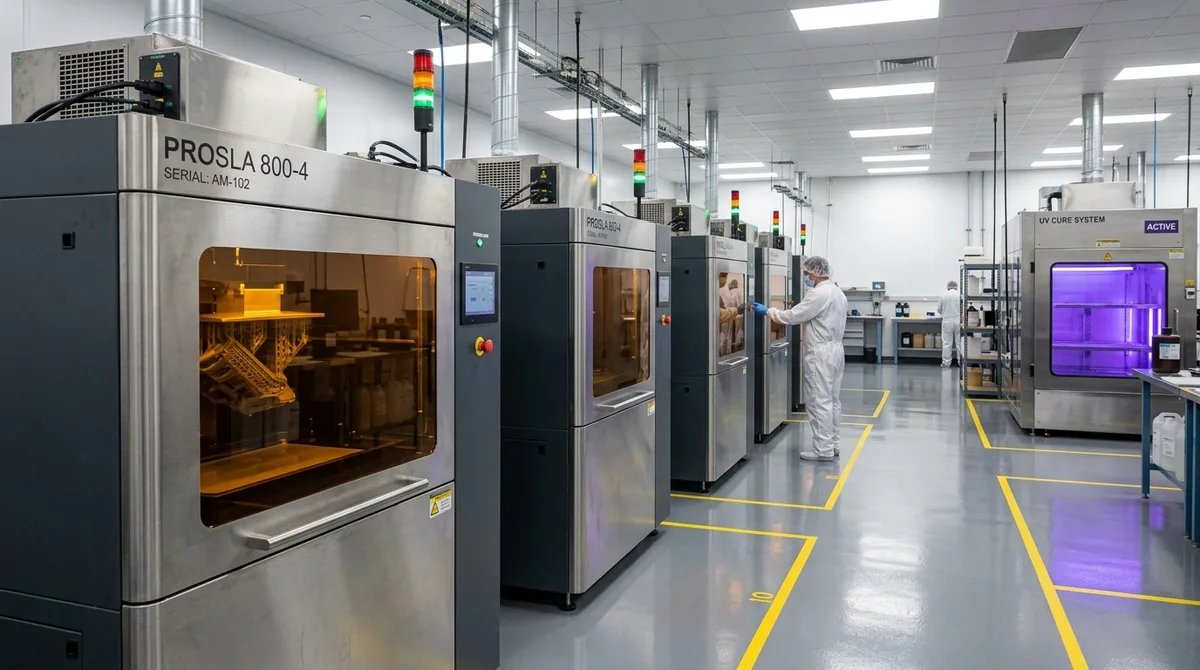

Operating four in-house Kings and UnionTech SLA-800 Pro systems with 800 × 800 × 550 mm (31.5″ × 31.5″ × 21.7″) monolithic build envelopes, we co-print mating multi-part housings inside the same temperature-stabilized photopolymer vat to maintain uniform <0.05% linear cure shrinkage across shared parting lines.

As demonstrated in the 1:1 mating instrument enclosure pair shown here, co-curing a dual-bay ribbed structural carrier frame alongside its stepped dual-window front bezel preserves consistent 0.20 mm (0.008″) perimeter rabbet lip clearance, concentric screw-boss alignment, and warp-free flatness prior to steel mold tooling.

Large-format ivory SLA photopolymer dual-bay ribbed carrier frame and mating stepped dual-window instrument bezel

Same-vat large-format ivory stereolithography 1:1 mating enclosure pair: a cored dual-bay carrier frame with a central crossbar stiffening rib and eight perimeter mounting bosses (left) alongside its matching stepped dual-window instrument front bezel (right).

Metrology & Quality Inspection for Photopolymer Parts

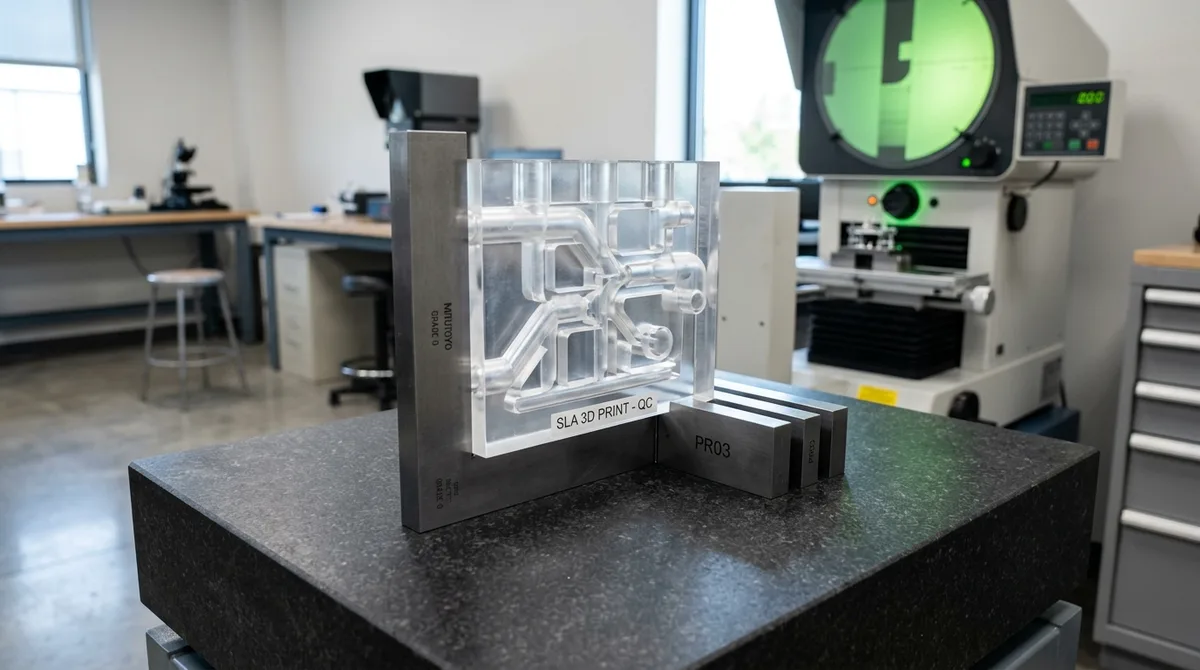

Photopolymer parts require specialized non-contact dimensional verification so thin 0.8 – 2.5 mm resin walls, micro-louvers, and elastomeric snap-fits are never deflected by mechanical probes during inspection:

  • Non-Contact 2.5D Optical Vision Metrology (VMS): High-resolution telecentric lens projection on green-backlit glass stages verifies hole-to-hole pitches, louver slot widths, and perimeter step tolerances within ±0.003 mm optical repeatability.
  • Mating Assembly Fit-Up & Pin Gauge Verification: Multi-part enclosures (such as mating dual-bay ribbed carrier frames and stepped dual-window instrument bezels) undergo physical trial assembly, go/no-go pin gauging on post-reamed bores, and flatness checks on granite surface plates.
  • Witness-Coupon Roughness & FAI Documentation: Contact stylus profilometry (ISO 4287) is conducted on co-processed sacrificial resin witness coupons—preventing stylus scratch marks on deliverable clear-coated optical windows—alongside collimated visual clarity checks and full First Article Inspection (FAI) reports upon request prior to ex-factory release.

Explore our 3D printing dimensional tolerances & inspection guide →

Matte ivory stereolithography photopolymer diagnostic housing under non-contact telecentric optical vision metrology inspection

Non-contact telecentric optical vision inspection verifying dimensional tolerances, louver slot widths, and mating step geometry on an ivory stereolithography diagnostic housing.

Frequently Asked Questions (FAQ)

Q1: What dimensional tolerances and layer resolutions do your industrial SLA printers hold?
Our industrial top-down SLA-800 Pro systems hold standard dimensional tolerances of ±0.15 mm (±0.006″) for dimensions under 100 mm, or ±0.20% of the nominal length for features over 100 mm (with ±0.10 mm achievable on compact master patterns under 50 mm). Layer thickness is calibrated to your part geometry: 100 μm (0.004″) for large-format enclosures and 50 μm (0.002″) for high-detail cosmetic and microfluidic components, while sub-50 mm micro-features requiring 15 – 25 μm (0.0006″ – 0.001″) layers route to our in-house micro-nano 4K DLP 3D printing platform.
Q2: How do you achieve glass-like optical clarity on clear SLA resin parts?
Unlike thermoplastic polycarbonate (PC), which can be chemically vapor-polished after stress-relief annealing, SLA photopolymers (such as Somos WaterShed XC 11122) are cross-linked thermosets. To achieve water-clear transparency (>88% light transmission and Ra 0.1 – 0.2 μm), our technicians perform Level 3 finishing: progressive wet micro-sanding from #400 to #2000 grit, fine polishing compound buffing, and enclosed dust-free spray-booth application of a UV-resistant optical acrylic clear coat, while internal microfluidic channels are flushed and optically cleared via controlled refractive-index resin coating.
Q3: How does SLA compare to SLS and MJF 3D printing for functional prototypes?
SLA delivers the smoothest surface finish (Ra 0.1 – 1.5 μm), sharpest edge fidelity, optical transparency, and largest single-piece build volume (800 × 800 × 550 mm). However, thermoset SLA resins are more sensitive to prolonged outdoor UV exposure and sustained creep under load than sintered thermoplastics. If your part requires self-supporting internal lattices, living hinges, or long-term mechanical durability without cosmetic painting, we recommend SLS Nylon (PA12) or HP MJF 3D printing.
Q4: What is the maximum single-piece build size for industrial SLA printing at AS Prototypes?
Our large-format industrial SLA vats print monolithic single-piece parts up to 800 × 800 × 550 mm (31.5″ × 31.5″ × 21.7″). For full-scale automotive bumpers, instrument panels, or medical diagnostic cabinets exceeding 800 mm, our CAM engineers split the CAD model using precision interlocking dovetail or tongue-and-groove alignment joints and structurally bond, body-fill, and sand the assembly into a seamless housing.
Q5: Why is SLA the preferred process for polyurethane vacuum casting master patterns?
RTV silicone molds replicate every microscopic surface texture of the master pattern—down to sub-micron layer lines. Because SLA prints with near-zero porosity, sharp parting-line edges, and fine 50 μm layers that wet-sand effortlessly to a high-gloss Ra 0.10 – 0.20 μm finish, an SLA master pattern enables polyurethane vacuum casting to produce 15–25 production-grade ABS-like, PC-like, or rubber overmolded copies per mold without metal tooling investment.
