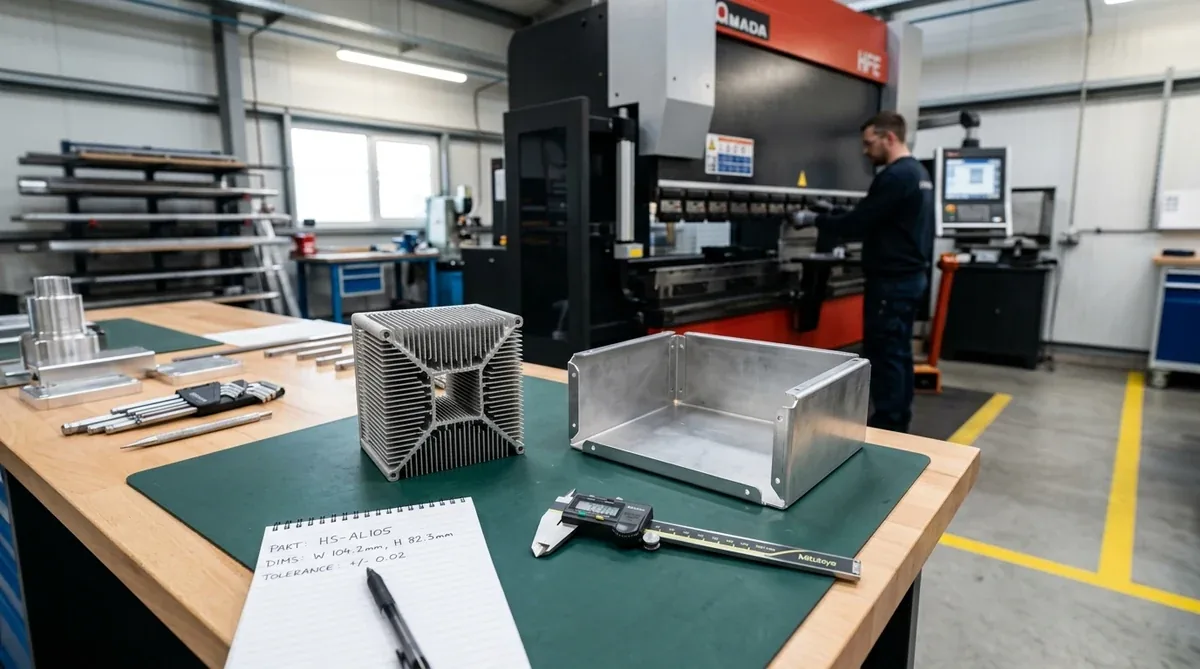

1. Core Sheet Metal Fabrication Capabilities
Our modern sheet metal manufacturing facility combines high-precision computer-numerical-controlled (CNC) equipment with specialized post-forming techniques to execute complex geometric features with uncompromising repeatability:

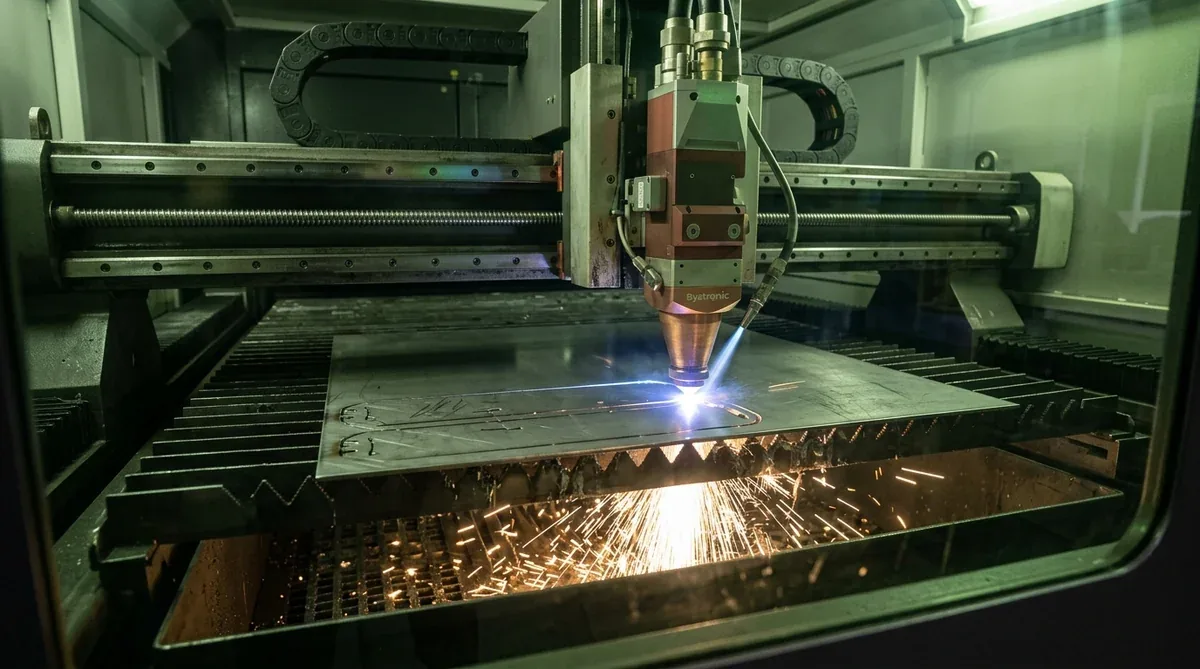

High-Speed CNC Fiber Laser Cutting (12kW)

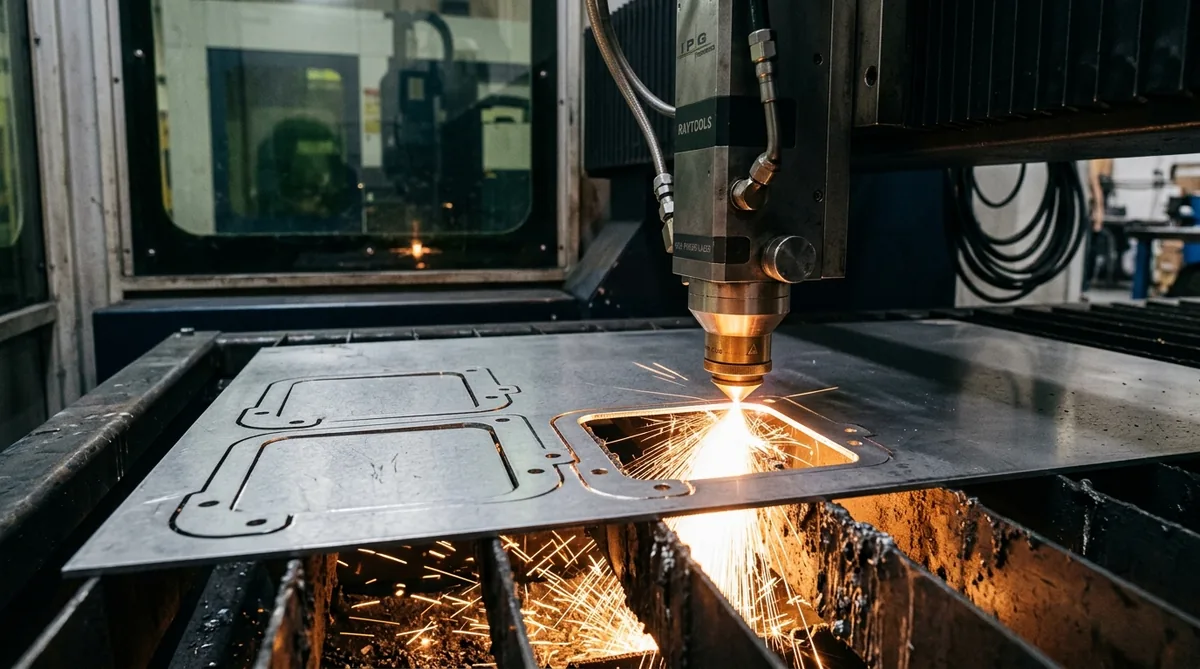

Equipped with state-of-the-art 12kW industrial fiber laser cutters and dual 3000 × 1500 mm shuttle tables to process sheet stock rapidly with extreme edge squareness and minimal thermal kerf width (down to 0.1 mm).
•
High-Pressure Nitrogen Cutting: Employs 25-bar inert nitrogen assist gas for stainless steel and aluminum, eliminating heat oxidation, scale, and carbon discoloration. Cut edges are ready for welding or powder coating without secondary acid pickling.
•
Thickness Capacities: Carbon steel up to 25 mm, stainless steel up to 16 mm, aluminum alloys up to 12 mm, brass and copper up to 8 mm.
•
Kerf Compensation & Micro-Joints: Automated optical beam centering and CAD nesting software compensate for laser kerf width, holding flat contour tolerances to ±0.05 mm (±0.002″).

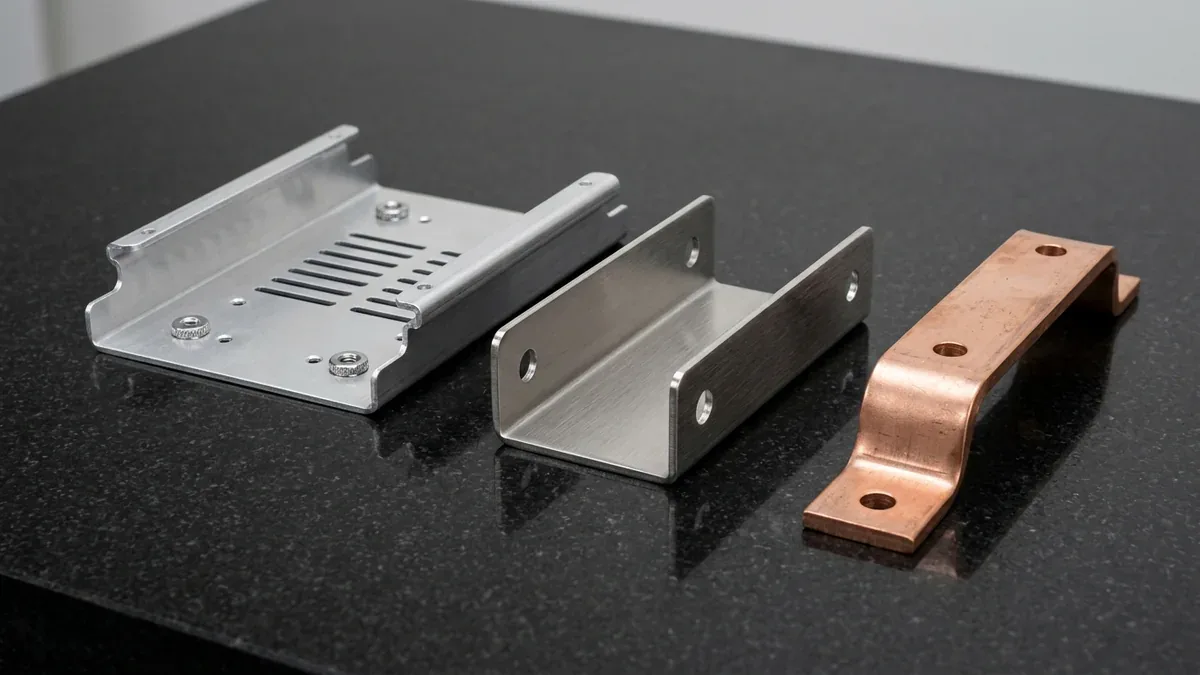

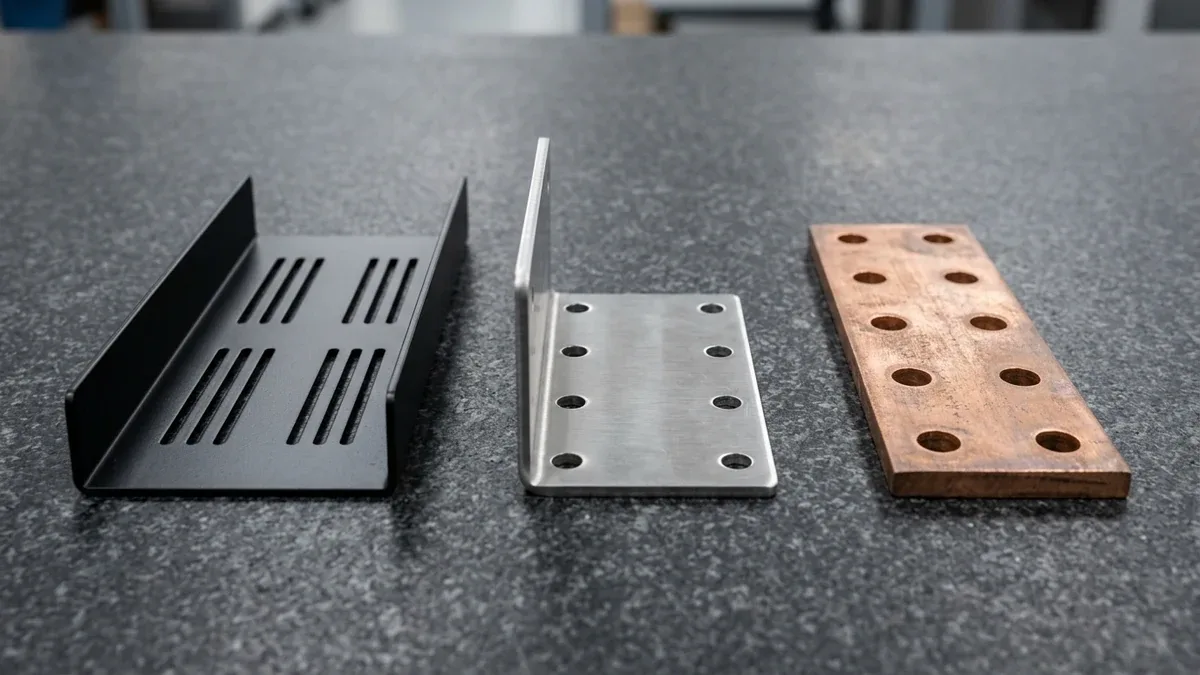

Figure 1: Precision laser-cut and CNC press-brake bent sheet metal components maintaining 100% uniform sheet thickness: 1.5 mm 5052-H32 aluminum chassis with flush PEM nuts, 2.0 mm 304 stainless U-bracket, and 4.0 mm C11000 copper busbar.
2. Precision Forming, Automated PEM Hardware & Welding
From high-tonnage multi-axis bending to robotic hardware insertion and seamless cosmetic welding, our secondary forming department delivers turnkey sub-assemblies:
CNC Bending
Multi-Axis Press Brake Bending
±0.5° Angular Accuracy
Up to 250 tons, 3200 mm bed with 6-axis backgauges and dynamic hydraulic crowning. Eliminates canoe effects, holding precise angular accuracy across long bends.
CNC Punching
Turret Punching & Forming
High-Speed Embossing
High-speed forming of stamped louvers for chassis heat dissipation, embossed stiffening ribs, countersunk screw seats, and extruded tapped holes with 2.5× thread engagement.
Fastener Press
Automated PEM Insertion
Zero Pull-Out Play

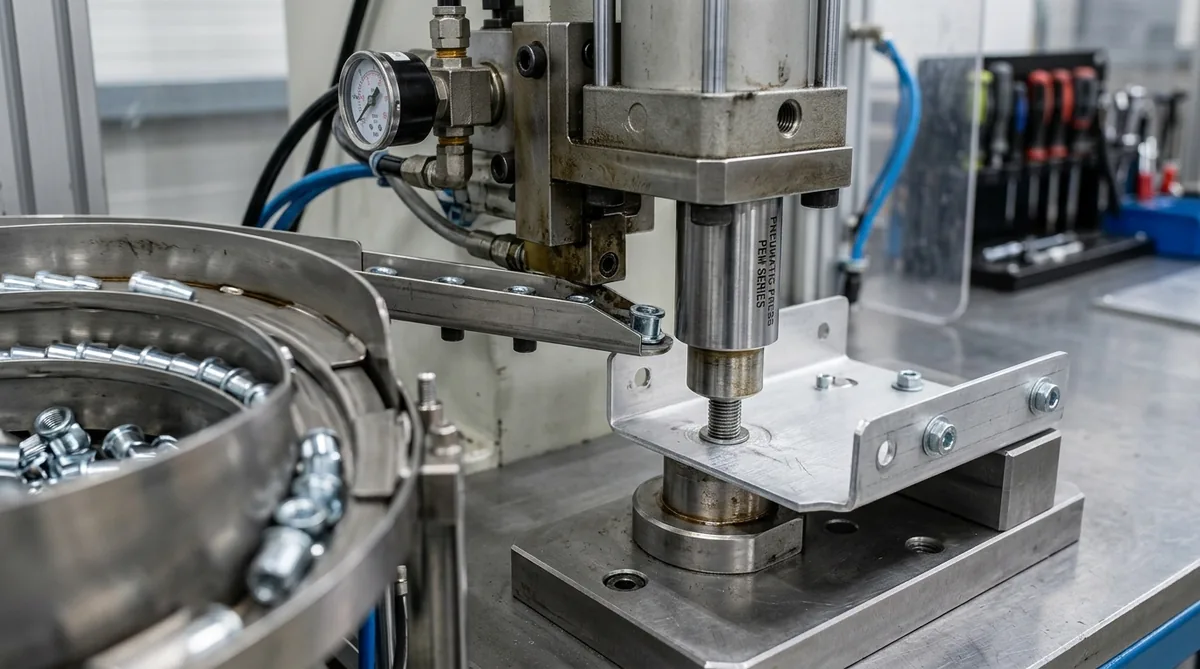

Hydraulic and pneumatic presses install self-clinching nuts (S, CLS), flush-head studs (FH, FHS), standoffs (SO through-hole, BSO blind), and spring-loaded captive screws with verified cold-flow retention.
Welding / Blend
Precision Welding & Planishing
Seamless Cosmetic Corners
TIG (GTAW), handheld fiber laser welding, and spot resistance welding (RSW). External corner weld beads are pneumatic-hammered (planished) and sanded flush prior to coating.

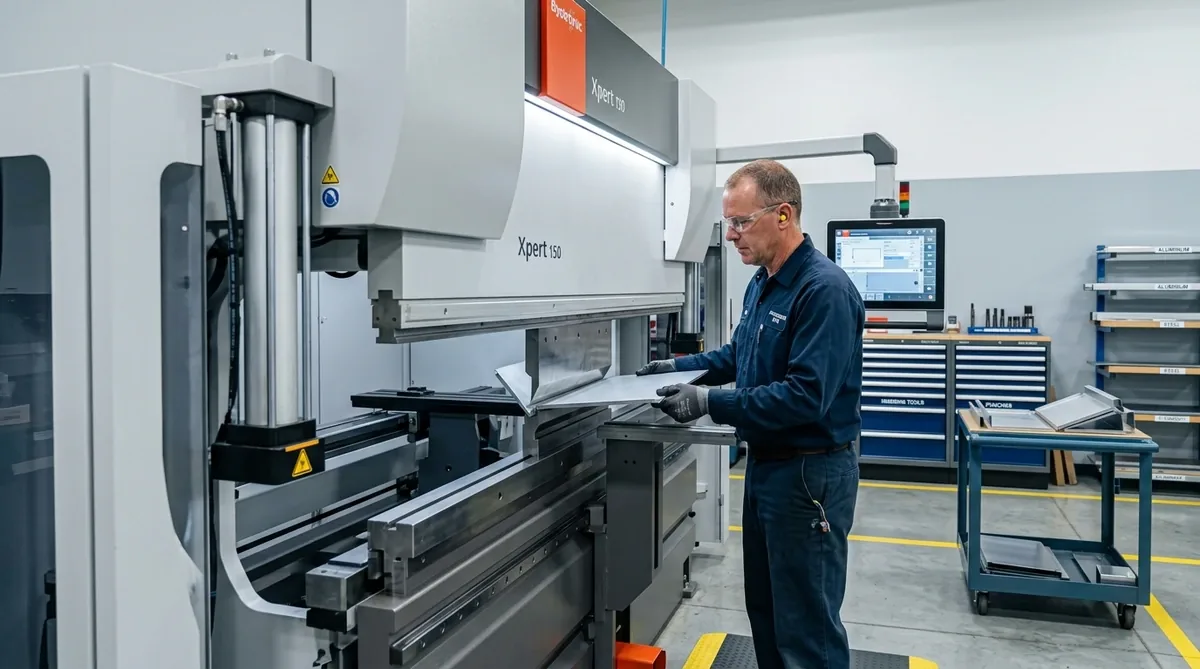

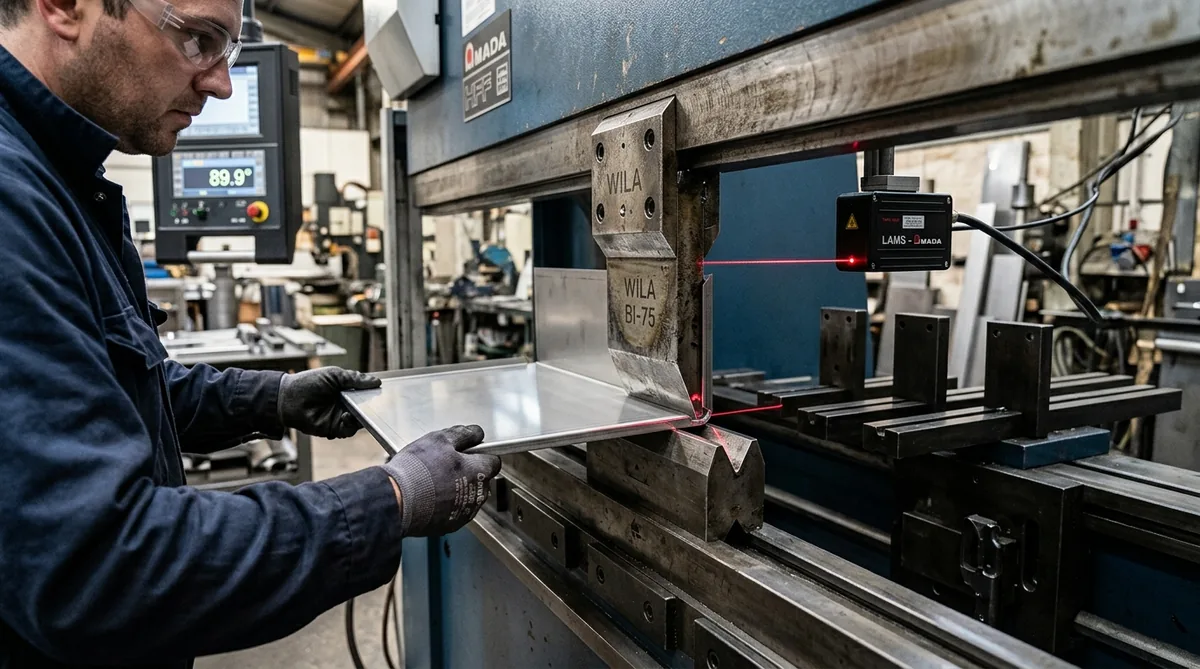

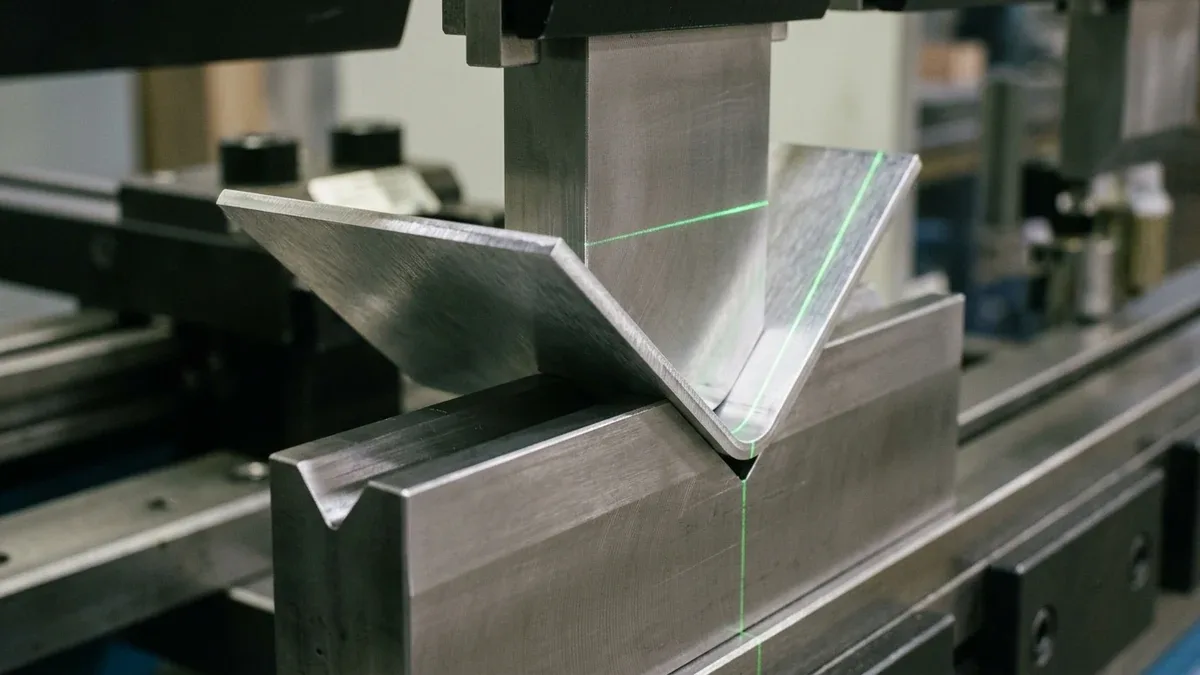

Figure 3: CNC press brake bending aluminum enclosure flange with real-time laser angle verification sensors.
3. Sheet Metal Design for Manufacturability (DFM) Guidelines
Designing sheet metal components with proper mechanical clearances and bend geometry prevents tool interference, cracking, and dimensional distortion. Review our essential engineering guidelines:
RULE 01
Minimum Inside Bend Radius
Rinside ≥ 1.0 × T
Ductile alloys (AL 5052-H32, Mild Steel): Rinside ≥ 1.0 × T. Heat-treated alloys (AL 6061-T6): Rinside ≥ 1.5 – 2.0 × T. Never model zero-radius sharp corners in sheet metal CAD models.
RULE 02
Hole & Slot Distance from Bends
Distance D ≥ 2.5 × T + R
Holes, slots, or cutouts positioned closer than 2.5× material thickness plus bend radius will distort into an egg shape during bending. If closer, incorporate an elongated relief slot along the bend axis.
RULE 03

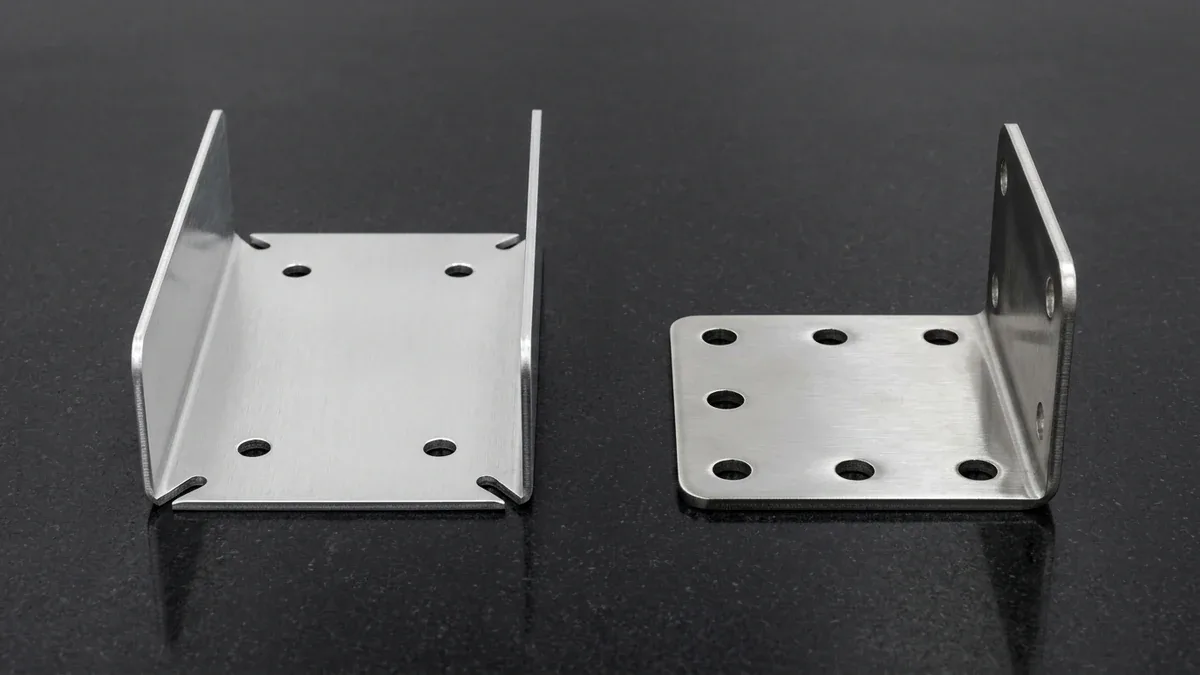

Bend Relief Notches
Prevent Corner Tearing
Where a bend flange transitions into an adjacent flat edge, integrate rectangular or tear-drop bend reliefs. Relief width W ≥ T (min 1.5 mm); relief depth H ≥ Rinside + T for clean, stress-free edges.
RULE 04
Minimum Flange Length
Lmin ≥ 4.0 × T + R
Short flanges can slip into the press brake V-die opening during forming, causing severe angular inaccuracy and edge scarring. Ensure adequate flange length for reliable die seating.
| Sheet Metal DFM Parameter | Governing Formula / Threshold | Shop-Floor Forming Physics & Quality Impact |
|---|---|---|
| 1. Uniform Sheet Gauge Thickness | tinner ≡ touter across the entire single component (0.5–12.0 mm standard stock) | Sheet metal parts are cut and bent from a single constant-gauge rolled sheet; variable wall thicknesses require CNC milling instead. |
| 2. Concentric Inside & Outside Bend Radii | Rin ≥ 1.0 × t (5052-H32, SPCC, 304) | Rout = Rin + t | Prevents outer tensile fiber micro-cracking and avoids sharp-pinch V-die coining marks; unify bend radii across the part for single-setup bending. |
| 3. Minimum Straight Flange Length | bmin ≥ 4.0 × t + Rin (Measured from outer tangent) | Ensures the sheet spans across both shoulders of the lower V-die (V = 6t to 8t) without slipping into the die opening during the punch stroke. |
| 4. Hole & Slot Setback from Bend Line | Dhole-to-bend ≥ 2.5 × t + Rin | Keeps circular mounting holes outside the plastic deformation zone so holes do not pull into teardrop ovals during 90° bending. |
| 5. Corner Bend Relief Notches | Width W ≥ t (min 1.5 mm); Depth L ≥ Rin + t | Laser-cut rectangular or obround tear-drop bend reliefs isolate folding strain and prevent corner tearing where adjacent flanges meet. |
| 6. PEM Self-Clinching Fastener Edge Clearance | Centerline-to-edge distance C ≥ 1.5 × Fastener Shank OD (per PEM table) | Prevents sheet edge bulging during hydraulic cold-flow clinching and ensures the press anvil clears adjacent bent flanges. |
| 7. Laser-Cut Hole Diameter vs. Sheet Thickness | Minimum hole diameter Ø ≥ 1.0 × t (or ≥ 1.0 mm minimum) | Piercing holes smaller than the sheet gauge causes molten blowback dross; tiny holes (< 1.0t) are CNC drilled or turret punched. |
| 8. Flat Pattern K-Factor & Bend Deduction | BA = (π/180) × θ × (Rin + K × t) | K ≈ 0.38 (Al 5052) / 0.44 (SPCC/304) | Supplying both 3D STEP and unfolded 2D DXF files allows our CAM engineers to calibrate exact V-die bend deductions before laser blanking. |
Figure 5: CNC press brake bending precision aluminum enclosure chassis with multi-axis automatic backgauge alignment for tight angle repeatability.
Comprehensive Sheet Metal Material Selection Matrix
Selecting the proper alloy balances formability, structural stiffness, weight, electrical conductivity, and corrosion resistance. Below is an engineering comparison of our standard stocked sheet materials:
| Material Grade | Mechanical & Forming Traits | Min Bend Radius | Surface Finish Compatibility | Typical Custom Parts |
|---|---|---|---|---|
| Aluminum 5052-H32 | Magnesium-alloyed non-heat-treatable aluminum. Outstanding ductility, zero bend cracking, high fatigue strength, marine corrosion resistance. | R = 1.0 × T | Anodizing (Clear/Black Type II), Powder Coating, Chromate Conversion (SurTec 650 / Alodine). | Avionics chassis, electronic enclosures, baseplates, drone skeletal arms, marine control panels. |
| Aluminum 6061-T6 | Structural grade with high yield strength (276 MPa). Requires larger bend radii along the grain to avoid fracture. Excellent machinability for hybrid parts. | R = 1.5 – 2.0 × T | Hard Anodizing (Type III), Powder Coating, Chromate Conversion (SurTec 650 / Alodine), Electroless Nickel Plating. | Heavy-duty structural frames, robot baseplates, drone skeletal arms, mounting plates. |
| Stainless Steel 304 / 304L | Austenitic chromium-nickel alloy. Superior corrosion resistance, excellent weldability, food-safe and medical-grade cleanliness. High work-hardening rate. | R = 1.0 × T | #4 Linear Brushed (Grain), Electropolishing, Chemical Passivation (ASTM A967), Bead Blasting. | Medical device housings, pharmaceutical cleanroom equipment, food processing tanks, splash guards. |
| Stainless Steel 316 / 316L | Contains 2-3% molybdenum for extreme resistance to chlorides, salt spray, and chemical pitting. Ideal for harsh acidic and marine environments. | R = 1.0 – 1.5 × T | Electropolishing (mirror smooth), Passivation, Pickling, Vapor Honing. | Marine sensor housings, surgical sterilization cassettes, chemical dosing cabinets, outdoor washdown boxes. |
| Cold Rolled Steel (SPCC / CRS) | Smooth, uniform surface with precise thickness control. Extremely easy to punch, form, and spot-weld. Requires protective coating to prevent rust. | R = 0.5 – 1.0 × T | Electrostatic Powder Coating, Zinc Plating (Clear/Yellow trivalent), Black Oxide, E-Coating. | 19″ rackmount server chassis, electrical junction boxes, home appliance skeletons, display consoles. |
| Galvanized Steel (SECC / SGCC) | Electrolytic (SECC) or hot-dip (SGCC) zinc coated steel sheet. Sacrificial zinc layer prevents corrosion even at cut laser edges. | R = 1.0 × T | Pre-galvanized as-cut surface, or post-forming powder coating. | HVAC duct dampers, outdoor telecommunication enclosures, power supply internal partitions. |
| Copper C1100 / Brass H62 | Electrolytic tough-pitch copper C1100 (min. 99.9% Cu, about 100% IACS conductivity) and H62 (62/38) brass. Excellent thermal dissipation and electromagnetic shielding. | R = 0.5 – 1.0 × T | Electro-Tin Plating (Bright/Matte), Silver Plating, Nickel Plating, Anti-Tarnish Passivation. | Heavy-current battery busbars, RF/EMI shielding cans, heat sink contact plates, grounding lugs. |
Sheet Metal Fabrication Tolerances & Process Capabilities
We fabricate sheet metal according to rigorous industrial standards. Unless tighter engineering tolerances are explicitly specified on 2D inspection drawings, general tolerances adhere to ISO 2768-mK:
| Manufacturing Operation | Capacity & Sheet Limits | Standard Tolerance | Precision Tolerance | Key Quality Criteria |
|---|---|---|---|---|
| Fiber Laser Cutting | 12kW Laser, 3000 × 1500 mm bed: Steel 0.5–25 mm (24 Ga–1.0″), AL 0.5–12 mm (24 Ga–0.47″), Copper 0.5–8 mm | ±0.12 mm | ±0.05 mm (±0.002″) | Burr height ≤ 0.05 mm, optical edge squareness, zero dross with N2 cut |
| CNC Press Brake Bending | Up to 250 Tons, 3200 mm bend length, multi-axis automatic backgauging | Linear: ±0.25 mm Angle: ±1.0° | Linear: ±0.15 mm (±0.006″) Angle: ±0.5° | Hydraulic crowning compensation, zero fracture along bend line |
| Turret Punching & Forming | Auto-index stations, sheet gauge 0.5–3.5 mm (24 Ga–10 Ga / 0.020″–0.138″), progressive nibbling | Hole: ±0.10 mm Pitch: ±0.15 mm | Hole: ±0.05 mm Pitch: ±0.08 mm | Uniform hole pattern spacing, sharp louver cutouts without edge deformation |
| PEM Hardware Insertion | Automated feed hydraulic press: M2 to M10 studs, nuts, blind standoffs | Location: ±0.12 mm | Location: ±0.05 mm | 100% thread gauge verification (6H/6g), zero spin / push-out retention |
| Welding & Assembly | TIG, MIG, Handheld Fiber Laser Welding, Spot Resistance Welding | ISO 13920-B | ISO 13920-A (Planished flush ±0.1 mm) | Full weld penetration, zero weld spatter, leak-tight IP65 seal verification |
| Surface Finishing & Coating | Automated powder coating line, anodizing tanks, plating, silkscreening | Film: 60–100 μm (2.4–4.0 mil) | Film ±10 μm (Masked threads 6H verified) | Cross-hatch adhesion 5B, 48–96h salt spray resistance, high UV durability |
4. Custom Sheet Metal Solutions by Industry
Our precision sheet metal parts and custom welded enclosures are trusted by global OEMs and engineering innovators across demanding industrial verticals:
Server & IT
19″ Server Racks & Enclosures
1U–4U subracks, server chassis, and power distribution units with slide rails, fan cutouts, and pre-assembled PEM hardware. Explore electronics enclosures.
Robotics
Robotics Structural Chassis
Heavy-duty internal sub-frames, robotic arm brackets, battery trays, and baseplates combining sheet metal with precision CNC milled mounting hubs. See our robotics parts.
Medical
Medical Diagnostic Housings
Cleanroom diagnostic consoles, centrifuge shells, fluid handling carts, and MRI-compatible aluminum/stainless enclosures. Explore our medical device capabilities.
Outdoor
NEMA & IP65 Weatherproof Cabinets
Marine-grade 316 stainless or powder-coated galvanized enclosures with continuous welded seams, silicone gaskets, and rain hoods for harsh outdoor environments.
Figure 6: Custom powder-coated sheet metal enclosure assembly with installed PEM standoffs on an electronic assembly workbench.
5. Quality Assurance & Metrology Inspection
Dimensional verification and fastener integrity testing are conducted at every stage of fabrication:
FAIR Metrology
First Article (FAIR) Inspection

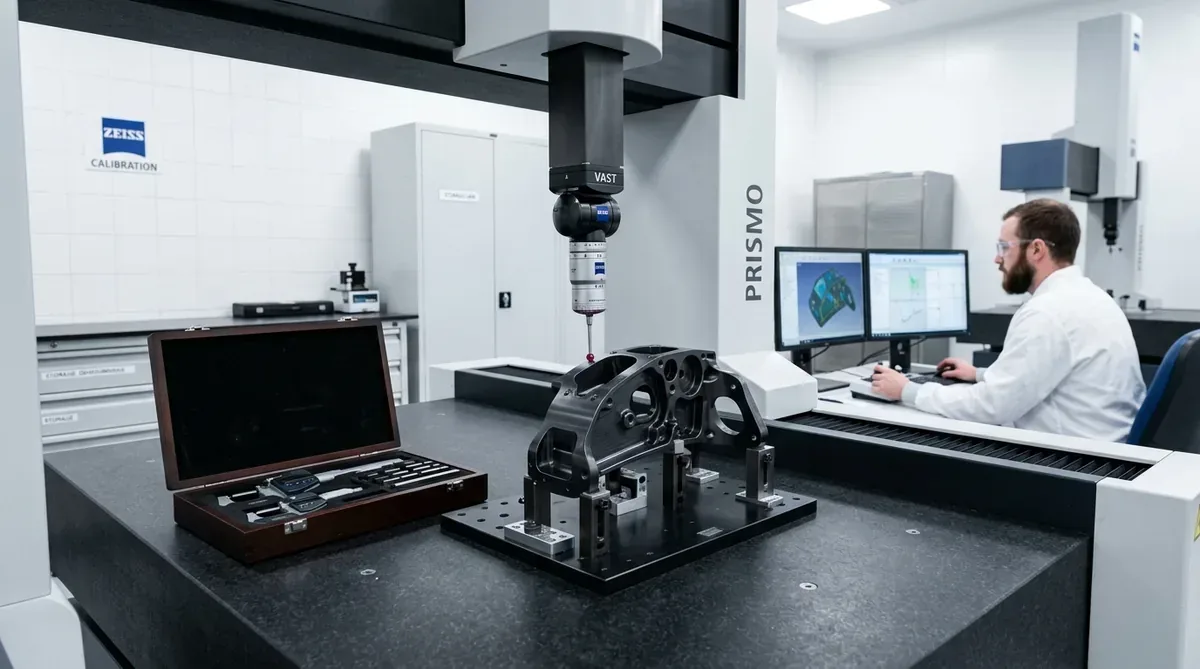

The first flat blank off the laser and the first formed part undergo 100% 2D optical flat-pattern scanning, digital angle protractor gauging, and mating assembly fit-up inspection before commencing batch fabrication, verifying hole centers and bend angles against 2D drawings.
Hardware QA
PEM Push-Out & Torque Testing
Every hardware batch undergoes push-out and torque-out destructive testing on sacrificial test tabs to verify cold-flow interlock into the sheet metal, eliminating loose hardware during assembly.
Finishing QA
Coating Adhesion & Film Thickness
Powder coating and anodizing undergo cross-hatch adhesion testing (ASTM D3359 Class 5B), magnetic/eddy-current dry film thickness (DFT) checks, and 48-to-96h salt spray corrosion verification.

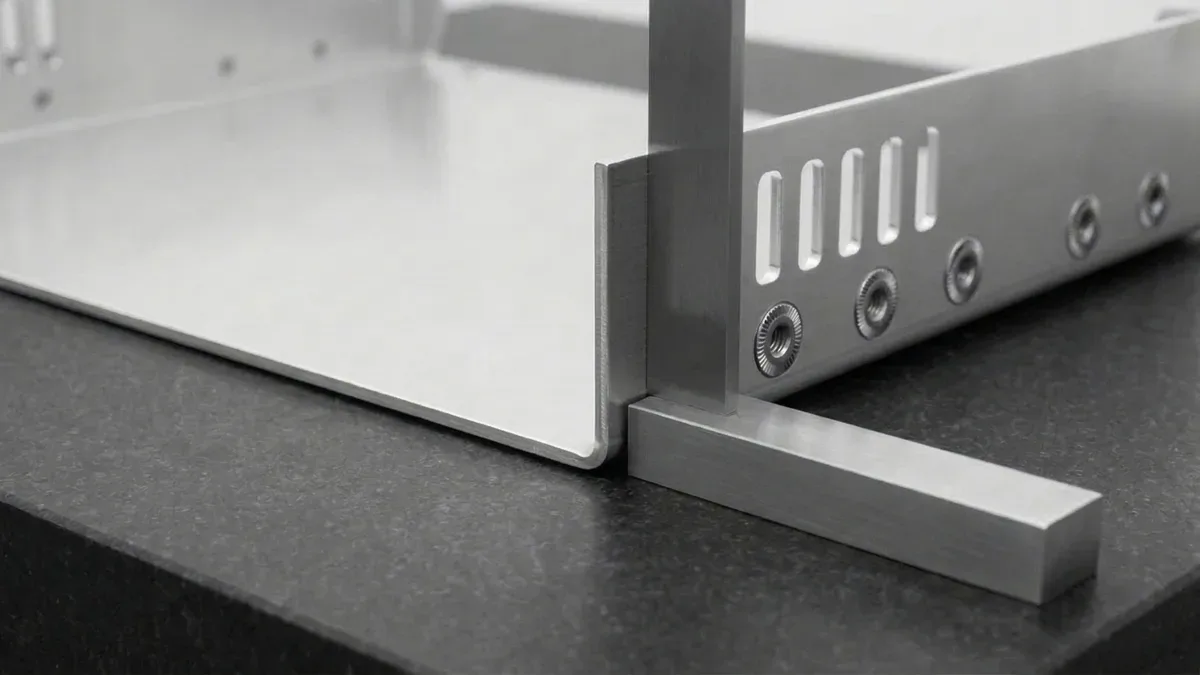

Figure 7: Precision 90° machinist square inspection verifying perpendicularity and flush installation of self-clinching PEM nuts on an aluminum chassis.
UPFRONT SHEET METAL DFM
Validate Bend Reliefs, Flange Heights & Tolerances
Prevent tearing and dimensional creep before press brake setup. Our engineers analyze K-factors, minimum bend radii, and fastener edge clearances on your CAD within 24 hours.
6. Frequently Asked Questions (FAQ)
What CAD file formats do you accept for sheet metal fabrication quotes?
We prefer 3D CAD models in STEP (.step, .stp) or IGES (.igs) format, accompanied by 2D vector drawings in DXF or DWG for flat blank profiles. Providing 2D PDF engineering drawings with critical tolerance callouts, PEM hardware part numbers, and surface finish notes ensures the fastest and most accurate quotation within 24 hours.
What is the difference between air bending, bottoming, and coining on a press brake?
Air bending forms the sheet by pressing it partially into the V-die without touching the bottom, requiring the lowest tonnage and allowing variable angle adjustments via CNC backgauge control. Bottoming forces the sheet into contact with the die angle for higher repeatability, while coining stamps the sheet under extreme tonnage to permanently eliminate springback, achieving the tightest tolerances at the expense of higher tool wear.
How do you prevent carbon steel contamination when fabricating stainless steel and aluminum?
We maintain strict material segregation within our workshop. Stainless steel and aluminum parts are processed using dedicated stainless steel press brake tooling, non-marking composite die films, and separate deburring/sanding tables. We use nitrogen assist gas during laser cutting to keep cut edges oxide-free and preserve corrosion resistance.
Can you supply fully finished custom enclosures with powder coating and silk screening?
Yes. We offer complete turnkey secondary finishing through our in-house surface finishes division, including electrostatic powder coating (RAL and custom Pantone textures), Type II/III anodizing, chromate conversion (SurTec 650 / Alodine), zinc plating, and precision silk screening or laser engraving for logos, port legends, and safety markings (see our part marking & engraving DFM guide).
Ready to Prototype or Scale Your Custom Sheet Metal Enclosures?
From 1-off functional chassis prototypes in 4 to 8 business days ex-factory (7 to 12 business days with powder coating or anodizing; international DHL/FedEx/UPS air transit adds 3 to 5 days) to series production runs (7 to 30 business days), AS Prototypes delivers precision sheet metal parts with zero quality compromise. Upload your 3D CAD models (STEP/IGES) or 2D DXF flat patterns to receive a comprehensive DFM review and instant quote.
• Strict NDA Confidentiality• Dynamic Crowning Bending• 100% Mating Fit-Up & Fixture Verified• 4–8 Day Prototype Turnaround

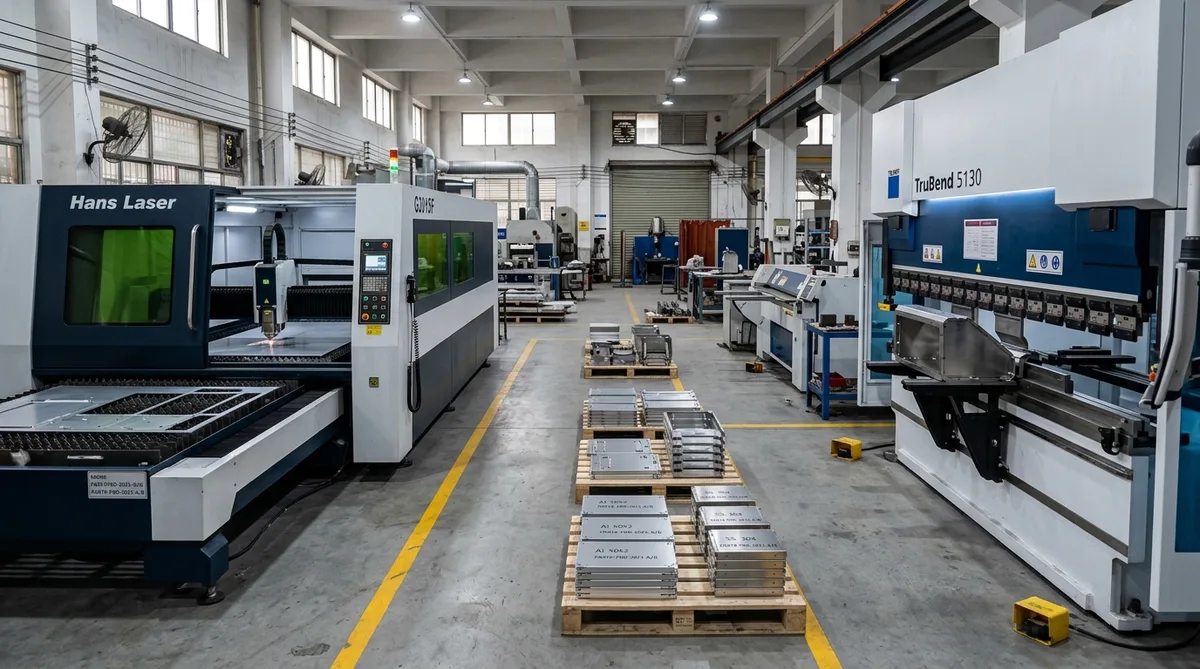

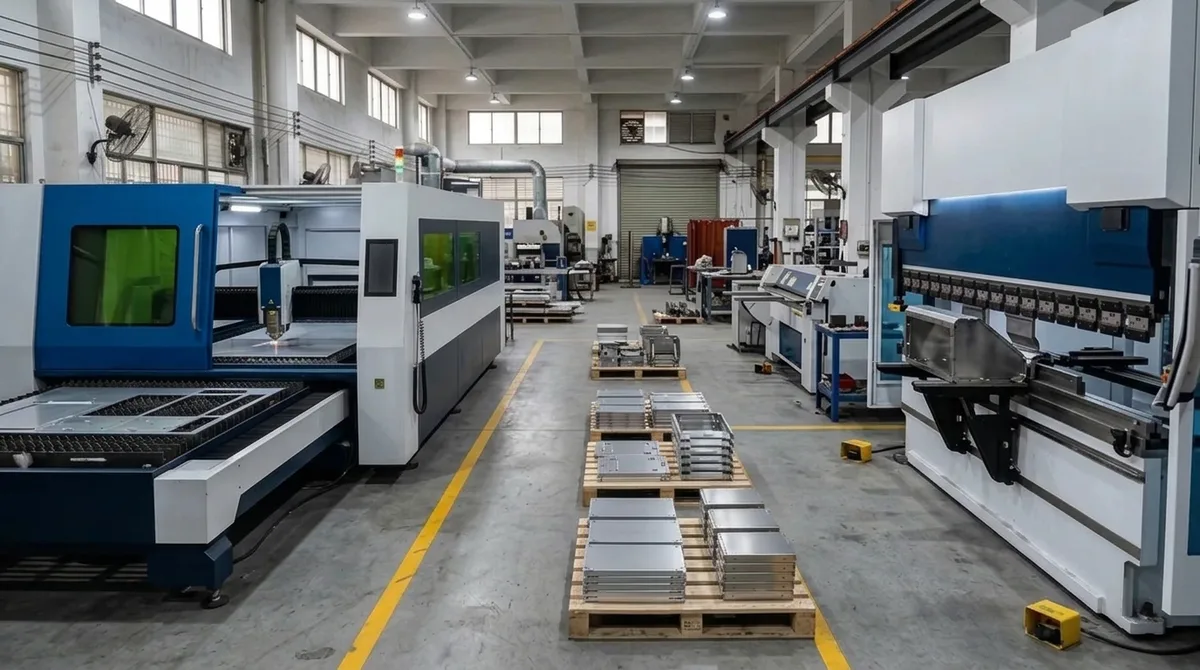

Figure 8: High-precision sheet metal fabrication center equipped with high-speed fiber laser cutting systems and multi-axis CNC hydraulic press brakes.
