DIGITAL LIGHT PROCESSING (DLP) • OPAQUE MATTE RED WAX & TAN WAX • 15–25 µM LAYERS • SILICONE MOLD MASTERS & MICRO PARTS

DLP Red Wax 3D Printing Services: Micro Parts & Mold Masters

Q: Why is high-detail DLP resin opaque terracotta-red or tan-brown (Red Wax)?

The opaque matte terracotta-red or sandstone-tan color comes from micro-dispersed ceramic/wax pigments and UV blockers engineered into the photopolymer. Unlike white or clear resins where UV light scatters sideways, the red-wax pigment absorbs stray photons, preventing over-cure in 0.25 mm connector slots and providing high visual contrast for inspecting 15–25 µm surface details.

Q: Why do silicone mold makers prefer DLP Red Wax master patterns over standard SLA?

DLP red wax achieves Ra 0.4–0.8 µm smoothness and sharp micro-sipes (such as tire treads and diamond knurling) that cannot be hand-sanded without losing detail, and thermally post-cured ceramic/wax-filled red wax resins do not cause platinum-cure RTV-2 silicone rubber inhibition.

Q: How do you inspect miniature DLP Red Wax parts without deforming thin 0.25 mm walls?

All micro-nano DLP red wax components are inspected using non-contact 2.5D telecentric optical vision measurement systems (VMM) on a backlit glass stage, verifying hole pitch, gear tooth profile, and concentricity to ±0.02–0.05 mm without contact probe deflection.

Q: What is the ex-factory turnaround time for DLP Red Wax prototypes?

Standard unpainted DLP red wax prototypes ship ex-factory within 4 to 8 business days after CAD DFM approval, while painted cosmetic models ship within 7 to 12 business days ex-factory. International express air transit adds 3 to 5 business days.

Opaque Matte Red Wax (RCP30 / R11 / MD1500)15–25 µm (0.0006–0.0010 in) LayersRa 0.4–0.8 µm (16–32 µin) Smoothness±0.02–0.05 mm Micro Accuracy4–8 Business Days Ex-Factory

At AS Prototypes, our micro-additive workshop operates industrial Digital Light Processing (DLP) projectors running high-opacity ceramic/wax-filled terracotta-red and tan-brown photopolymers (commonly known in manufacturing as Red Wax / Brown Wax DLP, such as EnvisionTEC RCP30/R11 and tough matte red-wax resins). Because the dense terracotta pigment blocks lateral UV light bleed across each 15–25 µm (0.015–0.025 mm) layer, DLP red wax delivers razor-sharp 90° edges, zero visible stair-stepping (Ra 0.4–0.8 µm), and dimensional repeatability of ±0.02–0.05 mm (±0.0008–0.0020 in)—making it the premier choice for fine-pitch electronic connectors, RTV silicone mold master patterns, tire tread mold masters, micro-gears, and lost-wax casting patterns.

LAYER RESOLUTION

15 – 25 µm

0.015 – 0.025 mm (0.0006 – 0.0010 in) Z-step

XY PIXEL PITCH

22 – 35 µm

DMD micro-mirror projector resolution

AS-PRINTED FINISH

Ra 0.4 – 0.8 µm

16 – 32 µin powdery-matte terracotta surface

EX-FACTORY TURNAROUND

4 – 8 Business Days

Excludes 3–5 days international air transit

Request an Instant DLP Red Wax Quote →Compare Red Wax Grades ↓

Engineering Takeaways: Why Specify DLP Red Wax Over Standard SLA?

Zero UV Light-Bleed in Micro-Cavities: Standard white or clear SLA resins suffer from laser over-cure (“light bleed”) inside 0.3 mm connector slots and fine sipes. Opaque terracotta red wax absorbs stray 405 nm photons, preserving crisp square pinholes and razor-sharp relief textures.
Unmatched Master Pattern for RTV Silicone Molding: High-wax red/tan DLP resins contain no unreacted sulfur compounds that inhibit platinum-cure RTV-2 silicone rubber, reproducing micro-knurling and tire-tread sipes directly into silicone molds without heavy hand-sanding.
Micro-Part Envelope Focus: High-resolution DLP projectors focus millions of DMD pixels onto a compact build window (typically 90 × 50 × 100 mm to 192 × 108 × 200 mm). Parts larger than 150 mm should transition to industrial SLA 3D printing.

How DLP Red Wax 3D Printing Works: High-Opacity Micro-Projection

Unlike galvanometer laser SLA that traces vectors point by point, Digital Light Processing projects an entire cross-sectional slice simultaneously onto a vat of pigmented wax-filled photopolymer:

1. Digital Micro-Mirror (DMD) Optical Projection: An industrial 4K/1080p DMD chip modulates a 385 nm or 405 nm UV LED source through a telecentric lens, locking XY pixel pitch to 22–35 µm (0.0009–0.0014 in) across the entire build platform.
2. High-Opacity Terracotta & Tan Wax Pigmentation: Fine ceramic/wax fillers give the resin its signature velvety matte salmon-terracotta or sandstone-tan appearance, restricting UV cure depth strictly to each 15–25 µm layer and preventing roof sag over micro-channels.
3. Grayscale Sub-Pixel Anti-Aliasing: Boundary voxel light modulation smooths curved walls and helical gear flanks, eliminating pixel staircase artifacts and producing an injection-mold-like matte surface straight from the ultrasonic bath.

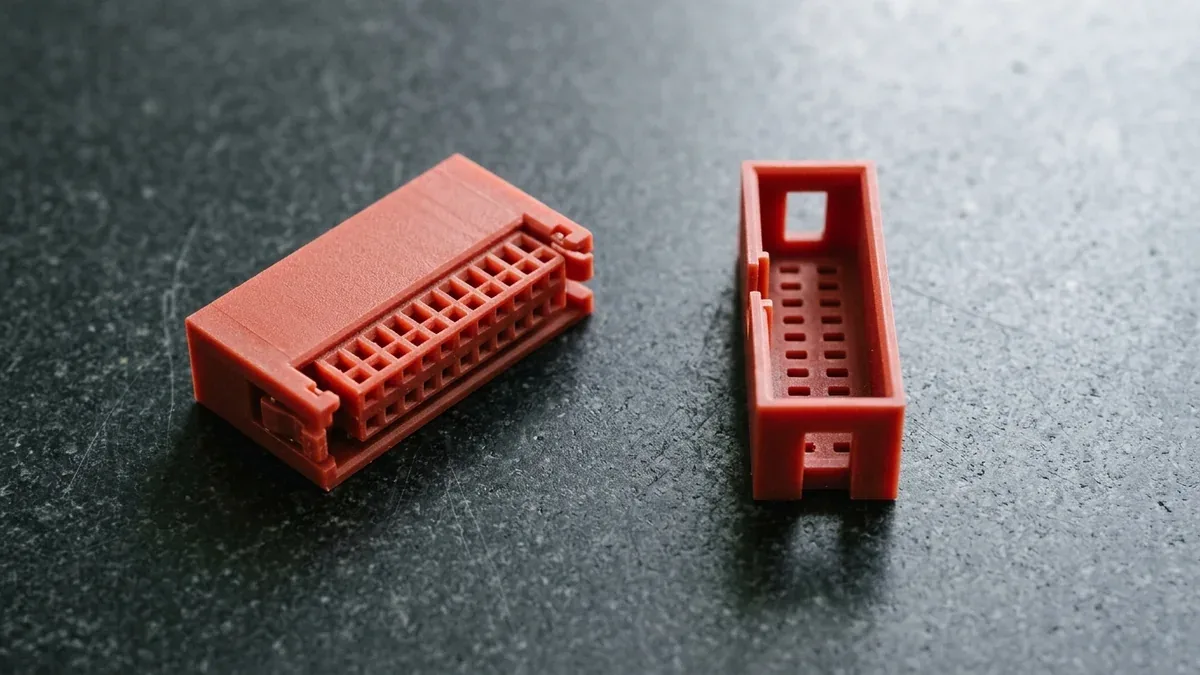

Two mating DLP red wax 3D printed board-to-board electronic connector housings with 0.25mm partition walls

Figure 1: Micro-mechanical electronic prototyping: mating board-to-board connector housings printed in opaque matte red wax resin with 0.25 mm partition walls and crisp snap-fit latches.

DLP Red Wax vs. Standard SLA vs. Swiss Micro-CNC Machining

Use this engineering comparison matrix to select the optimal process for miniature components, textured mold masters, and fine-pitch housings:

Table 1. Micro-Nano DLP Red Wax vs. Industrial SLA vs. Swiss CNC Turning (Metric & Imperial)
Engineering Parameter	Micro-Nano DLP (Red / Tan Wax)	Standard Industrial SLA Resin	Swiss Precision CNC Turning
Layer Thickness (Z-Axis)	15 – 25 µm (0.0006 – 0.0010 in)	50 – 100 µm (0.0020 – 0.0040 in)	Continuous subtractive toolpath
Typical Dimensional Tolerance	±0.02 – ±0.05 mm (±0.0008 – ±0.0020 in)	±0.10 – ±0.20 mm per 100 mm	ISO 2768-mK (Key fits ±0.010 – ±0.020 mm)
As-Built Surface Roughness	Ra 0.4 – 0.8 µm (16 – 32 µin, matte)	Ra 0.8 – 1.6 µm (32 – 63 µin)	Ra 0.4 – 1.6 µm (16 – 63 µin)
Min. Wall / Partition Thickness	0.20 – 0.30 mm (0.008 – 0.012 in)	0.60 – 0.80 mm (0.024 – 0.031 in)	0.30 – 0.50 mm (metal deflection limit)
Internal Corner Geometry	True 90° square micro-corners	Slight laser spot radius (R ≥ 0.08 mm)	Limited by end-mill radius (R ≥ 0.15 mm)
Primary Industrial Role	Fine-pitch connectors, RTV silicone mold masters, tire tread masters, micro-gears	Medium-to-large enclosures, clear optical housings, general form prototypes	Load-bearing metal shafts, surgical pins, high-pressure fluid valves

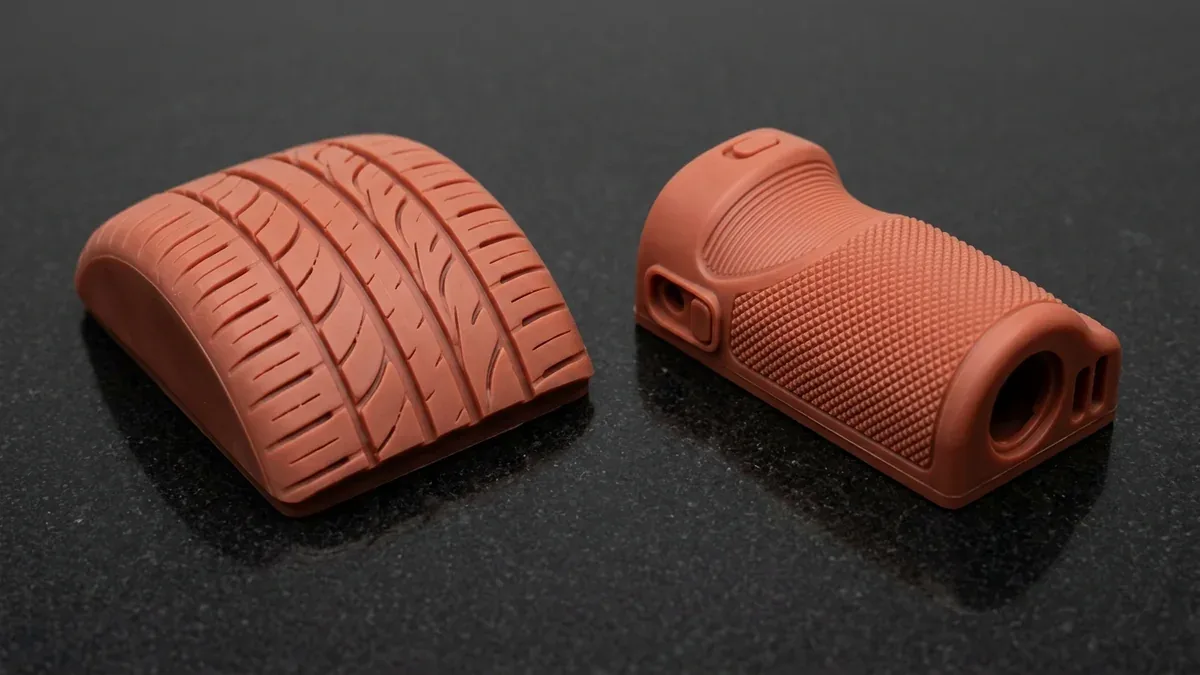

Two DLP red wax 3D printed master patterns: sculpted tire tread segment block and diamond-knurled instrument grip housing

Figure 2: High-definition master patterns for RTV silicone molding and tooling: automotive tire tread segment with sharp micro-sipes (left) and diamond-knurled ergonomic housing master (right).

DLP Red Wax & Brown Wax Material Grades & Datasheet Properties

We stock four specialized DLP red-wax and brown-wax photopolymer formulations matched to functional prototyping, RTV silicone molding, or lost-wax burnout:

Table 2. Industrial DLP Red Wax & Tan Wax Photopolymer Material Specifications
Material Grade & Color	Tensile Strength	Flexural Modulus	Elongation	HDT @ 0.45 MPa	Best Engineering Application
Imported Ceramic-Filled Red Wax (RCP30 / R11 Equivalent, Warm Terracotta)	52 – 60 MPa (7.5 – 8.7 ksi)	2,800 – 3,300 MPa	3 – 5%	65 – 75 °C (149 – 167 °F)	Master patterns for RTV silicone molding, tire tread blocks, fine-pitch connector housings, micro-gears
Tough Matte Red Wax (MD1500 ABS-Like Terracotta Resin)	45 – 52 MPa (6.5 – 7.5 ksi)	2,100 – 2,450 MPa	10 – 15%	62 °C (144 °F)	Snap-fit electronic housings, thin-wall terminal blocks, painted cosmetic display models, ergonomic grip prototypes
High-Detail Tan / Brown Wax (Sandstone-Clay Master Resin)	55 – 64 MPa (8.0 – 9.3 ksi)	2,900 – 3,400 MPa	3 – 6%	72 °C (162 °F)	Shoe-sole and automotive tire tread master molds, micro-relief industrial textures, high-contrast 3D optical scanning masters
Direct Castable Red / Purple Wax (High-Wax Investment Grade)	22 – 30 MPa (3.2 – 4.4 ksi)	900 – 1,300 MPa	4 – 7%	52 °C (126 °F)	Direct lost-wax investment casting in brass, bronze, silver, and stainless steel (< 0.01% ash residue)

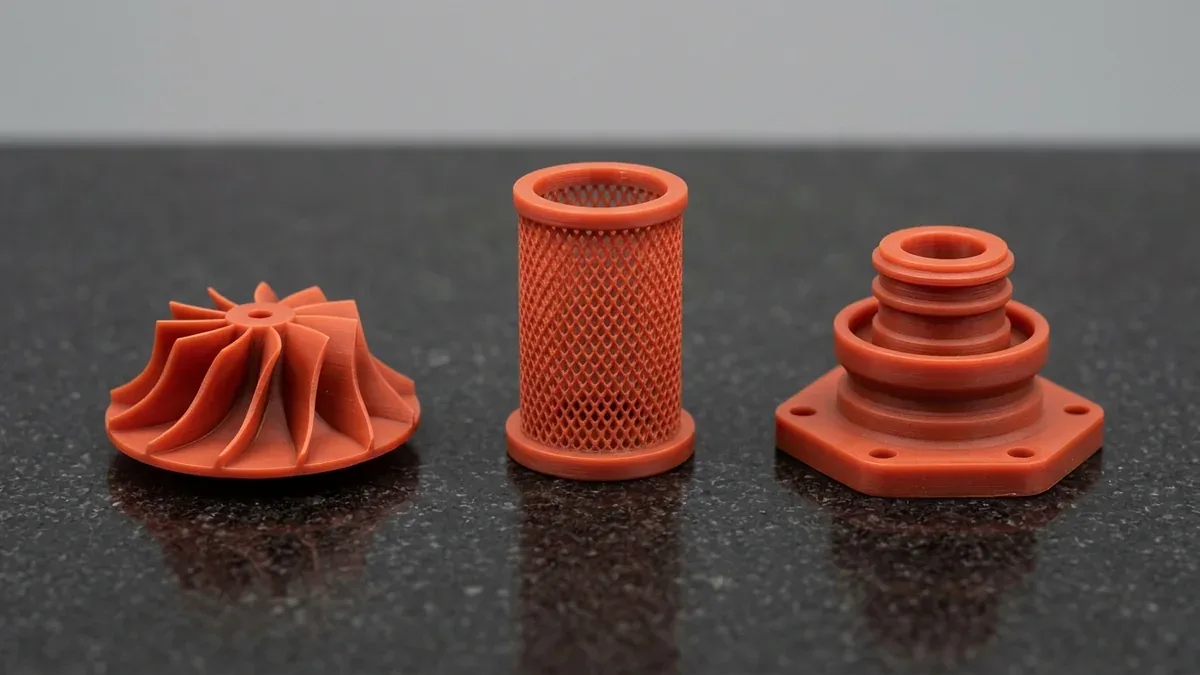

Three DLP red wax 3D printed components: curved-blade micro-impeller, diamond-mesh filter cage, and hexagonal valve body

Figure 3: Complex overhanging micro-geometries: 12-blade radial micro-impeller, 0.20 mm strut diamond-mesh filter cage, and stepped valve housing printed in high-wax photopolymer.

8-Point DFM Engineering Rules for DLP Red Wax Parts

Follow these 8 quantitative design rules when preparing CAD files for bottom-up micro-DLP red wax printing:

Table 3. DLP Red Wax Design for Additive Manufacturing (DfAM) Limits & CAD Recommendations
Geometry Feature	Recommended Design Limit	Extreme Minimum Limit	Shop-Floor Engineering Guidance
1. Supported Structural Walls	≥ 0.35 mm (0.014 in)	0.20 mm (0.008 in)	Connector partition walls connected on 3 sides print cleanly at 0.25 mm without warping during FEP film peel.
2. Unsupported Cantilever Walls	≥ 0.60 mm (0.024 in)	0.40 mm (0.016 in)	Add 0.15 mm base fillets to freestanding fins or impeller blades to resist hydrodynamic resin peel forces.
3. Micro Pinholes & Square Sockets	≥ Ø0.35 mm (0.014 in)	Ø0.20 mm (0.008 in)	Through-holes flush easily during ultrasonic IPA/TPM washing; blind holes deeper than 3×D require side vent slots.
4. Embossed Text & Surface Sipes	0.15 mm width × 0.15 mm depth	0.08 mm (0.003 in)	Opaque terracotta pigment gives exceptional shadow contrast on 0.15 mm recessed tire sipes and diamond knurling.
5. Moving Assembly Clearance	0.15 – 0.20 mm (0.006 – 0.008 in)	0.10 mm (0.004 in)	Required radial air gap for pre-assembled micro-gears or sliding latches to prevent residual monomer bridging.
6. Directly Printed Micro-Threads	M1.6 and larger (ISO metric)	M1.2 fine pitch	Apply 0.03–0.05 mm radial thread flank offset in CAD so printed male/female micro-threads assemble smoothly.
7. Hollow Cavity Escape Ports	≥ 2 holes × Ø1.5 mm (0.059 in)	Ø1.0 mm (0.039 in)	Closed hollow chambers act as suction cups against the FEP vat film; place vent holes at the lowest Z-elevation.
8. Maximum Single-Piece Envelope	≤ 120 × 70 × 100 mm	190 × 108 × 200 mm	Keep parts compact to preserve 22–35 µm XY pixel resolution; larger housings should be routed to SLA.

4-Level Post-Processing & Surface Finishing Tiers for Red Wax Parts

Specify the required surface finish tier on your RFQ based on whether the red wax print is a functional connector, a silicone molding master, or a painted display model:

Table 4. DLP Red Wax Post-Processing Tiers, Lead Times & Inspection Standards
Finish Tier	Post-Processing Operations	Surface Roughness	Ex-Factory Lead Time	Recommended Use Case
Level 1: Standard Micro-Cleaned	Dual-stage ultrasonic IPA/TPM wash, micro-tip support removal, 405 nm + 60 °C thermal UV cure	Ra 0.4 – 0.8 µm (natural matte red/tan wax)	4 – 6 Business Days	Board-to-board connectors, micro-gears, internal mechanisms, dimensional fit checks
Level 2: Silicone Master Grade	Level 1 + microscopic support-Witness blending under 20× stereo microscope, anti-inhibition UV bake	Ra 0.4 µm (zero support nibs on parting surfaces)	5 – 8 Business Days	Master patterns for RTV-2 silicone vacuum casting & tire tread mold blocks
Level 3: Cosmetic Painted / Plated	Fine primer coat, custom Pantone / RAL spray painting, silk-screen legends, or vacuum metallization	Smooth matte, satin, or high-gloss coat	7 – 12 Business Days	Exhibition appearance models, wearable electronics bezels, sculpted promotional masters
Level 4: Direct Castable Wax Pattern	Solvent mist cleaning, uncured monomer purge, zero-ash burnout conditioning (no primer/paint)	Ra 0.4 – 0.8 µm raw castable wax	4 – 8 Business Days	Lost-wax investment casting into brass, bronze, sterling silver, or 316L stainless steel

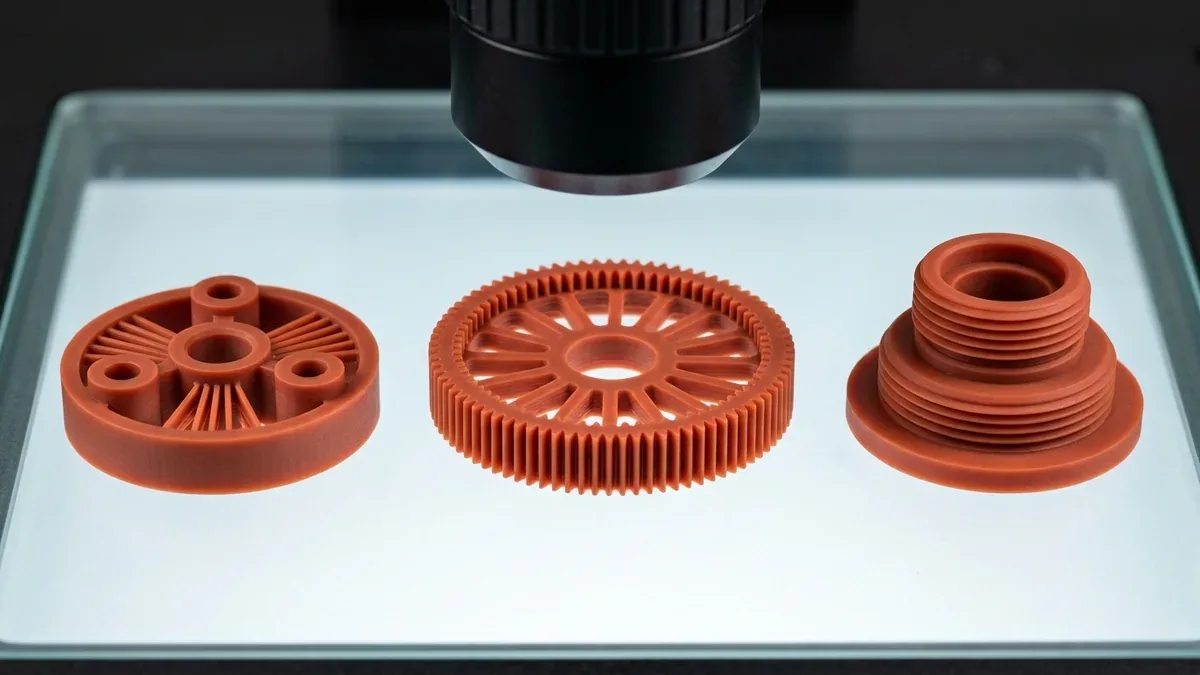

Non-contact optical vision measurement system inspecting three DLP red wax 3D printed micro-parts on backlit glass stage

Figure 4: Non-contact telecentric optical vision metrology: verifying tooth profile, radial pitch, and micro-thread concentricity on opaque matte DLP red wax prototypes without contact deformation.

Core Industrial Applications of DLP Red Wax 3D Printing

RTV Silicone & Tire MoldsMaster Tooling

Automotive tire tread segment masters, shoe-sole micro-textures, and knurled housing masters for platinum-cure polyurethane vacuum casting with zero silicone cure inhibition.

Fine-Pitch ConnectorsElectronics

Board-to-board receptacle housings, IC burn-in test sockets, and micro-switch bobbins with 0.25 mm partition walls and crisp snap-fit locking tabs. Explore our electronics capabilities.

Micro-Gears & FluidicsMicro-Mechanics

Miniature helical and planetary gears, 12-blade micro-impellers, diamond-mesh filter cages, and M1.2–M3.0 threaded optical barrels verified by non-contact optical vision metrology.

Sculpted & Casting MastersMicro-Relief

High-relief figurines, watchmaking bezels, filigree jewelry wax patterns, and intricate anatomical/industrial miniatures where 15–25 µm layers eliminate manual polishing.

Frequently Asked Questions: DLP Red Wax 3D Printing

Q1: Why is high-detail DLP resin opaque terracotta-red or tan-brown (“Red Wax”)?

The distinctive opaque matte terracotta-red or sandstone-tan color comes from micro-dispersed ceramic/wax pigments and UV blockers engineered into the photopolymer (such as EnvisionTEC RCP30/R11 and tough red-wax resins). Unlike white or clear resins where UV light scatters sideways into adjacent resin, the red-wax pigment absorbs stray photons—preventing over-cure in 0.25 mm connector slots and providing high visual contrast so engineers can inspect 15–25 µm surface details easily.

Q2: Why do silicone mold makers prefer DLP Red Wax master patterns over standard SLA?

Two reasons: First, DLP red wax achieves Ra 0.4–0.8 µm smoothness and sharp micro-sipes (such as tire treads and diamond knurling) that cannot be sanded by hand without destroying the texture. Second, thermally post-cured ceramic/wax-filled red wax resins are inert against platinum-cure RTV-2 silicone rubber, preventing sticky un-cured mold surfaces at the parting line.

Q3: How do you inspect miniature DLP Red Wax parts without deforming thin 0.25 mm walls?

We never use contact tactile CMM probes or heavy caliper jaws on delicate 0.20–0.35 mm resin walls. All micro-nano DLP red wax components are inspected on non-contact 2.5D telecentric optical vision measurement systems (VMM) on a backlit glass stage, verifying hole pitch, gear tooth profile, and concentricity to ±0.02–0.05 mm.

Q4: What is the ex-factory turnaround time for DLP Red Wax prototypes?

Standard unpainted DLP red wax prototypes (1–50 pcs) ship ex-factory within 4 to 8 business days after CAD DFM approval. Painted or surface-finished display models require 7 to 12 business days ex-factory. International express air transit (DHL/FedEx/UPS) adds 3 to 5 business days.
