SLA vs SLS 3D Printing: Engineering Decision & Cost Guide

Additive manufacturing has revolutionized product development workflows, compressing design cycles from months into days. However, selecting the incorrect 3D printing technology during the prototyping phase introduces severe validation risks: functional snap-arms snapping unexpectedly, optical light guides clouding under heat, or thin walls warping during environmental testing.

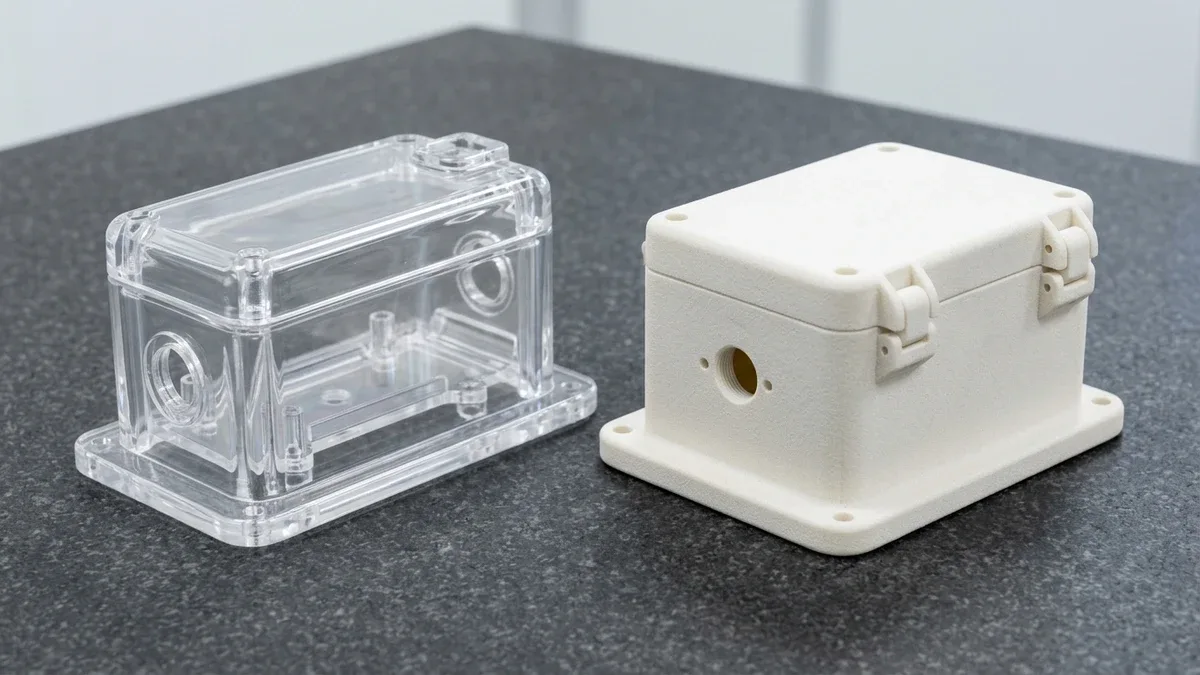

Among polymer additive systems, Stereolithography (SLA) and Selective Laser Sintering (SLS) stand as the two dominant industrial standards. While both build parts additively layer-by-layer using focused laser energy, their underlying polymer chemistry, laser physics, mechanical load capacities, and post-processing requirements are completely distinct.

At AS Prototypes, our industrial additive manufacturing facility operates large-scale SLA resin vats alongside high-capacity SLS nylon powder beds, backed by automated post-curing ovens, chemical vapor smoothing chambers, and precision CNC finishing centers. In this comprehensive technical guide, we evaluate photopolymerization kinetics against laser sintering thermodynamics, compare mechanical and thermal properties across genuine engineering materials, analyze 3D nesting economics, and provide clear engineering rules to select the ideal process for your project.

1. Physical Principles: Photopolymerization vs Powder Sintering

Understanding the molecular mechanisms of each process explains their divergent mechanical and cosmetic characteristics.

1.1 Stereolithography (SLA): Jacobs Photopolymerization Kinetics

Stereolithography builds parts by selectively curing liquid photocurable monomer resins inside a vat using a solid-state ultraviolet laser (λ = 355 nm). The laser beam traces cross-sections across the resin surface, exciting photoinitiators that trigger free-radical or cationic chain polymerization, crosslinking liquid oligomers into a rigid solid thermoset polymer.

The cure depth (C_d) of the photopolymerized layer is modeled by the classic Jacobs Working Curve Equation:

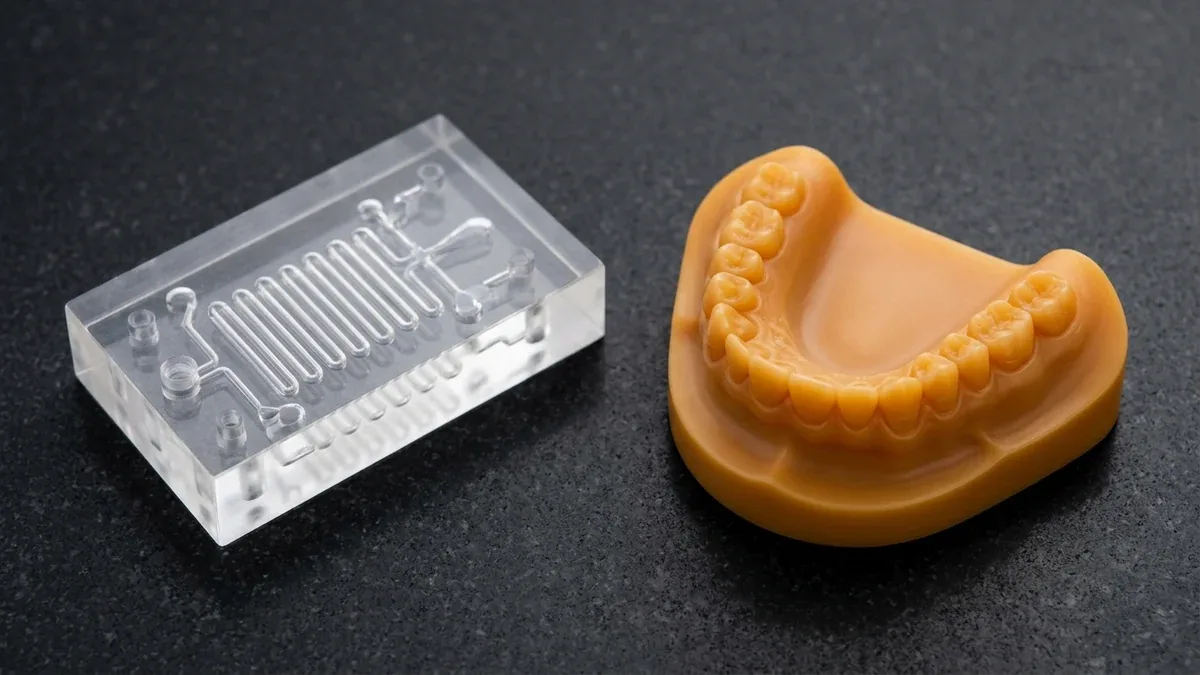

Where D_p is the resin penetration depth at the 355 nm wavelength (typically 0.10 to 0.15 mm), E_max is the peak laser exposure energy delivered to the resin surface (mJ/cm²), and E_c is the critical gel-point exposure energy required for liquid-to-solid phase transition. Because laser spot size can be focused down to 0.075 mm (75 μm), SLA achieves unmatched micro-feature precision and surface smoothness.

1.2 Selective Laser Sintering (SLS): Thermal Powder Coalescence

Selective Laser Sintering operates in a powder-bed format without liquid resin. Fine, semi-crystalline thermoplastic powder particles (typically 45 to 60 μm diameter) are preheated inside an inert nitrogen chamber to just below their melting temperature (T_melt, approx. 175°C for Nylon PA12). A high-power CO₂ or fiber laser scans the powder bed, adding just enough localized thermal energy to melt and coalesce particles together into solid geometry.

The energy delivered to the powder bed is quantified by the Andrew Laser Energy Density equation (E_D):

And volumetric energy density (E_volumetric):

Where P_laser is laser beam power (W), v_scan is beam scanning velocity (mm/s), h_hatch is hatch line spacing (mm), and t_layer is layer thickness (typically 0.10 to 0.12 mm). Maintaining tight closed-loop control over E_volumetric ensures complete inter-particle fusion without inducing polymer chain thermal degradation or smoking.

1.3 Laser Beam Gaussian Optics and Energy Distribution

In stereolithography, the ultraviolet laser beam operates in the fundamental transverse electromagnetic mode (TEM₀₀), producing a Gaussian spatial intensity distribution across the resin surface:

Where I₀ is peak optical intensity at the beam centerline, r is radial distance from the optical axis (mm), and w₀ is laser waist radius (typically 35 to 50 μm). As dual-axis galvanometer mirrors sweep the beam at linear velocities up to 10 m/s, the cured photopolymer profile forms a parabolic cross-sectional “cure bullet”. Controlling beam overlap and galvanometer jump delays eliminates internal un-cured liquid traps and guarantees uniform isotropic green-state density.

2. Comprehensive Technical Specifications: SLA vs SLS

The table below provides a side-by-side engineering comparison of dimensional tolerances, mechanical limits, surface characteristics, and operational parameters.

3. Mechanical Ductility and Environmental Aging Mechanics

The physical divergence between thermoset resins and true thermoplastics governs how parts perform under dynamic mechanical stress and long-term environmental exposure.

3.1 Elongation at Break and Impact Dynamics

SLA materials, being photopolymerized thermosets, feature highly crosslinked molecular networks. While this creates exceptional surface hardness and compressive rigidity, it results in brittle tensile failure under dynamic shock loads. Typical standard SLA resins exhibit elongation at break values below 12%. Subjecting an SLA cantilever snap-fit arm or living hinge to repeated deflection causes rapid micro-crack propagation and catastrophic brittle fracture.

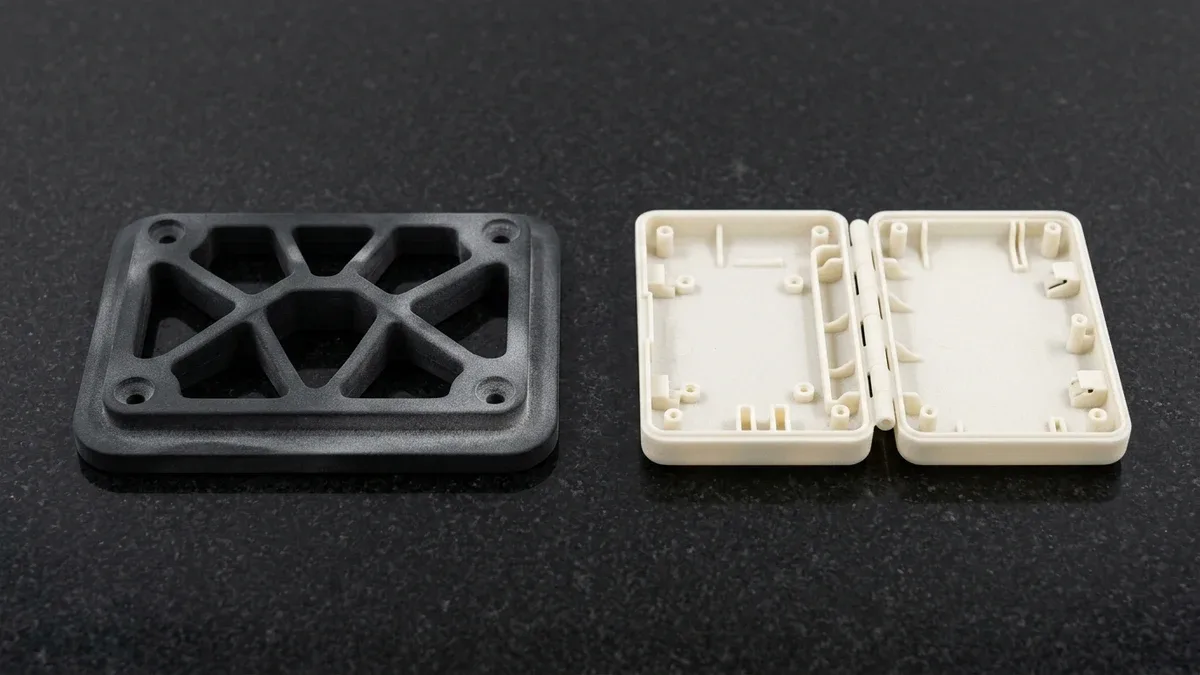

In contrast, SLS uses authentic semi-crystalline engineering polymers—primarily Polyamide 12 (Nylon 12). SLS PA12 features long entangled polymer chains that yield plastically under stress, achieving an elongation at break between 18% and 25% and high Izod notched impact toughness (4.5 to 6.0 kJ/m²). SLS snap-fits, living hinges, threaded inserts, and press-fit pins can be cycled hundreds of times without mechanical fatigue failure.

3.2 Outdoor UV Stability and Hydrothermal Aging

When selecting a process for outdoor enclosures or automotive under-hood components, environmental degradation mechanisms must be considered:

• SLA UV Sensitivity: Photopolymers contain residual photoinitiators. When exposed to outdoor sunlight (UV radiation), the material undergoes continuous post-polymerization crosslinking. Over weeks of UV exposure, unpainted SLA components become increasingly brittle, darken in color, and shift dimensionally. SLA parts intended for outdoor use require UV-blocking polyurethane clear-coats or opaque automotive-grade paint.
• SLS Chemical and Thermal Endurance: Sintered PA12 nylon is chemically inert to automotive fuels, greases, synthetic hydraulic oils, and alkalis. It withstands continuous service temperatures of 160°C (up to 175°C for glass-filled PA12-GF). When sealed via automated chemical vapor smoothing, SLS nylon parts provide years of weather-proof outdoor service without mechanical embrittlement.

4. Support Structure Mechanics vs Support-Free Powder Bed Nesting

One of the most consequential engineering distinctions between SLA and SLS is the requirement for sacrificial support structures.

4.1 SLA Support Structure Management

Because SLA builds components inside a liquid resin vat, gravity and viscous peel forces during platform repositioning require physical support structures. Overhanging geometry with an angle below 45 degrees relative to the horizontal build plane must be reinforced with fine scaffolding lattice structures.

While software automatically generates these supports, removing them introduces labor-intensive post-processing. Technicians must manually clip supports using flush cutters and hand-sand support contact points (“witness marks”) with 400 to 800 grit abrasive paper. If supports are placed on high-tolerance mating faces, cosmetic texture variations or dimensional dips can occur.

4.2 SLS Support-Free Powder Bed Advantage

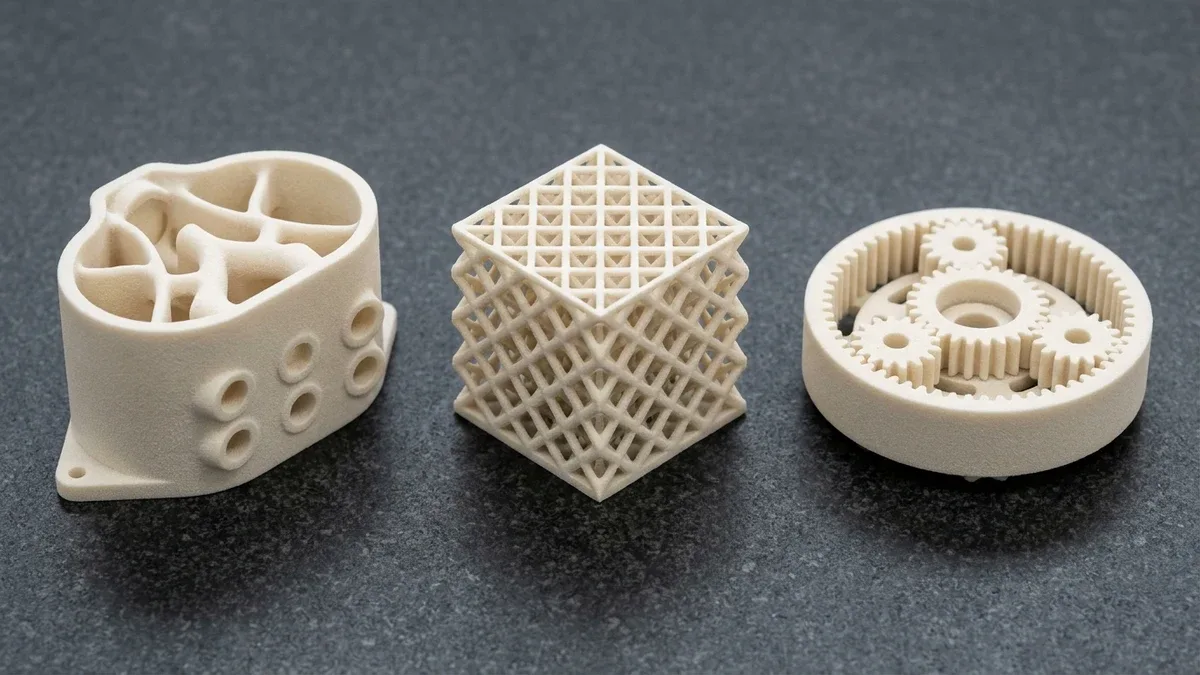

Selective Laser Sintering requires zero mechanical support structures. The unsintered polymer powder packed around the parts provides 100% natural, continuous geometric support throughout the entire build cycle. This physical freedom unlocks three transformative engineering advantages:

1. Organic Conformal Channels: SLS can manufacture curved internal fluid channels, gyroid heat exchanger lattices, and hollow weight-reduction chambers that are impossible to clean or support in SLA or CNC milling.
2. Print-in-Place Interlocking Mechanisms: Fully assembled ball joints, multi-link hinges, and planetary gear sets can be printed pre-assembled in a single build cycle, ready to function immediately once unfused powder is blown out.
3. 3D Volumetric Chamber Nesting: Parts can be stacked across all three spatial dimensions throughout the 300 × 300 × 600 mm build chamber. Stacking 50 to 500 parts per run drives down unit machine amortization costs dramatically.

5. Material Selection Guide: SLA Resins vs SLS Powders

Selecting the right formulation ensures the printed component fulfills its intended mechanical and thermal role.

6. Post-Processing Workflows and Surface Refinement

The post-processing sequence determines whether an additive component looks like a raw 3D print or a production-grade injection molded part.

6.1 SLA Post-Processing Sequence

1. Solvent Washing: Parts are submerged in automated isopropyl alcohol (IPA) or tripropylene glycol monomethyl ether (TPM) ultrasonic agitation tanks to dissolve uncured liquid resin from crevices.
2. Support Detachment: Hand technicians clip support struts and sand witness nodes smooth with fine-grit silicon carbide paper.
3. UV & Thermal Post-Curing: Components enter calibrated UV curing chambers (operating at 405 nm and 60°C) for 30 to 60 minutes. This final exposure completes polymer crosslinking, elevating tensile strength and heat deflection temperature to maximum datasheet values.
4. Optical Wet Sanding & Clear Coating: For transparent parts, technicians execute progressive wet-sanding from 800 to 2000 grit, followed by an acrylic clear-coat spray to yield water-clear optical transparency.

6.2 SLS Post-Processing Sequence

1. Automated De-Caking: Sintered build cakes cool inside the chamber before moving to breakout stations where high-pressure oscillating air knives blow away loose unfused powder.
2. Media Bead Blasting: Components undergo fine glass bead or aluminum oxide blasting to remove surface-adhering powder grains, establishing a clean, uniform satin texture.
3. Chemical Vapor Smoothing: In automated vapor chambers, vaporized solvent condenses onto the PA12 surfaces, liquifying the microscopic outer 10-micron skin. Surface tension pulls micro-peaks into valleys before the solvent is fully extracted. This slashes surface roughness from Ra 6.0 μm down to Ra ≤ 1.0 μm, seals surface porosity for complete water-tightness, and boosts elongation at break.
4. High-Temperature Black Dyeing: Parts are immersed in pressurized dye tanks to achieve deep, scratch-resistant matte black coloration.

6.3 Metallic Electroplating and Secondary Finishing on SLA

While SLA parts are intrinsically polymer thermosets, their glass-smooth surface finish makes them prime candidates for functional metallic electroplating. By applying an electroless nickel strike followed by acid copper leveling and final decorative chrome or hard nickel deposition (20 to 50 μm thickness), engineers transform lightweight resin components into metallized prototypes with high surface conductivity, electromagnetic interference (EMI) shielding, and enhanced flexural stiffness.

7. Design for Additive Manufacturing (DFAM) Selection Rules

When finalizing CAD designs, adhere to the following core engineering guidelines:

Rule 1: Choose SLA for Polyurethane Vacuum Casting Masters

If your project calls for 20 to 100 prototype units in authentic production elastomers or flame-retardant resins via vacuum casting services, always print master patterns in SLA. The glass-smooth surface (Ra ≤ 0.4 μm) transfers directly into silicone RTV molds, eliminating days of labor-intensive mold cavity polishing.

Rule 2: Choose SLS for Functional Snap-Fits and Living Hinges

Never rely on standard SLA resins for functional snap-fit clips. Sintered PA12 nylon provides the requisite 20% elongation at break needed to deflect cantilever arms without yielding or cracking.

Rule 3: Design Generous Drain Ports for Hollow SLS Geometry

To reduce part weight and powder consumption in SLS, hollow out thick bosses. However, you must incorporate at least two drain holes (≥ 3.5 mm diameter) at opposite ends of the cavity to allow trapped powder to escape during automated air blasting.

Rule 4: Avoid Large Flat Horizontal Planes in SLA

Large flat planes oriented parallel to the SLA vat surface experience massive suction peel forces when separating from the vat film. Re-orient flat planes at a 30 to 45 degree tilt angle on build supports to minimize cross-sectional peel area and prevent layer separation.
