Custom Sheet Metal Prototyping: The Complete Engineering & DFM Guide

Sheet metal fabrication is one of the most versatile and cost-effective manufacturing processes for producing durable, lightweight, and electrically conductive parts. From 19-inch server chassis and outdoor telecommunication enclosures to automotive battery brackets and medical diagnostic carts, sheet metal components form the structural backbone of modern hardware engineering.

However, prototyping sheet metal parts historically presented a major dilemma: high-volume stamping demands custom progressive dies and deep-draw tooling that cost tens of thousands of dollars and take weeks to fabricate. In rapid product development, investing in hard tooling before locking in final CAD designs is a severe financial and schedule risk.

Fortunately, modern rapid sheet metal prototyping eliminates this dependency. By integrating high-power CNC fiber laser cutting, precision multi-axis press brakes, automated hardware insertion, and robotic laser welding, manufacturers can now produce functional, production-representative sheet metal prototypes in as little as 3 to 5 business days without dedicated hard tooling. In this comprehensive guide, AS Prototypes breaks down the essential engineering workflows, material trade-offs, and Design for Manufacturability (DFM) rules for quick-turn sheet metal prototypes.

The Modern Rapid Sheet Metal Prototyping Workflow

Rather than cutting custom stamping dies, modern prototype shops utilize a zero-tooling digital manufacturing sequence:

1. 3D CAD Unfolding & Flat Pattern Generation: Translating 3D solid models into 2D flat blanks using calibrated K-factor bend allowances tailored to specific material grades and tooling V-die widths.

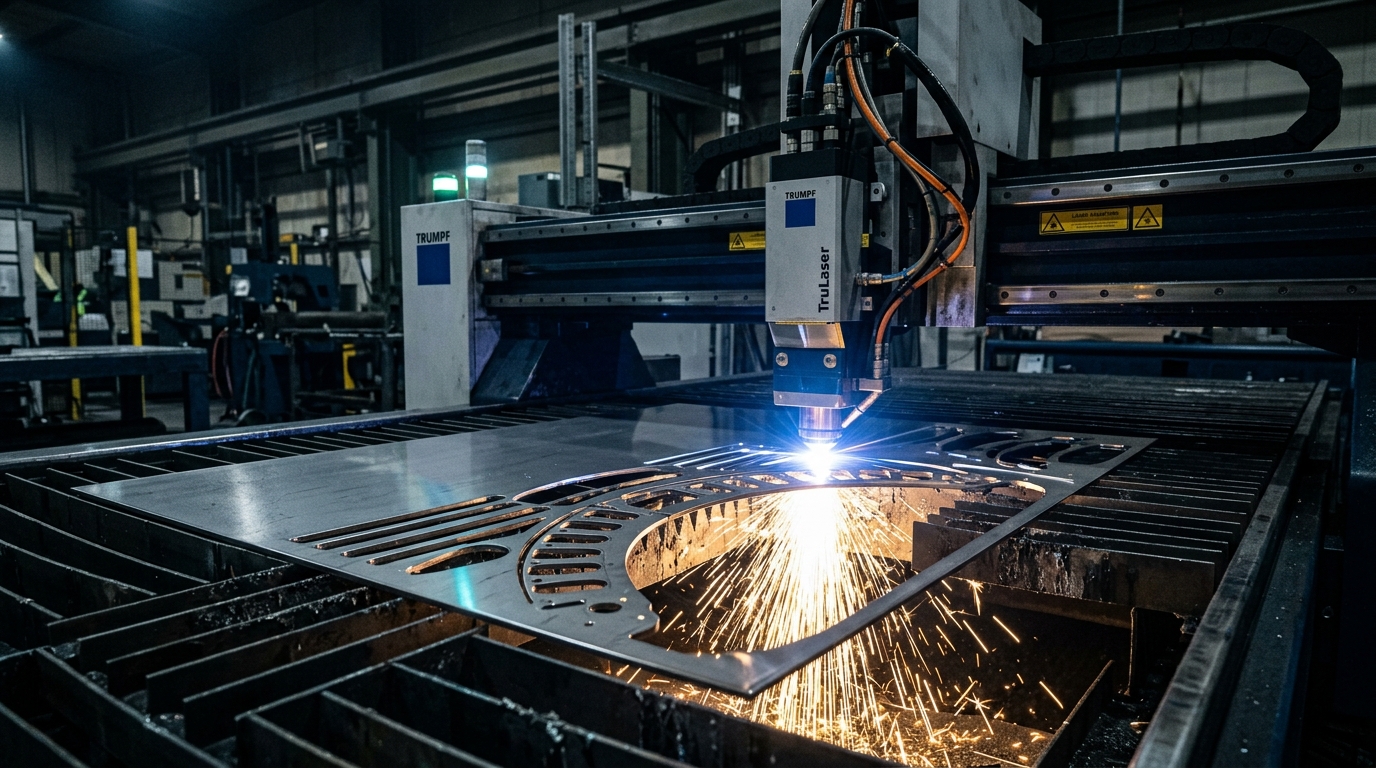

2. CNC Fiber Laser Cutting: Slicing complex outer perimeters, internal cutouts, ventilation louvers, and mounting holes with micron-level positional accuracy.
3. Deburring & Edge Conditioning: Automated vibratory tumbling or rotary brush sanding to remove microscopic laser dross and razor-sharp burrs.
4. Multi-Axis CNC Air Bending: Forming progressive flanges, hems, and offsets using standardized, staged precision-ground tooling.
5. Hardware Insertion: Hydraulic pressing of self-clinching PEM fasteners, threaded standoffs, studs, and nuts.
6. Fabrication & Joining: Precision TIG/MIG welding, spot welding, or continuous handheld fiber laser welding ground flush.
7. Surface Finishing: Applying corrosion-resistant conversion coatings, anodizing, powder coating, or silk-screen branding.

Core Forming Technology: Multi-Axis CNC Press Brake Air Bending

The transition from a flat 2D cut blank into a rigid 3D enclosure takes place on the CNC press brake:

At AS Prototypes, we deploy multi-axis CNC press brakes featuring active hydraulic dynamic crowning and real-time laser angle measurement systems:

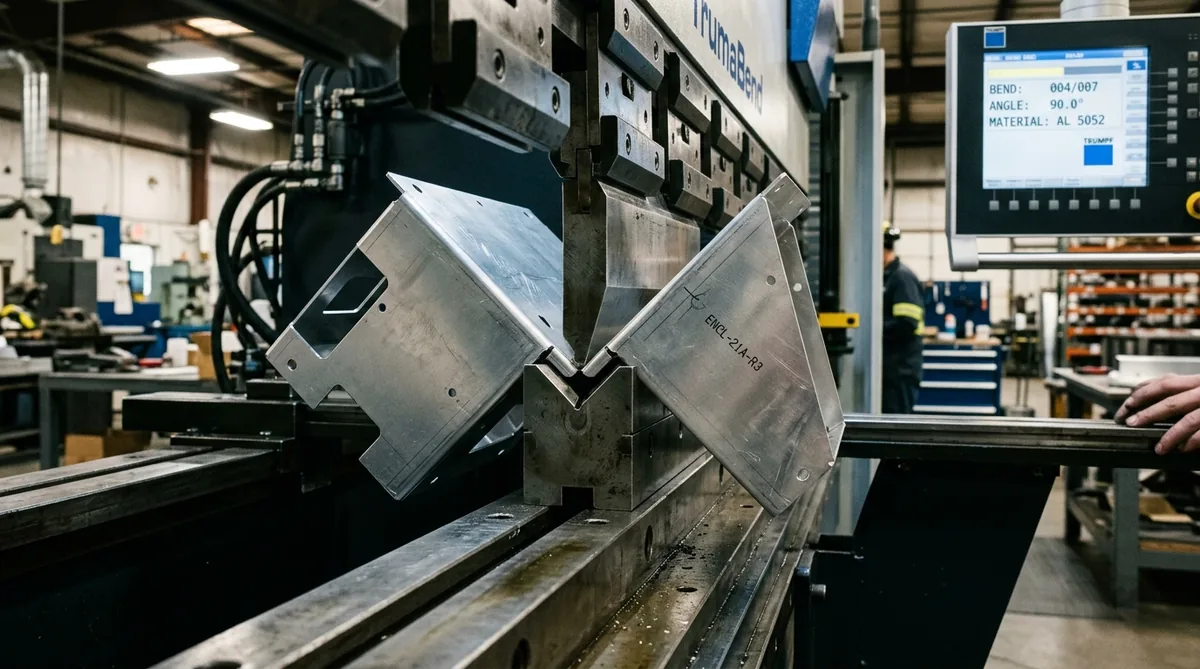

• Air Bending vs. Bottoming: Unlike bottom bending which requires dedicated punch-and-die geometries matching the exact bend angle, air bending creates the desired angle purely through punch penetration depth. This allows a single standard 30° punch and 88° V-die set to form any bend angle from 30° to 179°, drastically accelerating turnaround.
• Bend Radius Consistency: Maintaining a uniform inside bend radius across the entire part equal to or slightly greater than the material thickness ($R \ge 1.0 imes t$) prevents outer fiber tensile cracking, particularly in cold-worked aluminum alloys like 6061-T6.
• Bend Relief Notches: When a bend flange terminates adjacent to a flat edge, tear relief notches (width $\ge t$, depth $\ge R + t$) are incorporated into the flat blank to prevent tearing at the bend line.

Material Selection Guide for Sheet Metal Prototyping

Different metals exhibit vastly different ductility, work hardening rates, and springback characteristics. Selecting the right alloy ensures your prototype meets both structural demands and manufacturing feasibility:

Essential DFM Guidelines for Sheet Metal Prototypes

Adhering to foundational Design for Manufacturability rules during the CAD phase avoids costly delays and redesign cycles:

• Hole-to-Edge and Hole-to-Bend Spacing: To prevent ovalization and material distortion during bending, keep the distance from the edge of any hole or cutout to the tangent of a bend line at least 2.5 × material thickness + bend radius.
• Minimum Flange Length: A bend flange must be long enough to span across the shoulder of the lower V-die during forming. As a rule of thumb, minimum flange length should be at least 4 × material thickness.
• Countersinks in Thin Sheet: Avoid standard machine countersinks on sheets thinner than 1.5 mm, as the cutter will break through the bottom surface. Instead, specify stamped or coined form countersinks.

Hardware Insertion & Precision Assembly

Threaded connections in thin sheet metal cannot rely on tapped holes because the gauge does not provide enough thread engagement. At AS Prototypes, we integrate automated insertion presses for self-clinching fasteners:

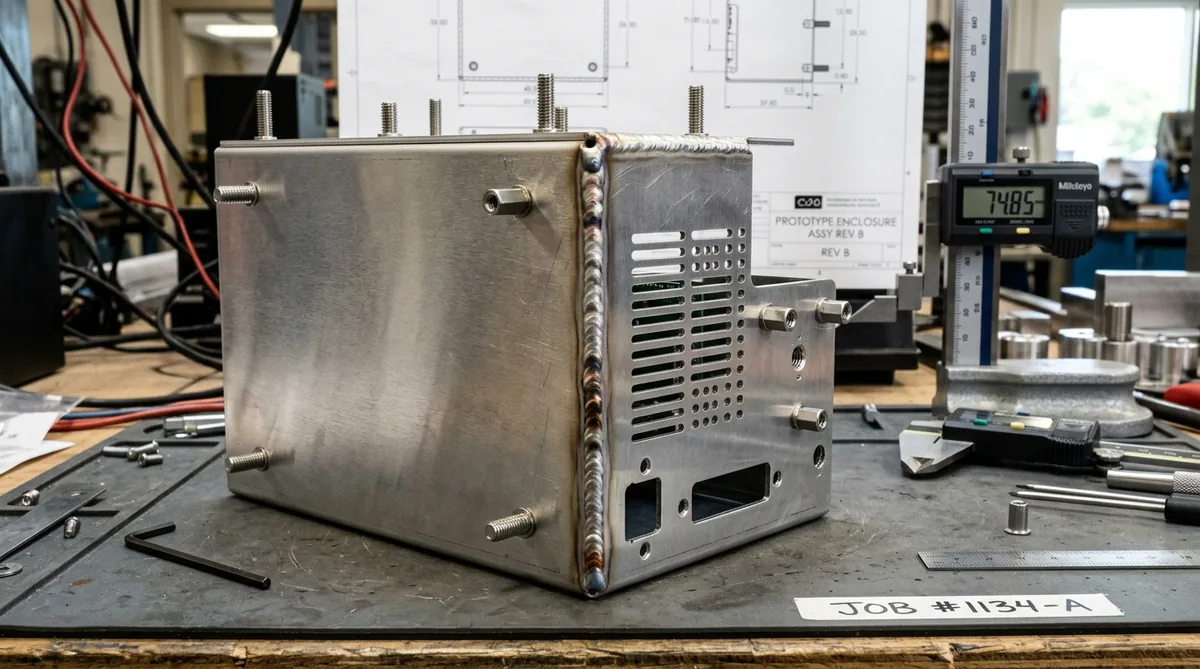

• Self-Clinching PEM Fasteners: Threaded studs, blind standoffs, and captive nuts pressed into laser-cut holes. The displaced ductile metal flows into a special undercut shank, providing high torque-out and push-out resistance.
• Laser Welding & Seam Grinding: For waterproof IP65/IP66 enclosures, continuous handheld fiber laser welding produces narrow, aesthetically clean weld beads with minimal heat distortion, easily sanded flush for invisible seamless corners.
• Surface Finishing Solutions: Complete in-house finishing options including chromate conversion (MIL-DTL-5541), sulfuric anodizing, heavy-duty architectural powder coating (RAL/Pantone matching), and silk-screened artwork.

Why Choose AS Prototypes for Your Sheet Metal Prototypes?

At AS Prototypes, our Shenzhen manufacturing facility bridges the gap between digital prototype validation and full-scale production. With fiber laser cutting up to 20 mm thickness, multi-axis CNC press brakes, dedicated stamping presses, robotic welding, and coordinate measuring inspection (CMM), we deliver sheet metal prototypes held to ±0.1 mm tolerances in as fast as 3 business days.
