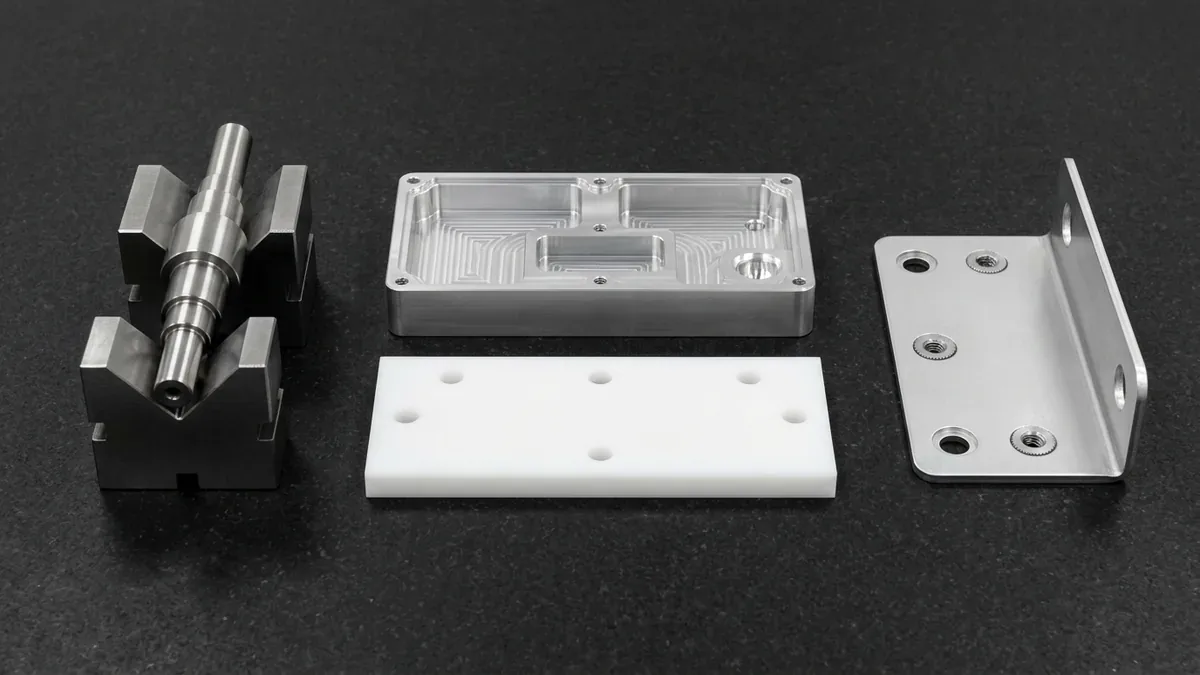

Precision Prototype Parts: CNC Machining & Tolerances Guide

In modern mechanical engineering and product development, physical prototype parts are the ultimate proving ground. While 3D CAD modeling and finite element analysis (FEA) simulate stress and kinematics in virtual space, nothing replaces the tactile, structural, and real-world assembly validation of an actual machined component. Skipping functional prototyping to rush directly into mass production tooling is one of the most expensive pitfalls in hardware development, frequently resulting in catastrophic mold recuts, unexpected tolerance stackup interferences, and costly launch delays.

Whether developing life-critical surgical instruments, aerospace drone chassis, high-voltage automotive powertrain modules, or high-end consumer electronics, manufacturing high-precision prototype parts demands meticulous process planning, rigorous material selection, and expert craftsmanship. At AS Prototypes, our precision CNC machining services integrate multi-axis milling, Swiss turning, and strict metrology audits to transform complex digital CAD designs into dimensionally flawless functional prototypes.

1. Phase 1: Engineering Drawing & DFM (Design for Manufacturability) Analysis

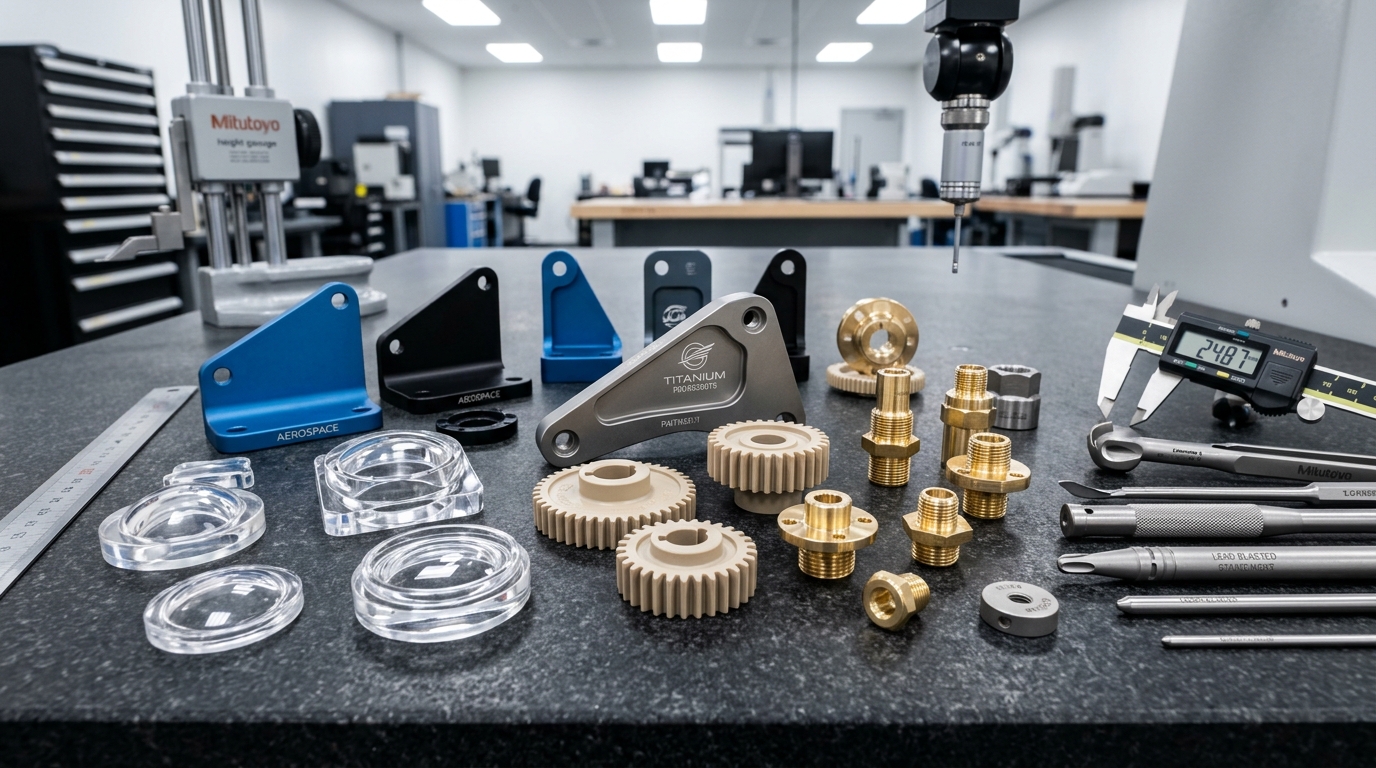

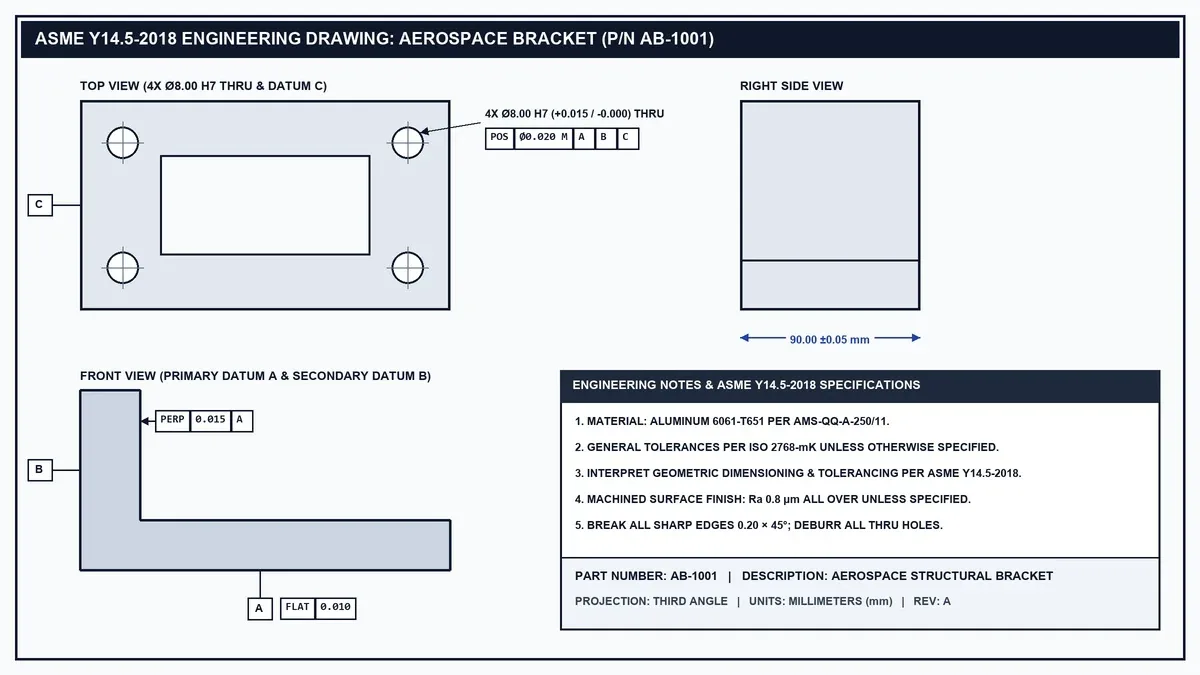

Every successful prototyping run begins with an exhaustive Design for Manufacturability (DFM) review. When customer 3D models (STEP/IGES) and 2D GD&T drawings arrive at our engineering desk, our senior toolmakers and CAM programmers analyze five critical manufacturing criteria:

• Geometric Feasibility & Tool Clearance: Identifying deep, narrow cavities that require long-reach endmills. Standard practice dictates keeping internal pocket corner radii greater than or equal to 1/3 of the pocket depth to prevent tool chatter, cutter deflection, and premature tool wear.
• Datum Scheme & GD&T Verifiability: Aligning primary, secondary, and tertiary datums with functional mating faces so that tolerances can be reliably clamped on the CNC table and verified on a Coordinate Measuring Machine (CMM).
• Wall Thickness Rigidity: Ensuring thin structural walls (minimum 0.8 mm for aluminum alloys, 1.2 mm for engineering plastics) have adequate structural support to withstand cutting forces without harmonic vibration or permanent mechanical distortion.
• Standardized Fastener & Thread Depths: Verifying blind-hole drill depths allow sufficient thread clearance (at least 2 to 3 thread pitches beyond the full-thread depth) for standard bottoming taps.
• Tolerance Rationalization: Differentiating between non-critical clearance dimensions (±0.1 mm) and critical bearing bores, dowel pin press fits, and O-ring sealing grooves held to ±0.01 mm (±0.0004 in). Over-tolerancing non-functional surfaces dramatically inflates cycle time and manufacturing cost without adding functional value.

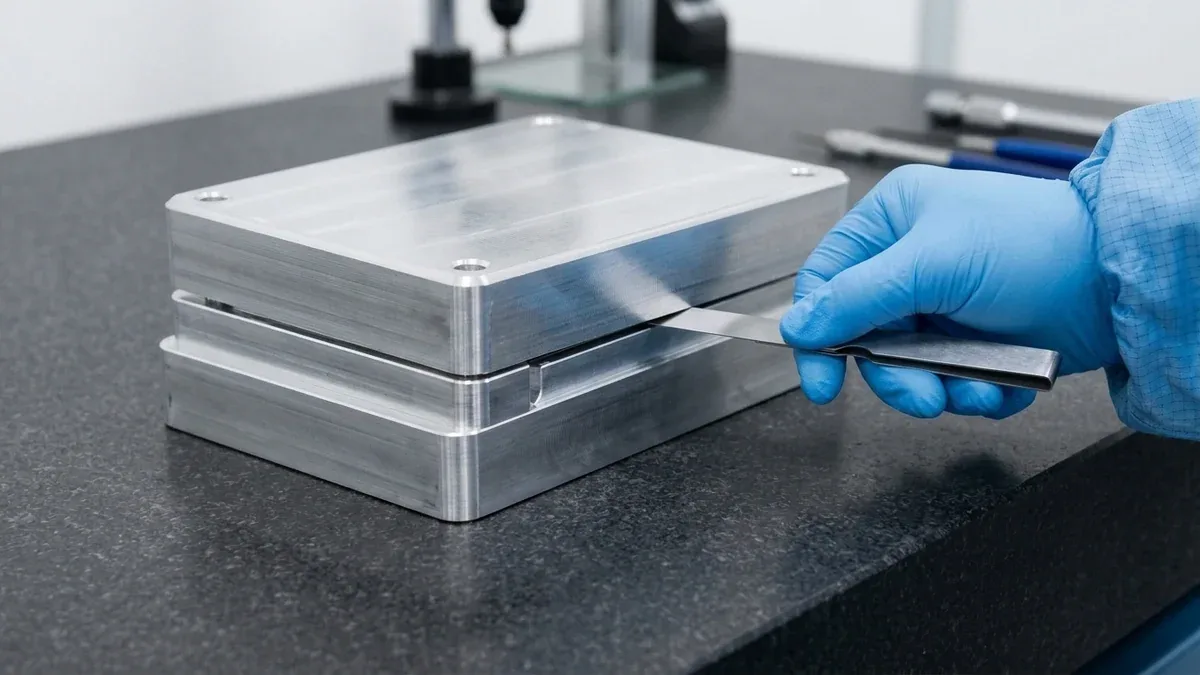

During the DFM phase, our engineers also evaluate tolerance stackup across multi-part subassemblies. By verifying split-line clearances and dowel-pin locating fits before chips fly, potential kinematic binding and assembly interferences are resolved directly on the blueprint.

2. Phase 2: Multi-Axis CAM Programming & Workholding Strategy

Once the engineering drawing and DFM review are approved, CAD models are imported into advanced CAM platforms (such as Mastercam and PowerMill) to generate optimized, collision-free toolpaths:

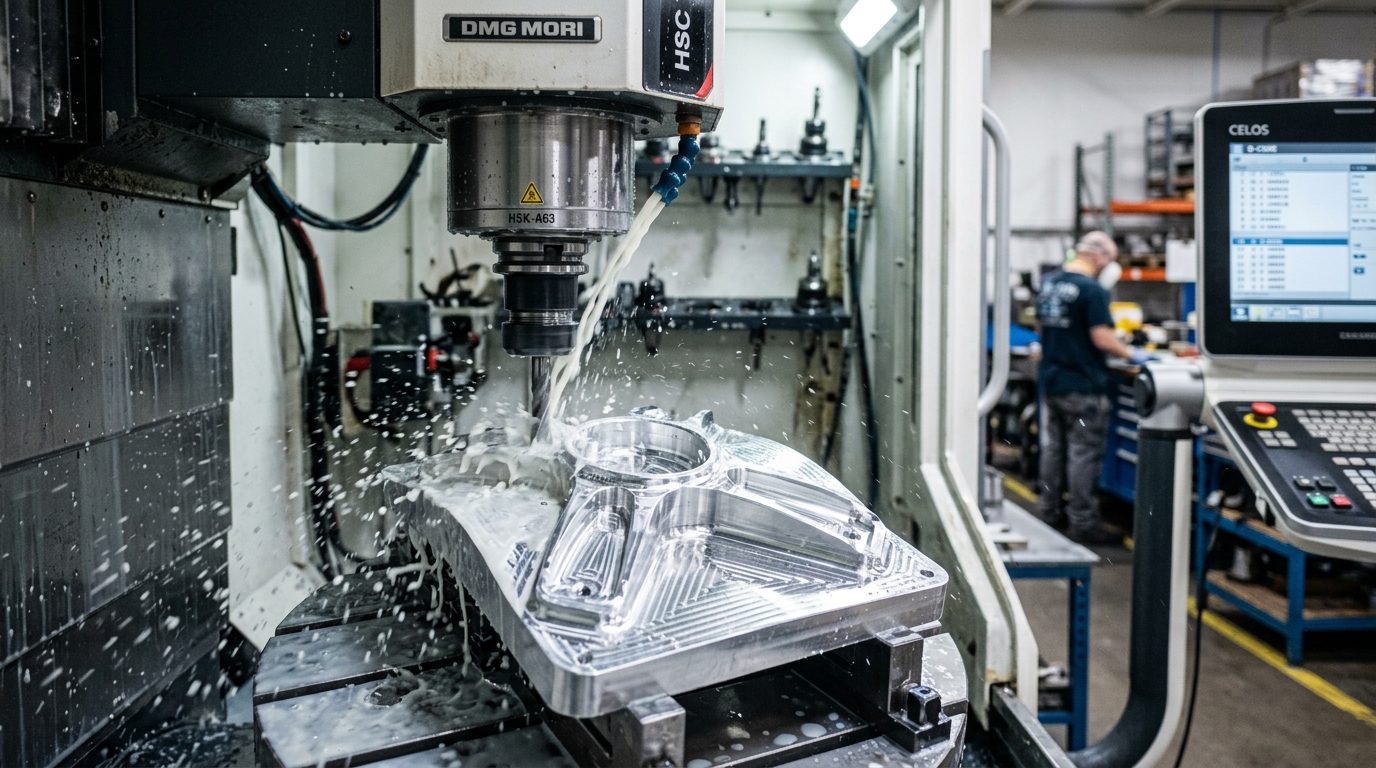

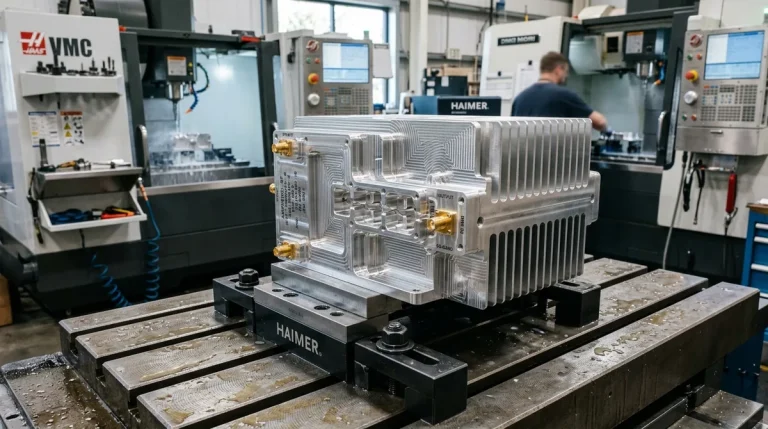

• Setup Reduction via Multi-Axis Machining: Re-fixturing a part introduces cumulative datum stacking errors. By deploying 5-axis simultaneous CNC machining centers, our machinists access up to 5 sides of a complex prismatic workpiece in a single clamp setup, maintaining precision rotational and true positioning accuracy within ±0.010 mm (per drawing) across disparate compound angles.

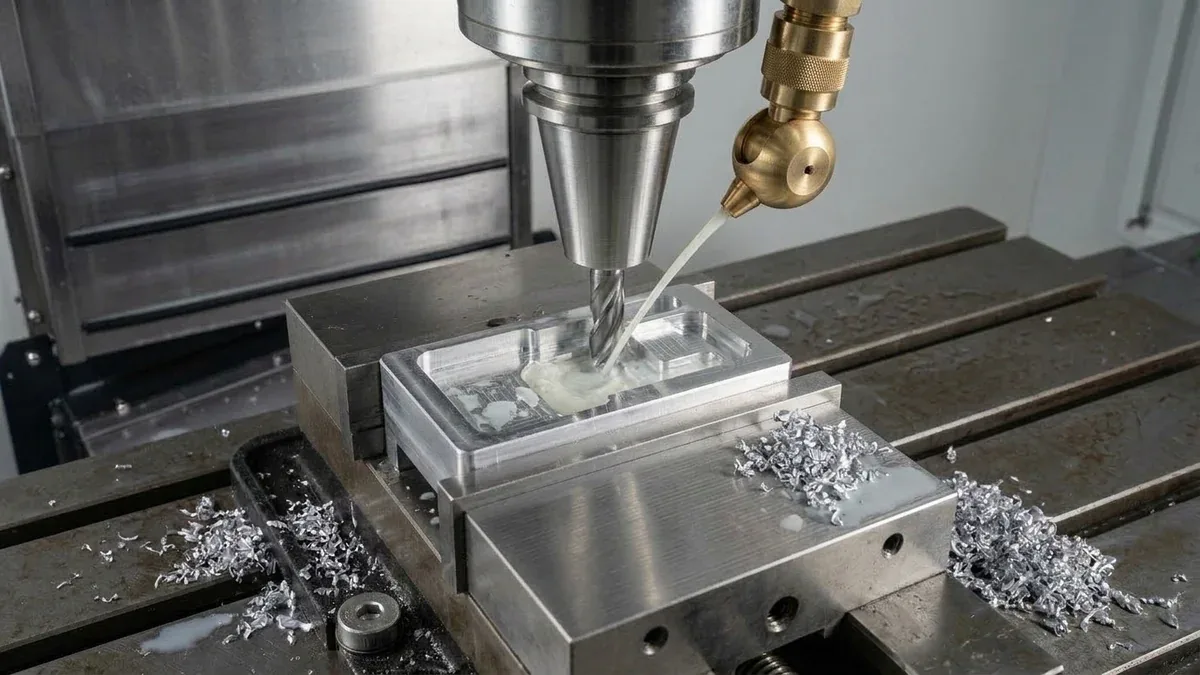

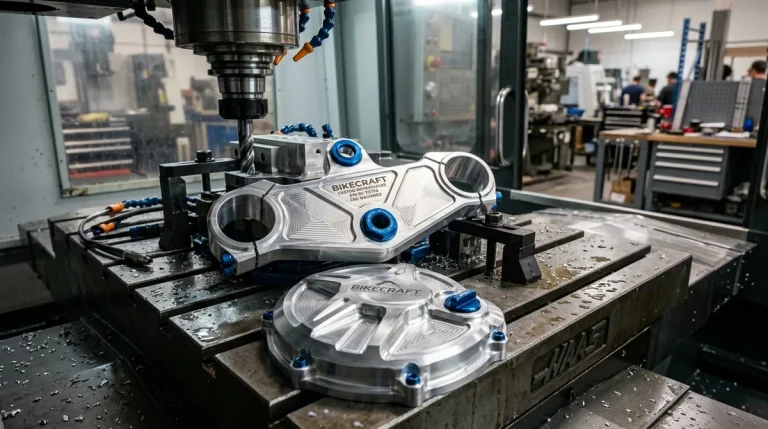

• Custom Soft Jaws & Conformal Fixturing: For organic aerospace brackets or thin-walled consumer enclosures, standard mechanical vises cause surface marring or localized wall crushing. We machine custom contoured aluminum soft jaws that mirror the exact external geometry of the prototype, distributing clamping pressure evenly across delicate features.
• Sacrificial Tabs & Dovetail Stock: For multi-sided prototypes requiring full 360-degree envelope milling, we utilize precision dovetail preparation or sacrificial fixturing tabs. The workpiece remains rigidly anchored throughout high-speed hogging and semi-finishing, with sacrificial tabs cleanly wire-EDM sectioned or surface ground in the final operation.

3. Phase 3: Material Selection for Functional Prototypes

Selecting the optimal alloy or polymer is decisive for validating real-world mechanical, thermal, and electrical performance. At AS Prototypes, we maintain extensive inventory of verified, high-grade engineering stock:

4. Phase 4: High-Precision CNC Machining Execution

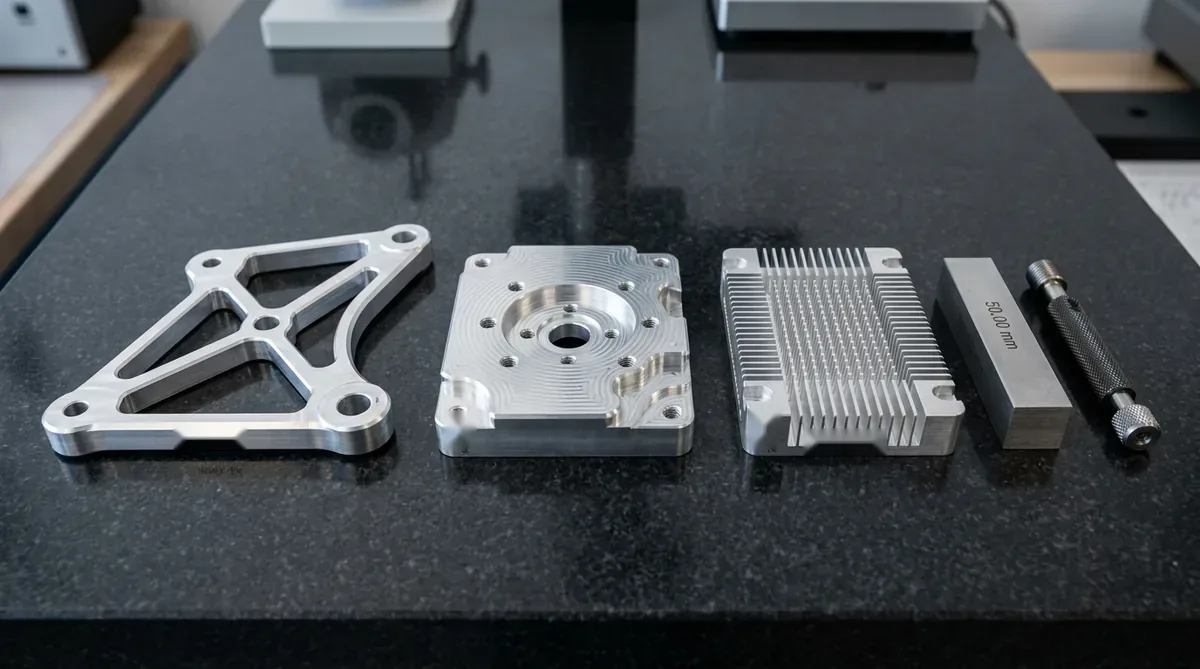

Executing precision prototype parts demands a multi-stage machining sequence to manage mechanical cutting forces and thermal equilibrium:

1. Roughing Stage: High-efficiency milling (HEM) toolpaths aggressively remove 70% to 80% of bulk stock at high feeds and shallow radial depths (radial engagement ae = 10%–15%, axial depth ap = 200%–300% tool diameter), directing heat into chips rather than the workpiece.
2. Stress Relief & Re-Alignment: As bulk metal is removed, internal stresses from the rolling or extrusion process can cause the raw block to warp slightly. For ultra-tight tolerance parts, the workpiece is unclamped, allowed to stabilize, re-probed with Renishaw optical spindle probes, and re-secured.
3. Semi-Finishing: Mid-sized solid carbide endmills refine internal fillets and complex contours, leaving a precise ±0.1 mm allowance.

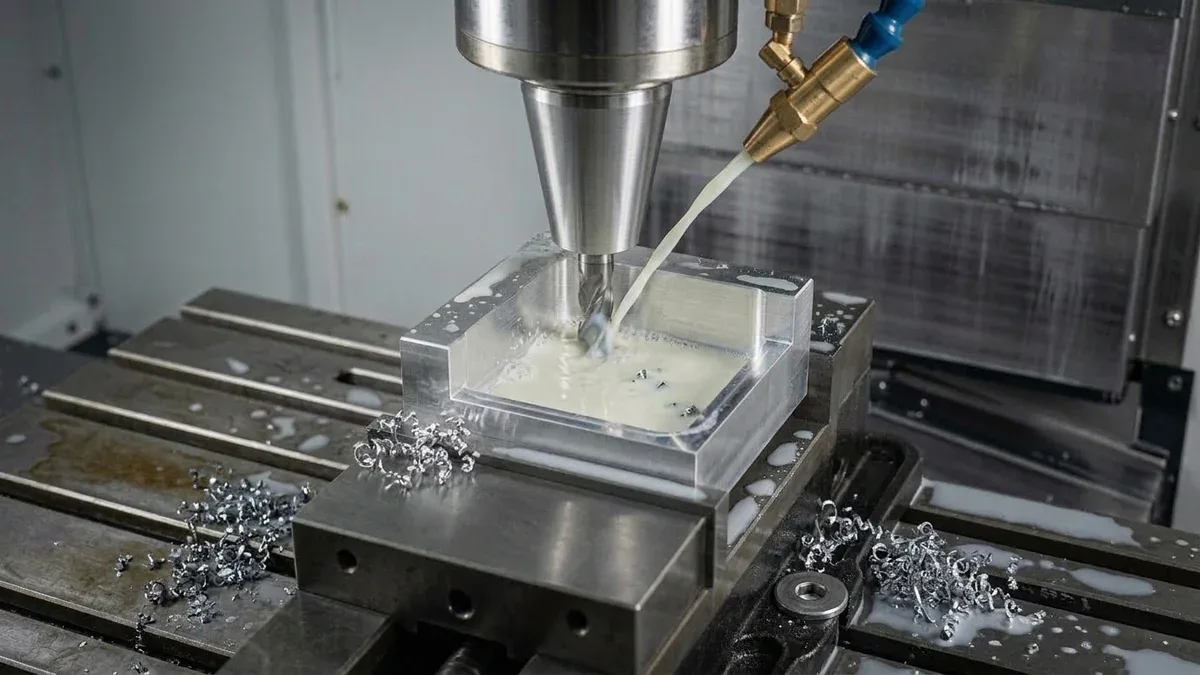

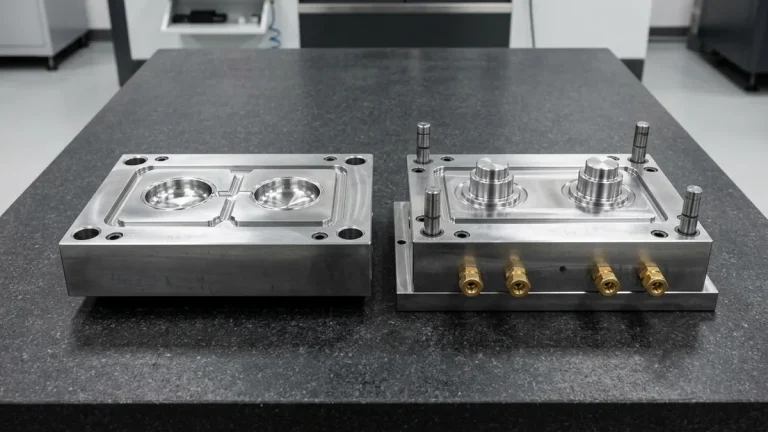

4. High-Speed Final Finishing: Micro-grain carbide endmills operating at up to 24,000 RPM shave the remaining skin under continuous flood coolant, generating mirror-like surface finishes and locking critical dimensions to ±0.01 mm.

5. Comparison of Rapid Prototyping Manufacturing Processes

To help hardware development teams select the most cost-effective manufacturing route, the table below compares the primary prototype production technologies available at AS Prototypes:

6. Phase 5: Post-Processing & Surface Finishing Options

A prototype is incomplete until its surface finish matches its engineering requirements. Post-machining precision surface finishing treatments enhance corrosion resistance, electrical insulation, and consumer-grade aesthetics:

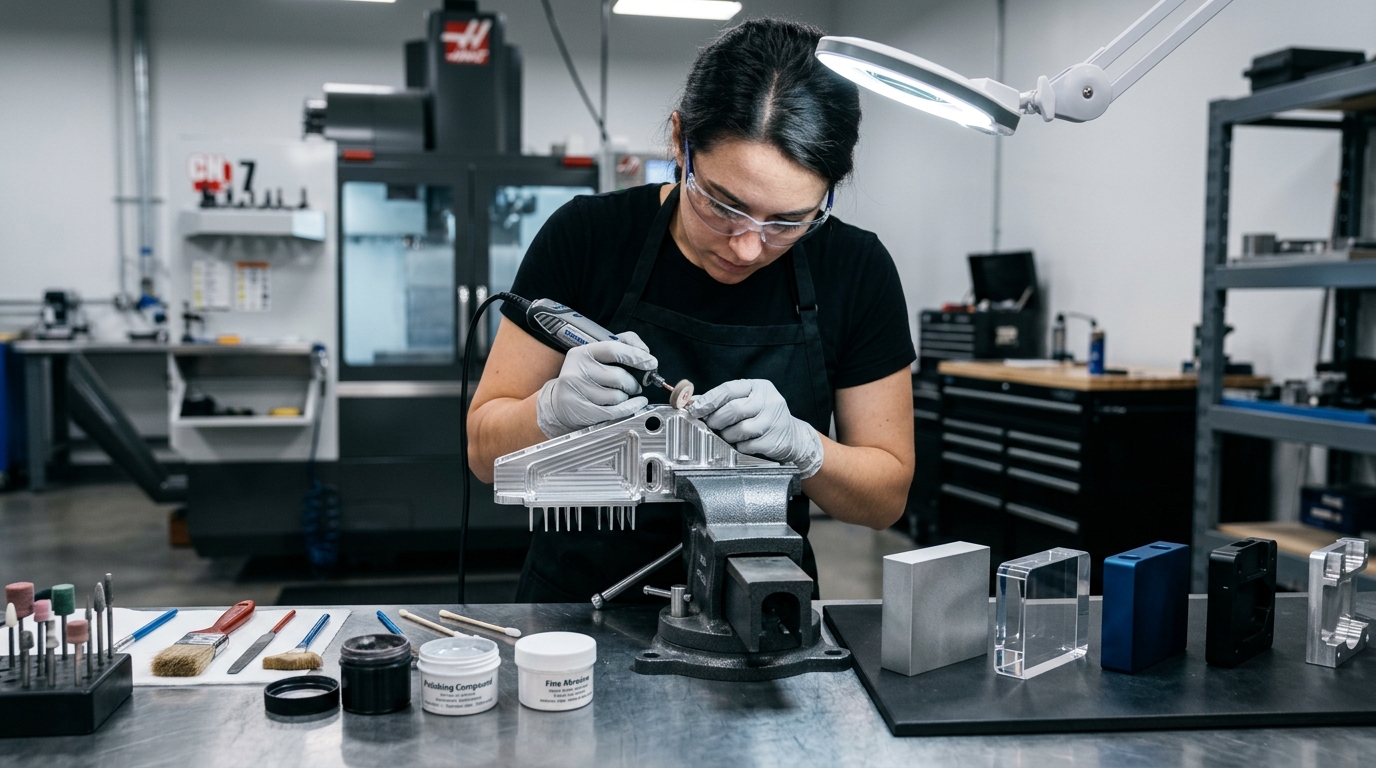

• Precision Deburring & Corner Relief: Hand-deburring microscopic cutter burrs under stereo microscopes to guarantee safety and interference-free assembly.
• Bead Blasting: Using #120 to #180 fine glass or ceramic beads to remove minor tool passes, leaving a uniform satin-matte non-directional texture.

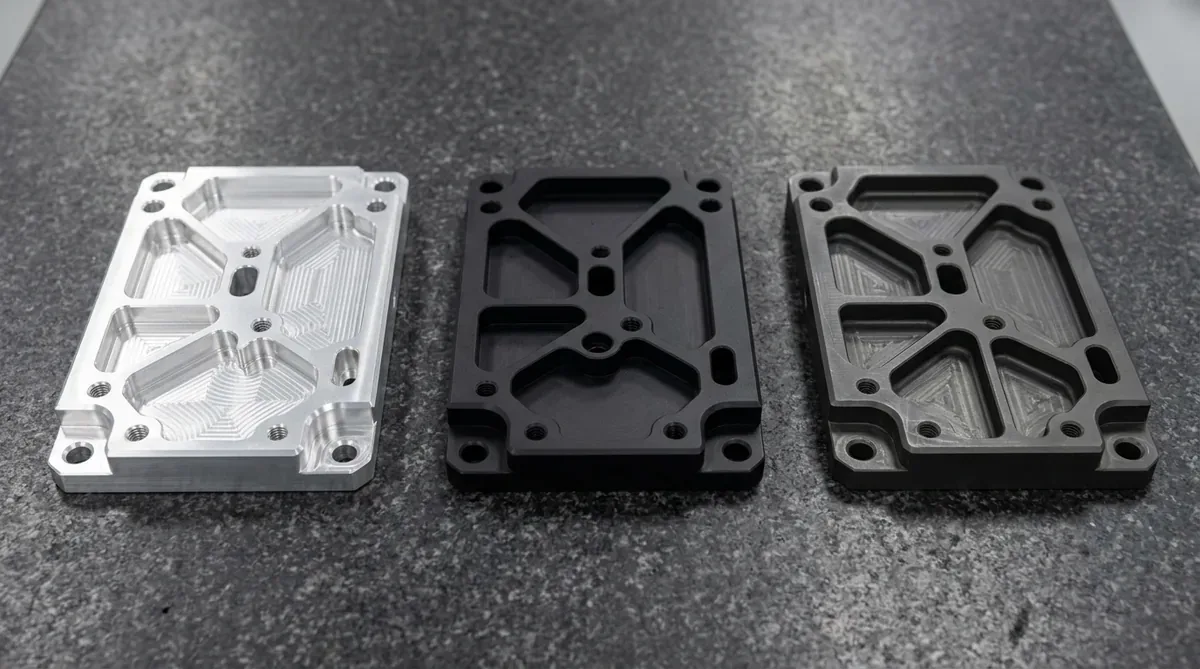

• Anodizing (Type II & Type III Hardcoat):
  • Type II Anodizing: Yields an 8–15 µm protective oxide layer available in clear, black, red, blue, or gold dye.
  • Type III Hardcoat Anodizing: Produces an ultra-dense 25–50 µm ceramic oxide layer (surface microhardness 400 to 500 HV0.05 on 6061-T6) delivering extreme abrasion and electrical insulation resistance (note: reduces cyclic fatigue life on thin aluminum sections).

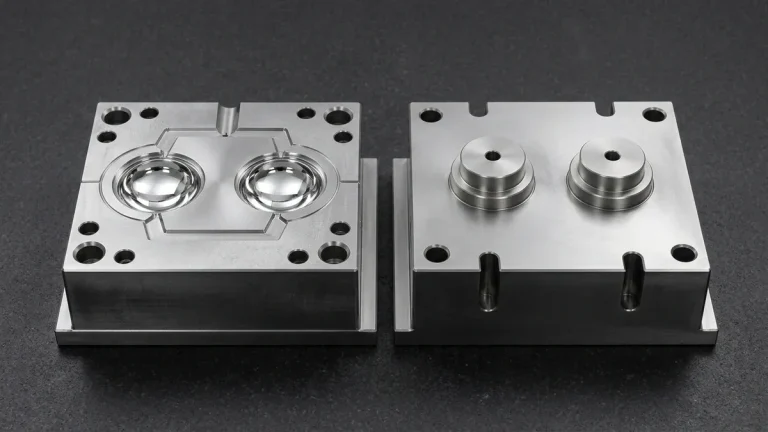

• Optical Polishing & Vapor Smoothing: For transparent Polycarbonate (PC) parts, controlled solvent vapor smoothing followed by mandatory 60°C to 80°C post-vapor annealing eliminates micro-haze. For optical PMMA (Acrylic) components, progressive single-point diamond turning (SPDT) and diamond compound wheel buffing are strictly utilized—solvent vapor polishing must never be applied to PMMA to avoid solvent attack, surface whitening, and micro-crazing.
• Electroless Nickel Plating (ENP): Deposits a uniform 5–25 µm nickel-phosphorus coating across internal threads and deep blind holes, providing superior wear and chemical resistance.
• Laser Engraving: High-resolution fiber laser marking of part serial numbers, alignment marks, QR codes, and custom engineering markings.

7. Phase 6: Quality Assurance & Metrology Inspection

Every prototype delivered by AS Prototypes undergoes rigorous quality inspection before ex-factory release:

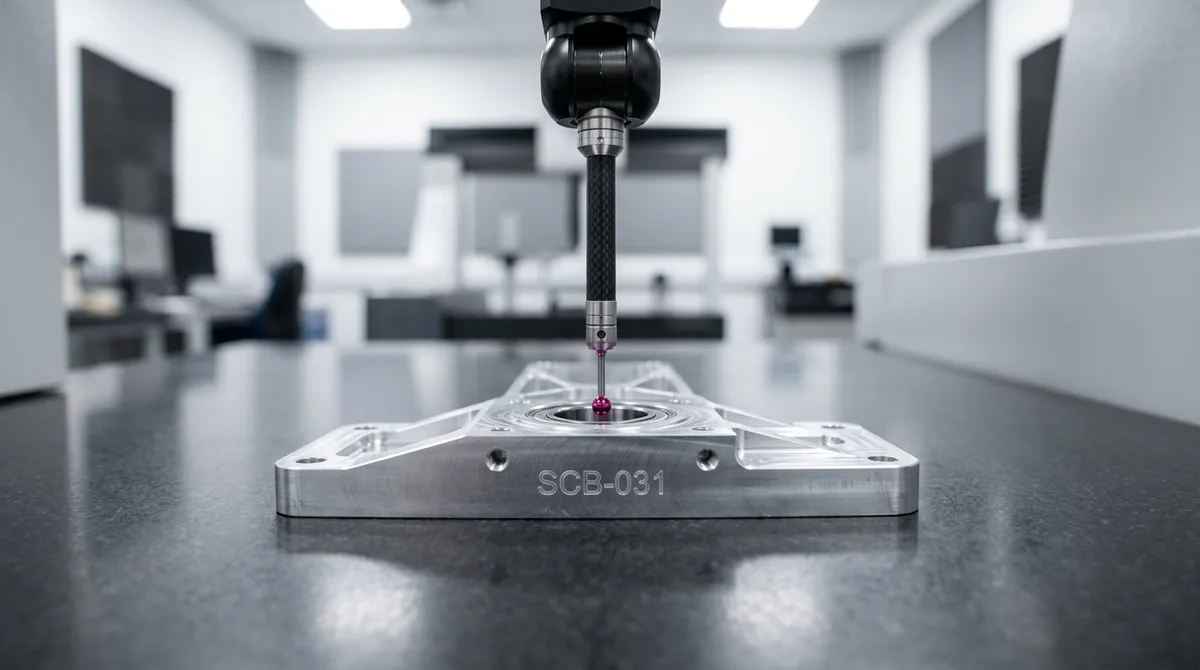

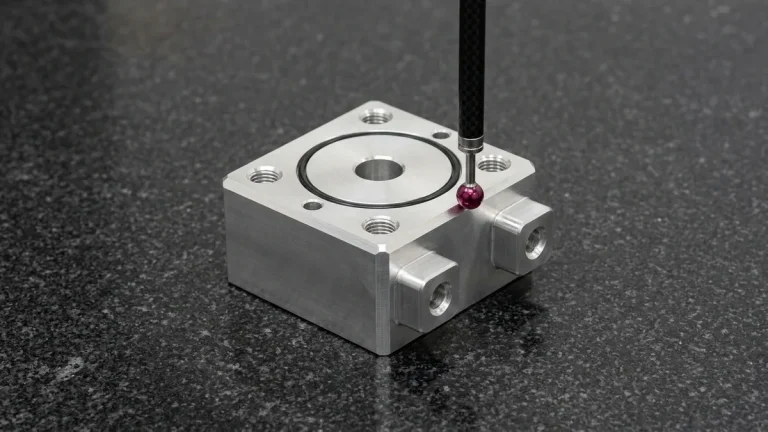

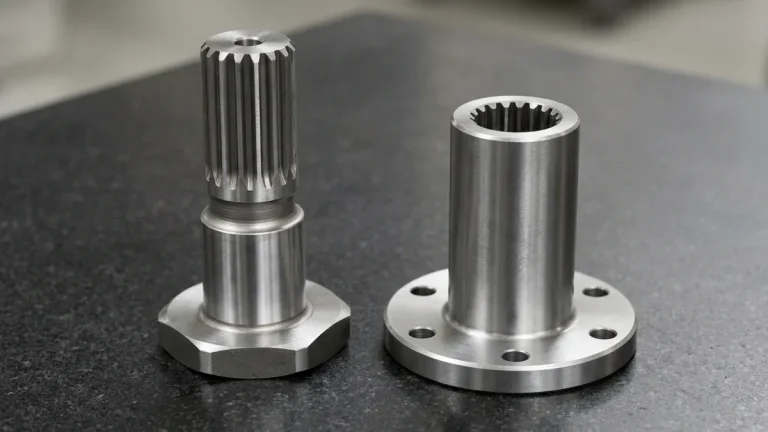

• Coordinate Measuring Machine (CMM): Automated Zeiss 3D CMM probing (available upon request for critical dimensional verification) verifies 3D spatial dimensions, true position, concentricity, and profile tolerances for ±0.010 mm (±0.0004″) CNC features and ±0.005 mm (±0.0002″) Wire EDM/ground features.
• 2.5D Optical Video Measuring Systems: Non-contact high-magnification edge detection for delicate plastic features, micro-slots, and flexible seals.
• Surface Roughness Profilometry: Calibrated stylus profilometers measuring Ra, Rz, and Rq across critical sealing surfaces.
• Comprehensive Quality Documentation: First Article Inspection (FAI) reports, full-dimensional inspection records, raw material test reports (MTR / Mill Test Reports, available upon request), and RoHS/REACH compliance documentation.

8. Accelerate Your Prototyping Cycle with AS Prototypes

At AS Prototypes, we empower hardware engineers, industrial designers, and product innovators to transform complex CAD concepts into functional reality with speed and uncompromising precision. Backed by over a decade of precision manufacturing heritage and an in-house facility equipped with 3/4/5-axis CNC machining centers, Swiss-type turning, wire EDM, and sheet metal fabrication, we deliver prototype parts engineered to withstand the most demanding physical tests.
