Modern industrial equipment, aerospace avionics, medical surgical instruments, and high-speed robotic systems demand extreme mechanical reliability. In these demanding sectors, sub-assemblies cannot tolerate dimensional looseness, axis misalignment, or erratic surface variations. Instead, mating parts must assemble flawlessly with micrometer-level repeatable accuracy on the very first production run.
Achieving this repeatable predictability is the foundation of precision machining. By pairing rigid computer-controlled machine tool architectures with ceramic-hybrid high-speed spindles, specialized machinists cut difficult engineering alloys and technical polymers to micron-level tolerances (per drawing). Furthermore, precision manufacturing controls full geometric dimensioning and tolerancing (GD&T), verifying true position, roundness, cylindricity, and surface flatness across interlocking datum references.
At AS Prototypes, our in-house machine shop operates multi-axis precision CNC machining services, Swiss automatic turning lines, and climate-controlled metrology inspection labs. In this comprehensive technical guide, our manufacturing engineers review the physics, kinematic machine tools, material machinability indexes, thermal compensation rules, and design for manufacturability (DFM) guidelines essential for precision mechanical hardware.
- 1. The Fundamentals and Physics of Precision Machining
- 2. Core Machine Architectures in Modern Precision Facilities
- 3. Engineering Materials and Precision Machinability Profiles
- 4. GD&T Datum Architecture and Metrology Verification
- 5. Design for Manufacturability (DFM) Guidelines for Precision Parts
- 6. Technical Engineering FAQ
1. The Fundamentals and Physics of Precision Machining
Precision machining represents a fundamental shift from conventional bulk material removal. In rough machining, high depth of cut and aggressive feed rates prioritize high material removal rates (MRR). Conversely, precision finishing prioritizes dimensional stability, kinematic fidelity, and minimal surface waviness. Every micron of final variation is governed by physical forces acting across the machine tool, cutting tool, workpiece, and ambient shop floor.
Specifically, an accurate manufacturing error budget evaluates five distinct disturbance vectors: thermal drift, elastic tool deflection, workholding compliance, kinematic positioning backlash, and residual material stress relaxation. Neglecting any single factor inevitably leads to dimensional reject parts during final CMM inspection.

1.1 Thermal Expansion and Temperature Management
Thermal fluctuation is the single largest contributor to dimensional error in precision machining, accounting for up to 60% of total deviation. All engineering metals expand and contract in direct proportion to ambient temperature swings and localized cutting friction. The dimensional change is governed by the linear thermal expansion formula:
In this governing equation, ΔL represents dimensional change (mm), α represents the material’s linear thermal expansion coefficient (μm/m·K or 10-6 K-1), L is the nominal workpiece length (mm), and ΔT is the temperature variation relative to the standard reference temperature of 20°C (68°F).
Consider a practical shop-floor engineering example: An aerospace manifold machined from aerospace-grade Aluminum 6061-T6 (α ≈ 23.4 × 10-6 K-1) features a critical bore-to-bore center distance of 250 mm. If the machining area warms from 20°C to 26°C (ΔT = 6°C) due to afternoon ambient heat, the dimensional shift equals:
A dimensional growth of 35.1 microns completely consumes and exceeds an engineering tolerance window of ±0.015 mm. If inspected cold at 20°C in a metrology laboratory, the part fails quality inspection. For this reason, high-precision machining plants deploy active chiller units on machine coolant tanks, direct-drive spindle temperature loops, and climate-controlled production facilities maintained strictly within 20°C ±0.5°C.
1.2 Cutting Tool Deflection Mechanics
When cutting forces engage the workpiece, end mills act as cantilever beams supported by the machine spindle holder. The radial cutting force (Fc) pushes the tool away from the intended cut line, causing dimensional taper on vertical walls and pocket floors. The maximum cantilever tool tip deflection (δ) is expressed as:
Here, L is the tool overhang length extending from the toolholder collet, E is the Young’s modulus of elasticity of the tool substrate (approximately 600 GPa for micro-grain solid carbide versus 210 GPa for high-speed steel), and I is the second moment of area of the cylindrical tool shank:
Because tool deflection increases with the cube of tool overhang (L3) and decreases with the fourth power of cutter diameter (d4), doubling tool overhang multiplies deflection by a factor of eight (8×). Precision machinists counteract this mechanical vulnerability by utilizing shrink-fit toolholders, hydraulic chucks, and dynamic trochoidal milling toolpaths that maintain constant tool engagement angles and minimal radial depths of cut (ae).
2. Core Machine Architectures in Modern Precision Facilities
Precision machine shops deploy dedicated machine configurations matched to specific part geometries, batch sizes, and geometric complexity requirements. Understanding the operational envelope of each machine platform ensures optimal part pricing, speed, and dimensional integrity.
| Machining Platform | Typical Tolerances | Surface Roughness (Ra) | Kinematic Kinship | Optimal Part Architecture |
|---|---|---|---|---|
| High-Speed 3/4-Axis VMC | ±0.010 mm to ±0.020 mm | 0.4 to 0.8 μm | Orthogonal Cartesian axes + indexing 4th rotary | Chassis enclosures, mounting brackets, cold plates, and manifolds. |
| Simultaneous 5-Axis CNC | ±0.008 mm to ±0.015 mm | 0.2 to 0.6 μm | XYZ linear + AB or BC dual rotary trunnion | Turbine impellers, blisks, complex medical implants, and aerospace structural ribs. |
| Swiss-Type CNC Turning | ±0.010 mm to ±0.015 mm | 0.2 to 0.4 μm | Sliding headstock with guide bushing + live rotary tools | Miniature shafts, medical bone screws, electrical contacts, and hydraulic spools. |
| Precision Wire EDM | ±0.005 mm (±0.0002 in) | 0.1 to 0.4 μm | De-ionized dielectric spark erosion with continuous wire | Hardened extrusion dies, micro splines, internal keyways, and punch tooling. |
| Precision Surface & Cylindrical Grinding | ±0.005 mm (±0.0002 in) | 0.05 to 0.2 μm | Rotary diamond / CBN abrasive wheel surface shearing | Precision reference datums, bearing journals, hydraulic valve spools, and gauge blocks. |
2.1 High-Speed 3-Axis & 4-Axis Vertical Machining Centers (The Shop-Floor Workhorse)
While industry marketing frequently highlights 5-axis machines, high-speed 3-axis and 4-axis vertical machining centers (VMCs) remain the true workhorse of precision manufacturing. In precision machine shops, 3/4-axis VMCs manufacture 75% to 85% of all production volume. When fixtured in hardened precision vises with ground step jaws or custom aluminum soft jaws, a rigid 3-axis machine achieves extraordinary repeatable accuracy.

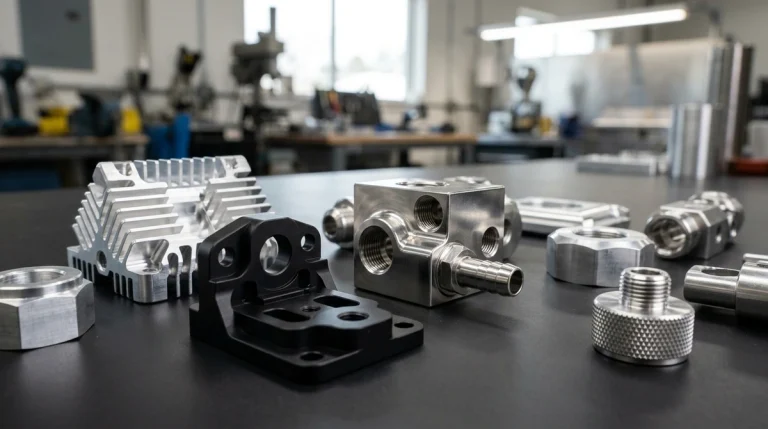

Adding a rotary 4th-axis indexer (A-axis) allows multi-sided machining without unclamping the workpiece. This kinematic continuity eliminates manual re-clamping datum errors. Machining prismatic housings, electronics enclosures, fluidic manifolds, and mounting brackets on rigid 3/4-axis VMCs delivers faster setup cycles, lower hourly rates, and superior overall cost efficiency.

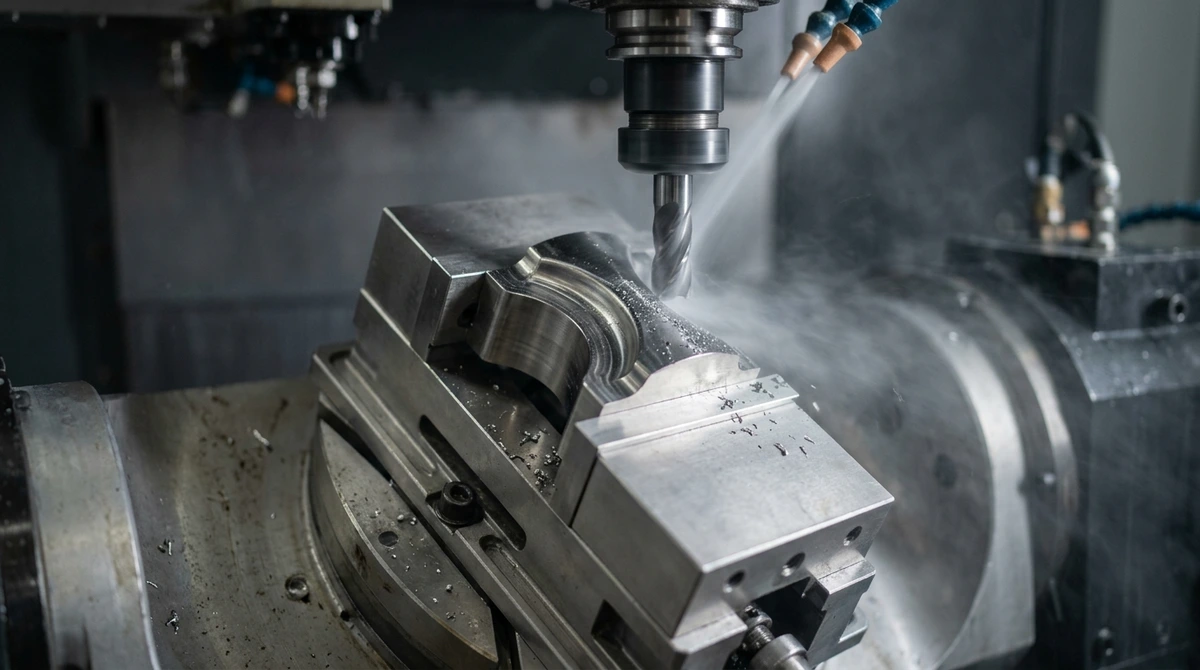

2.2 Simultaneous 5-Axis CNC Machining Centers
For highly complex geometries requiring multi-angle cutter access, 5-axis machining centers provide simultaneous kinematic control along X, Y, Z linear axes and two rotary axes (A/B or B/C). Rather than repositioning parts across five separate setups, 5-axis machines execute complete single-clamping manufacturing (“Done-in-One”).
Single-setup 5-axis machining prevents datum stacking errors across disparate fixtures. In addition, rotating the cutting tool toward compound draft angles enables shorter cutter overhang lengths, dramatically reducing tool deflection and tool chatter on deep vertical cavities and organic aerodynamic profiles.

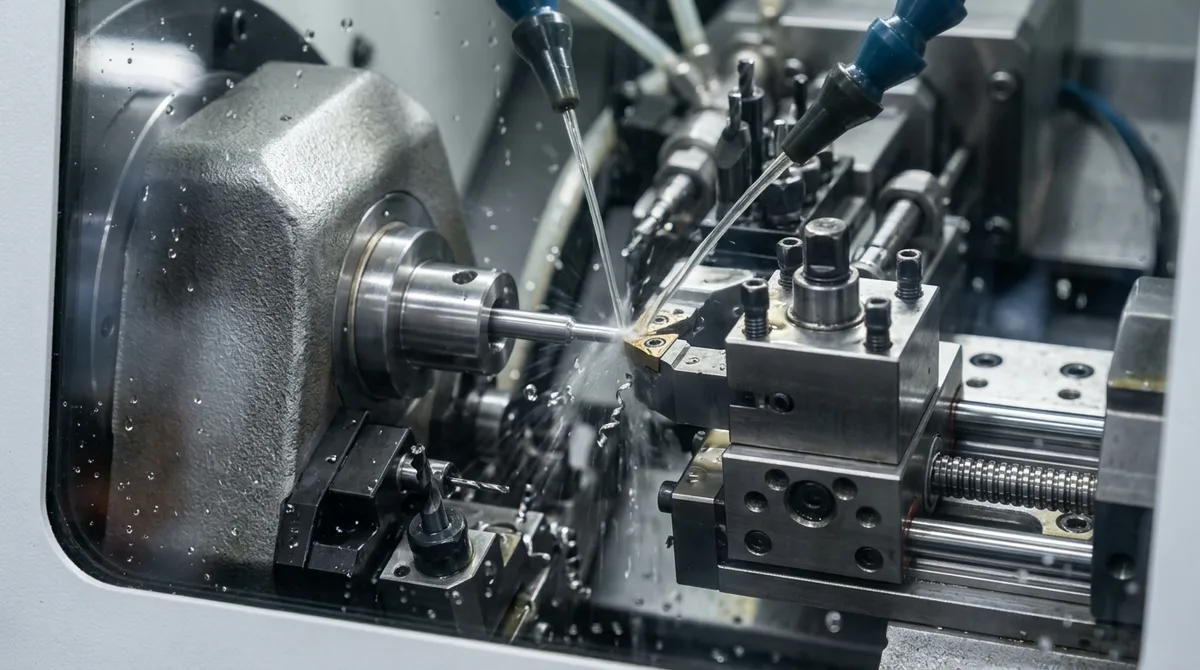

2.3 Swiss-Type CNC Turning with Guide Bushings
Conventional CNC lathes clamp a bar inside a chuck and machine parts extended into free air. When the part length-to-diameter ratio exceeds 3:1, cutting forces cause severe radial part deflection, taper distortion, and poor surface finish. Swiss-type CNC automatic lathes resolve this mechanical limitation through sliding headstock kinematic architecture.
On a Swiss lathe, the bar stock is fed continuously through a hardened carbide guide bushing. The cutting tools engage the stock merely 1 mm to 3 mm from the face of the guide bushing. Because cutting forces are applied directly adjacent to the solid bushing support, workpiece deflection is physically eliminated. Consequently, Swiss lathes reliably turn micro-diameter shafts, medical dental screws, watch components, and optical connectors down to 0.5 mm diameter while maintaining ±0.005 mm diametral runout.

2.4 Precision Wire Electrical Discharge Machining (Wire EDM)
Wire EDM operates via non-contact electro-thermal erosion. A spool of continuously traveling brass or zinc-coated wire (typically 0.10 mm to 0.25 mm diameter) cuts conductive materials submerged in a bath of deionized water. High-frequency electrical spark discharges vaporize microscopic metal particles at temperatures reaching 8,000°C to 12,000°C.
Because the EDM wire never exerts mechanical cutting pressure on the workpiece, thin-walled ribs and delicate stampings undergo zero cutting force deformation. Furthermore, wire EDM machines hardened tool steels (such as D2, A2, and CPM-10V) after heat treatment up to 62 HRC, avoiding heat-treatment distortion. Wire EDM achieves razor-sharp internal corners with corner radii as tight as R 0.05 mm and positional tolerances down to ±0.005 mm (±0.0002 in).

3. Engineering Materials and Precision Machinability Profiles
Material selection dictates cutting tool selection, spindle feed rates, heat generation, and surface roughness limits. Below is a detailed engineering analysis of core precision engineering alloys and polymers commonly processed in high-tolerance applications.
| Engineering Material | Machinability Index | Thermal Expansion (α) | Primary Application | Precision Tooling Strategy |
|---|---|---|---|---|
| Aluminum 7075-T651 | 70% (Excellent) | 23.4 μm/m·K | Aerospace gimbals, UAV arm mounts, structural brackets. | Polished DLC-coated 3-flute carbide end mills; high flood coolant. |
| Stainless Steel 17-4PH (H900) | 45% (Moderate) | 10.8 μm/m·K | Medical surgical instruments, aerospace shafts, valve gates. | AlTiN-coated micro-grain carbide; rigid climb milling. |
| Titanium Ti-6Al-4V (Grade 5) | 22% (Challenging) | 8.6 μm/m·K | Orthopedic implants, satellite brackets, high-load fasteners. | Low surface speed, high feed per tooth; high-pressure through-spindle coolant (>70 bar). |
| Stainless Steel 316L | 40% (Work-hardening) | 16.0 μm/m·K | Marine instrumentation, pharmaceutical fluid blocks, fittings. | Sharp positive rake inserts; continuous feed to prevent work-hardening. |
| Brass C3604 (Free-Cutting) | 100% (Baseline Reference) | 20.5 μm/m·K | RF electrical connectors, sensor housings, pneumatic spools. | Uncoated sharp carbide tooling; high spindle speeds up to 15,000 RPM. |
| Virgin PEEK Polymer | 65% (High thermal creep) | 47.0 μm/m·K | Semiconductor vacuum chucks, medical manifolds, insulators. | Razor-sharp uncoated diamond-like tooling; intermediate stress-relief annealing. |
3.1 High-Strength Aluminum Alloys (7075-T651 vs 6061-T6)
Aluminum 6061-T6 is the standard general-purpose alloy for structural components. However, for precision aerospace and robotics housings requiring micron-level flatness, Aluminum 7075-T651 is preferred. The “T651” temper designation indicates stress-relieved stretching following heat treatment.
When cutting deep cavities in standard 6061 billets, releasing residual rolling stresses causes the workpiece to warp slightly after unclamping from the vise. In contrast, 7075-T651 features superior internal stress equilibrium and higher yield strength (503 MPa versus 276 MPa for 6061-T6), allowing deep pockets and thin ribs to hold tight parallelism without post-machining relaxation.
3.2 Precipitation-Hardened Stainless Steels (17-4PH)
Austenitic stainless steels like 304 and 316L are notorious for work hardening. If a milling cutter rubs or hesitates for even a microsecond, the outer skin work-hardens, dulling the tool edge and destroying dimensional control. For precision surgical shafts and valve components, martensitic precipitation-hardened 17-4PH offers superior machinability.
In condition H900 or H1150, 17-4PH chips cleanly, resists galling, and achieves Ra 0.2 μm to Ra 0.4 μm ground finishes. Furthermore, parts can be machined in Condition A and heat-treated with negligible volumetric shrinkage (less than 0.05%), maintaining tight datum tolerances intact.
3.3 Engineering Polymers (Virgin PEEK and POM-C)
Machining precision engineering plastics demands completely different thermal protocols than metals. Polymers exhibit thermal expansion coefficients 2× to 5× higher than aluminum, along with low thermal conductivity. Heat generated during cutting cannot dissipate into the plastic chip and instead concentrates directly in the workpiece, causing dimensional ballooning during machining followed by undersized shrinking after cooling.
To machine PEEK to ±0.015 mm tolerances, machinists utilize razor-sharp, highly polished cutting edges, specialized tool geometry with high rake angles, and compressed air cooling. Furthermore, critical PEEK components undergo thermal annealing cycles at 150°C to 200°C between roughing and semi-finishing operations to release internal polymer extrusion stresses.
4. GD&T Datum Architecture and Metrology Verification
Achieving micron accuracy on machine tools is meaningless without rigorous, traceable metrology verification. Precision machine shops operate under strict Geometric Dimensioning and Tolerancing (GD&T) standards per ASME Y14.5 and ISO 1101.

4.1 The 3-2-1 Datum Referencing Protocol
Precision manufacturing aligns every geometric callout against an unambiguous datum reference frame (DRF). Machinists establish the 3-2-1 locating principle on the primary setup:
- Primary Datum (Datum A): Established across three non-collinear contact points on the largest flat surface, eliminating 3 degrees of freedom (pitch, roll, and Z-axis translation).
- Secondary Datum (Datum B): Established across two points on an orthogonal side edge, eliminating 2 degrees of freedom (yaw and Y-axis translation).
- Tertiary Datum (Datum C): Established at a single point on a perpendicular edge, eliminating the final degree of freedom (X-axis translation).
By establishing this datum reference frame on the first milling operation, all subsequent bores, counterbores, and thread locations maintain true positional alignment without cumulative fixture offset errors.

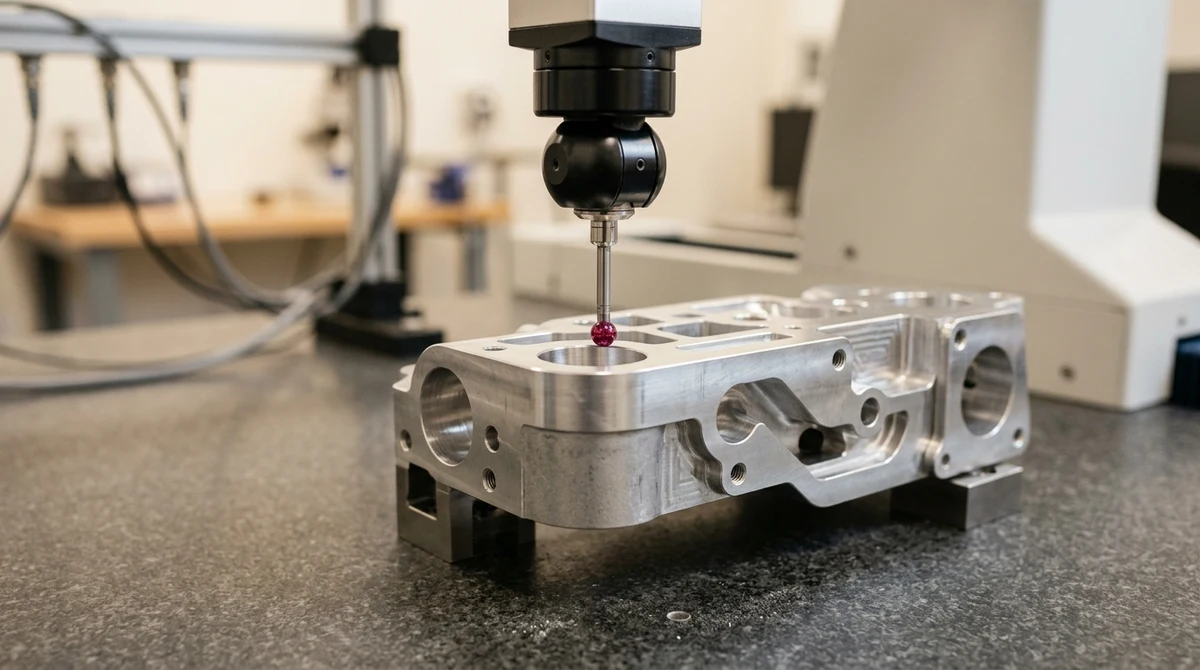

4.2 Climate-Controlled CMM Metrology Verification
At AS Prototypes, metrology inspection is conducted in dedicated climate-controlled inspection rooms held permanently at 20°C ±0.5°C. Workpieces transfer from the machine shop into the metrology lab and undergo mandatory temperature soak cycles (typically 2 to 4 hours) to equalize workpiece temperature before touch-trigger CMM probing.
Our metrology lab deploys automated CNC coordinate measuring machines equipped with motorized indexing probe heads and precision ruby styli. Technicians verify true position tolerances with Maximum Material Condition (MMC) modifiers, perpendicularity, concentricity, and surface profile against native 3D STEP models. Furthermore, stylus surface profilometers verify surface roughness parameters (Ra and Rz) compliant with ISO 4287 and ASME B46.1 standards.
5. Design for Manufacturability (DFM) Guidelines for Precision Parts
Implementing strategic DFM adjustments in 3D CAD models reduces machining cycle times, prevents tool breakage, and significantly lowers part manufacturing costs without compromising functional performance.
Rule 1: Standardize Internal Pocket Corner Radii
Square internal corners cannot be machined with rotating cylindrical milling cutters. Furthermore, designing internal corner radii that match the cutter radius exactly forces the tool into 90-degree corner engagement, drastically increasing cutting chatter and deflection.
Rule 2: Respect Cavity Depth-to-Diameter Ratios
As demonstrated in our cantilever beam deflection formula, tool deflection scales with the cube of length (L3). Deep, narrow pockets require extra-long end mills that must be run at drastically reduced feeds to prevent chatter and wall taper.
Keep pocket cavity depths under 4× the minimum internal corner diameter whenever feasible (Depth ≤ 4 · D). When pockets exceed 6× diameter, consider wire EDM, sinker EDM, or multi-piece modular assembly.
Rule 3: Enforce Minimum Wall Thickness Thresholds
Extremely thin walls flex away from cutting tool pressure, creating severe vibrational chatter, poor surface finishes, and dimensional taper:
- Aluminum Alloys: Minimum supported wall thickness of 0.8 mm (0.032 in); unsupported tall ribs should maintain ≥ 1.2 mm.
- Stainless Steels & Titanium: Minimum wall thickness of 1.0 mm (0.040 in) to prevent work hardening and distortion.
- Plastics (PEEK / Delrin): Minimum wall thickness of 1.2 mm to 1.5 mm to prevent flexure under tool drag.
Rule 4: Avoid Over-Specifying Blanket Micron Tolerances
Specifying blanket ±0.005 mm tolerances across an entire engineering drawing needlessly increases manufacturing costs by 200% to 400%. Tight tolerances require specialized slow finishing passes, dedicated ground fixtures, continuous CMM re-inspections, and high scrap risk.
Apply general tolerances of ISO 2768-mK (±0.10 mm to ±0.20 mm) to non-critical external surfaces, chamfers, and clearances. Reserve tight tolerances (±0.010 mm or ±0.005 mm) strictly for critical bearing journals, dowel pin press-fits, seal gland grooves, and kinematic optical mounting faces.
6. Technical Engineering FAQ
Commercial CNC machining typically holds general tolerances to ISO 2768-mK (±0.10 mm to ±0.20 mm). In contrast, precision machining reliably delivers tolerances of ±0.010 mm to ±0.015 mm for high-speed CNC milling and turning, and down to ±0.005 mm (±0.0002 in) for wire EDM and CNC surface grinding operations.
Engineering metals expand significantly under temperature variations. For example, a 250 mm aluminum 6061 component expands 35 microns (μm) with a 6°C temperature shift, completely exceeding a ±0.015 mm tolerance window. Maintaining machine shops and metrology labs at 20°C ±0.5°C ensures dimensional consistency across production and CMM inspection.
Swiss-type CNC turning is ideal for slender, miniature cylindrical parts with length-to-diameter ratios exceeding 3:1. Because the sliding headstock supports bar stock right at the carbide guide bushing (1 mm to 3 mm from the cutter), radial deflection is eliminated, allowing parts down to 0.5 mm diameter to maintain ±0.005 mm runout.
Wire EDM cuts through non-contact electro-thermal spark erosion, exerting zero mechanical pressure on the workpiece. Consequently, components can be fully heat-treated and hardened (up to 62 HRC) before EDM cutting, completely eliminating the post-machining warpage and heat-treatment distortion common in conventional milling.
Standard factory turnaround times provide formal DFM analysis and quotations within 24 hours. Precision prototype parts have an ex-factory turnaround of 4 to 8 business days (7 to 12 business days with anodizing or plating), while low-to-medium production runs (10 to 1,000+ parts) complete ex-factory release within 7 to 30 business days, excluding 3 to 5 business days for international express transit.
