3D Printed Lattice Structures: Gyroid TPMS, Strut Topologies & DFAM Guide

Engineering lightweight structural hardware requires modern additive manufacturing topologies that traditional machining cannot replicate. Therefore, implementing 3D printed lattice structures enables dramatic weight reduction while preserving load-bearing integrity. Lattices are three-dimensional, repeating cellular architectures composed of interconnected struts or continuous minimal surfaces. Consequently, replacing solid volumes with mathematically tuned metamaterials optimizes stiffness-to-weight ratios significantly.

Furthermore, additive manufacturing builds these complex internal topologies directly from CAD data without hard tooling. In this engineering guide, we examine primary lattice classifications, energy absorption physics, and thermal heat exchange advantages. In shop-floor practice, we analyze powder evacuation protocols and critical design for additive manufacturing (DFAM) guidelines.

1. Lattice Topologies: Strut-Based Networks vs Triply Periodic Minimal Surfaces

Core Physical Principles and Shop-Floor Execution

Modern generative design tools divide lattice geometries into two distinct mathematical categories. First, strut-based beam lattices link discrete nodes with cylindrical or tapered trusses. For example, octet-truss and Kelvin cell topologies provide excellent isotropic compressive resistance under static loads. However, sharp nodal intersections concentrate stress, potentially lowering cyclic fatigue lifespans.

Conversely, triply periodic minimal surfaces (TPMS), such as gyroids and diamond lattices, feature smooth, non-intersecting sheet boundaries. Specifically, TPMS architectures eliminate sharp internal junctions, distributing applied stress fields uniformly across continuous curves. Moreover, TPMS lattices feature completely open interconnected channels that facilitate fluid movement and powder drainage. The engineering matrix below compares major additive cellular architectures.

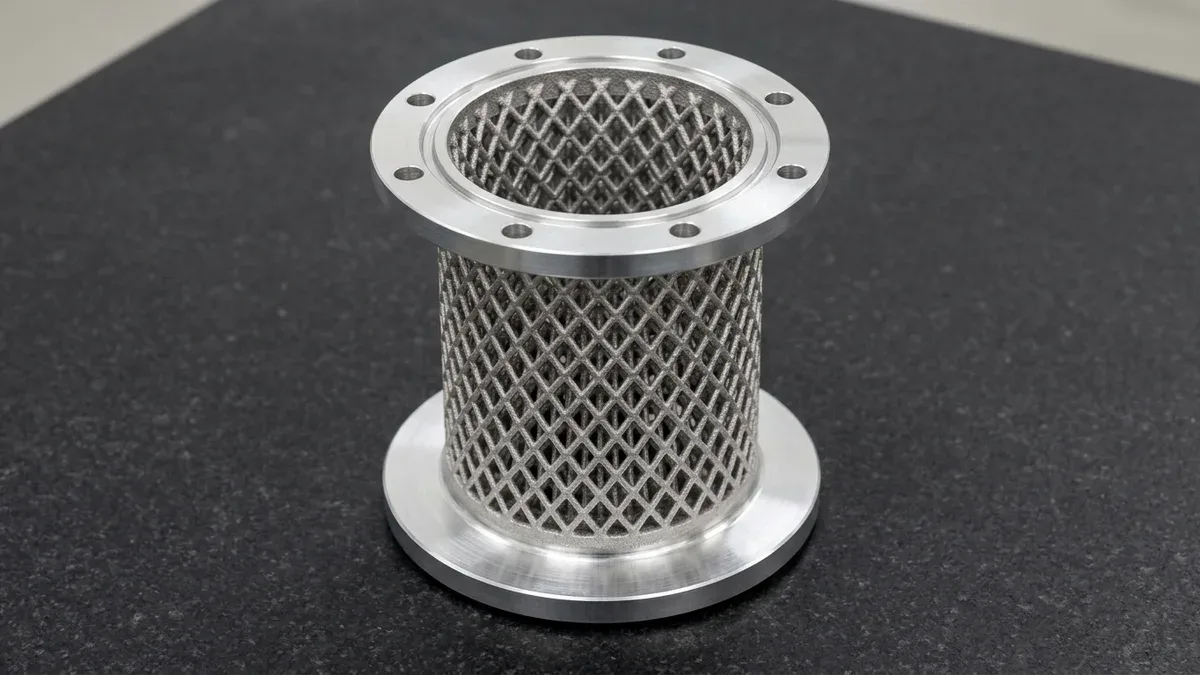

As illustrated in Figure 1, a finished DMLS 3D-printed AlSi10Mg aluminum cylindrical heat-exchanger core combines a self-supporting diamond lattice strut matrix with bright CNC face-milled top and bottom sealing flanges. Hybrid additive manufacturing and post-build CNC milling deliver high surface-area thermal dissipation alongside leak-tight O-ring sealing faces.

2. Multi-Functional Engineering Benefits: From Cushioning to Thermal Transfer

Primary Process Capabilities and Equipment Architecture

Beyond structural lightweighting, cellular metamaterials unlock unprecedented multi-functional performance in critical assemblies. First, specialized elastomeric lattices replace traditional polyurethane foam inside athletic footwear and medical cushioning. By tuning unit cell strut thickness, engineers tailor local compression response curves across individual zones precisely.

Second, metal lattices fabricated via selective laser melting function as ultra-compact, high-efficiency heat exchangers. Specifically, gyroid surfaces create separate interleaved fluid circuits with vast internal surface-area-to-volume ratios. Consequently, high-performance electronics cool rapidly without bulky extruded fins. Explore our industrial-grade 3D printing and additive manufacturing services across metals and engineering polymers.

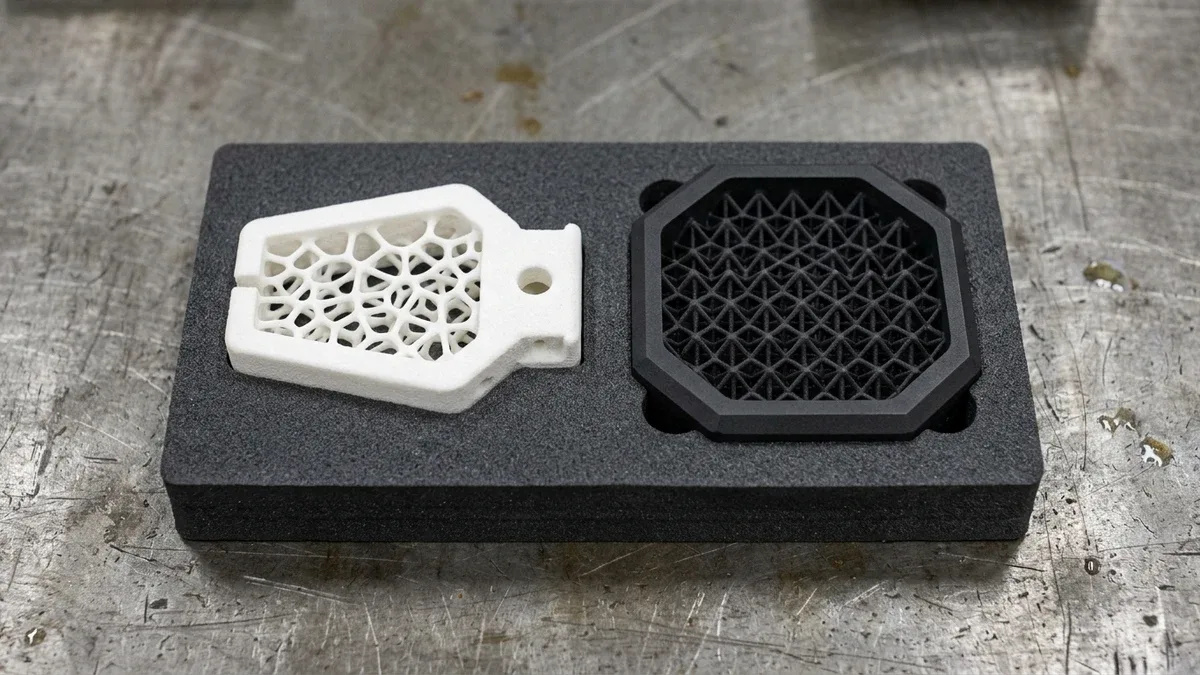

For polymer additive applications, Figure 2 compares a selective laser sintered (SLS) white PA12 nylon robotic gripper finger featuring a compliant Voronoi lattice core against a Multi Jet Fusion (MJF) black PA12 octet-truss vibration-damping mount. Open-cell powder drainage channels allow complete bead and air-jet depowdering after printing.

3. Material Selection: Metal DMLS vs Polymer SLS Additive Processes

Critical Process Parameters and Tooling Selection

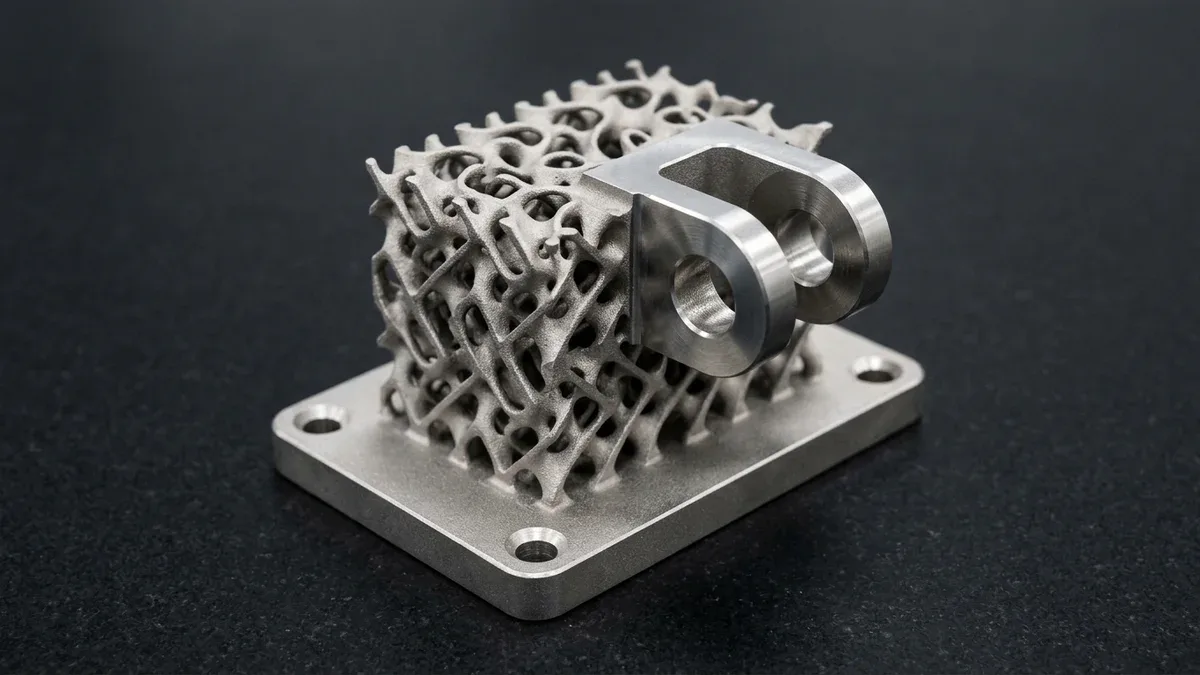

Selecting the proper additive process depends on thermal demands, operational stress, and overall batch volume. For high-stress applications, Direct Metal Laser Sintering (DMLS) fuses titanium (Ti-6Al-4V) or aluminum (AlSi10Mg) powder layers. In addition, metal lattices excel in structural brackets and satellite antenna supports for aerospace and space exploration systems.

In contrast, Selective Laser Sintering (SLS) builds resilient polymer lattices using polyamide nylon (PA12 or PA11). Because SLS provides natural powder self-support during sintering, parts require zero internal anchor supports. Thus, polymer lattices emerge from the build chamber completely intact, ready for automated depowdering and vapor smoothing.

4. DFAM Rules: Powder Evacuation Ports and Overhang Thresholds

Practical Design-for-Manufacturing (DFM) Guidelines

Designing enclosed lattice structures requires strict adherence to powder evacuation and support-free printing thresholds. First, every hollow internal lattice cavity must include at least two powder drain ports. Unfused raw powder cannot escape without sufficient drainage holes measuring at least 3.0 mm to 5.0 mm.

Second, strut overhang angles must maintain at least 45 degrees relative to the build plate. Steeper angles prevent molten metal sag without requiring internal support structures. Finally, maintain minimum strut diameters of 0.5 mm in metals and 0.8 mm in polymers to prevent partial strut fusion.

5. Quantitative Mechanics: Gibson-Ashby Scaling Laws & Relative Density

Bending-Dominated vs. Stretching-Dominated Cellular Stiffness Scaling

Designing structural 3D printed lattice components requires moving beyond visual aesthetics to rigorous micromechanical modeling.

Whether engineering a titanium orthopedic cage, a DMLS AlSi10Mg satellite bracket, or an SLS PA12/TPU impact pad, the effective elastic modulus (E*) and compressive plateau strength (σ*_pl) of a cellular solid are governed by its relative density (ρ_rel = ρ* / ρ_s, the ratio of cellular bulk density to solid parent material density) and nodal connectivity (Maxwell stability criterion M).

According to the foundational Gibson-Ashby cellular mechanics formulations, lattice topologies divide into two distinct deformation regimes with vastly different stiffness-to-weight scaling exponents:

Bending-Dominated (BCC, Kelvin, Voronoi):   E* / E_s ≈ C₁ · (ρ* / ρ_s)²   |   Stretching / Membrane TPMS (Octet-Truss, Gyroid):   E* / E_s ≈ C₂ · (ρ* / ρ_s)ⁿ (n ≈ 1.0–1.2)

20% Relative Density AlSi10Mg Aerospace Bracket Calculation

where E_s is the Young’s modulus of the fully dense parent alloy or polymer, and C₁ ≈ 0.1–0.4, C₂ ≈ 0.25–0.35 are geometric topology constants.

Consider a concrete shop-floor engineering comparison for a DMLS AlSi10Mg aerospace electronics bracket (solid density ρ_s = 2.67 g/cm³, solid modulus E_s = 70 GPa / 10,150 ksi) infill-lightweighted to a 20% relative density (ρ* / ρ_s = 0.20, achieving an 80% core weight reduction):

• Bending-Dominated BCC Strut Lattice at 20% Density: Because struts bend about their nodal joints under load, the effective modulus drops quadratically: E* ≈ 0.30 × 70 GPa × (0.20)² = 0.84 GPa (121.8 ksi)—retaining only 1.2% of solid stiffness, which is ideal for compliant cushioning but unsuitable for rigid structural mounts.
• Stretching-Dominated Octet-Truss or Sheet Gyroid TPMS at 20% Density: Because triangulated struts and continuous minimal surfaces carry loads in axial tension and compression, stiffness scales nearly linearly: E* ≈ 0.30 × 70 GPa × (0.20)¹ = 4.20 GPa (609 ksi)—delivering 5× higher structural rigidity at the exact same 20% mass.
• Thermal Fin Efficiency in TPMS Heat Exchangers: In a DMLS AlSi10Mg Gyroid core with a 5.0 mm (0.197″) unit cell and 0.50 mm (0.020″) wall thickness, specific surface area reaches A_s ≈ 650 to 850 m²/m³, increasing convective heat transfer coefficients by 280% compared to CNC-milled straight pin-fin arrays while maintaining pressure drop below 0.35 bar (5.1 psi).

6. Why Do Metal DMLS Lattice Struts Crack or Trap Powder During Printing?

Overhang Thermal Dissipation and Pre-Furnace Powder Evacuation

Internal strut cracking, dross overhang balling, and solid powder blockages in metal DMLS lattices occur when strut incline angles fall below 35°–45° relative to the build plate, when cell aspect ratios create unsupported horizontal spans exceeding 2.0 mm (0.080″), or when stress-relief heat treatment is performed before 100% of trapped metal powder is evacuated.

In laser powder bed fusion, melting a thin overhang directly over loose powder—which has only 1% of the thermal conductivity of solid metal—causes local superheating, downward capillary dross formation, and severe residual tensile stress.

To eliminate internal defects across functional additive production runs, engineers must pair self-supporting cell orientation with the following troubleshooting and DFAM parameters:

Engineering Trade-Offs: When NOT to Use 3D Printed Lattices

Despite their exceptional specific stiffness and thermal area density, cellular lattice topologies are inappropriate for three distinct engineering scenarios:

• Sanitary Food, Pharmaceutical & Ultra-High-Vacuum (UHV) Chambers: As-printed internal lattice pores exhibit surface roughness of Ra 5.0 to 12.0 μm (200 to 470 μin) and cannot be mechanically polished to Ra ≤0.4 μm (16 μin), creating virtual outgassing traps in vacuum systems and bacterial biofilm harbors in sanitary fluid lines.
• Simple Prismatic Lightweighting at Medium-to-High Volume: If a flat aluminum mounting plate or housing only requires 2D weight reduction, 3-axis CNC milling of open triangular isogrid pockets from 6061-T651 plate stock is 60% to 80% cheaper, achieves Ra 0.8 μm (32 μin) smooth walls, and exhibits superior fatigue life without powder removal risks.
• Uniaxial High-Cycle Tensile Fatigue Tie-Rods: Under pure uniaxial tension, a solid wrought or CNC-turned alloy bar always delivers higher specific tensile fatigue endurance than a porous cellular lattice due to nodal stress concentrations and as-printed surface roughness.

7. Step-by-Step Implicit CAD-to-Machining Hybrid Lattice Workflow

Four-Stage Hybrid Additive-Subtractive Execution

Because functional metal lattice components still require precision CNC-machined datum surfaces, bearing bores, and sealing flanges, our engineering team executes a four-stage hybrid additive-subtractive workflow:

1. Step 1: Implicit Field Grading & Sacrificial Machining Stock — We generate functionally graded TPMS or strut infill shells while adding 1.0 to 1.5 mm (0.040″ to 0.060″) of solid machining allowance plus 3-point kinematic locating lugs onto all exterior sealing faces and datum bores.
2. Step 2: DMLS/SLS Laser Sintering & Multi-Axis De-Powder Evacuation — Following powder bed fusion in AlSi10Mg, Ti-6Al-4V, 316L, or PA12/TPU, parts undergo automated rotational vibration, vacuum suction, ultrasonic solvent flushing, and dry-mass verification BEFORE entering the vacuum furnace.
3. Step 3: Vacuum Stress-Relief Annealing & Wire EDM Cutoff — Metal builds remain anchored to the heavy steel build plate during vacuum stress-relief heat treatment (e.g., 300°C for 2 hours on AlSi10Mg; 800°C on Ti-6Al-4V) to prevent thermal warping, then separate cleanly via submerged Wire EDM.
4. Step 4: 3/4/5-Axis CNC Finish Machining & Flow-Bench Qualification — The stress-relieved part is clamped via its sacrificial locating lugs on a CNC machining center to finish critical O-ring grooves, threads, and bearing bores to ±0.010 mm (±0.0004″), followed by Zeiss CMM inspection and differential pressure-drop flow testing.
