Bead Blasting Finish: Glass vs Ceramic Media, Mesh Grit & CNC DFM Guide

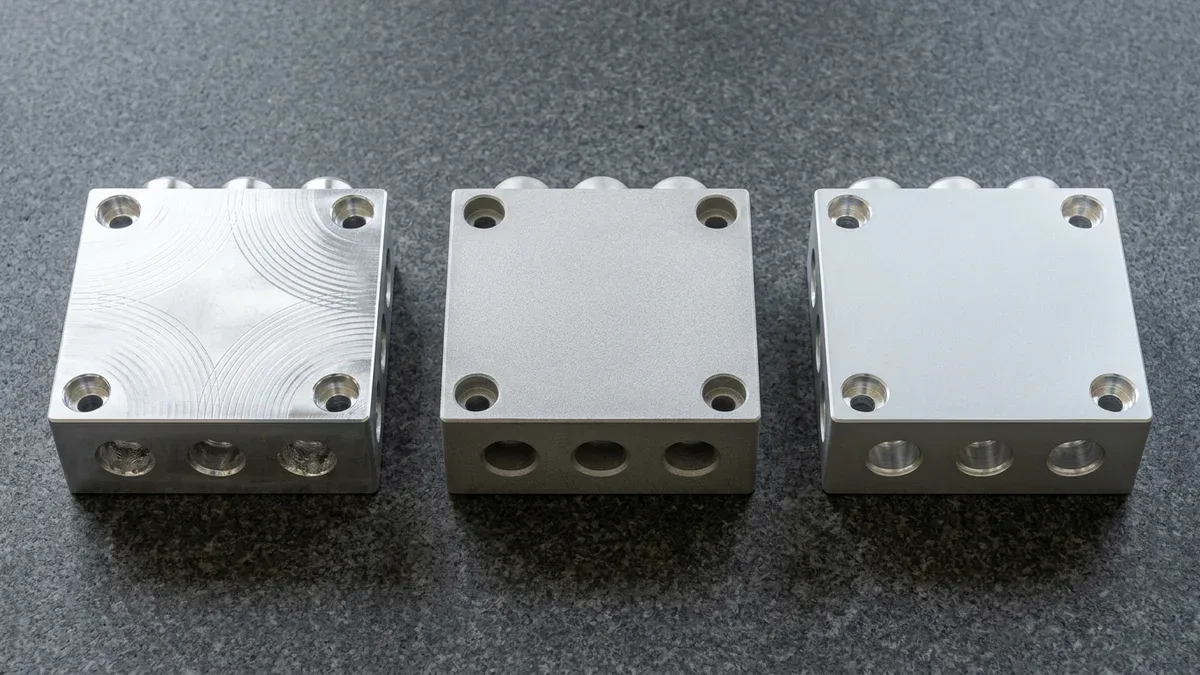

Precision CNC machined components frequently exhibit visible cutter tool marks, stepover cusps, and directional machining lines. Therefore, applying a standardized bead blasting finish provides an efficient mechanical surface treatment to eliminate visual blemishes. Bead blasting propels millions of spherical media particles at high velocity against the workpiece surface. Consequently, this impact peening action blends cutter marks, producing a uniform, non-directional satin matte appearance.

Furthermore, bead blasting induces compressive residual surface stresses that improve fatigue resistance on dynamic mechanical parts. Beyond aesthetics, the resulting micro-dimpled texture creates an ideal anchor profile for secondary anodizing and powder coating adhesion. In this comprehensive technical guide, we evaluate blasting media selections, grit mesh dimensions, pressure controls, and critical DFM rules.

1. Fundamental Mechanics: Abrasive Cutting vs Spherical Impact Peening

Core Physical Principles and Shop-Floor Execution

Mechanical blasting operations divide into two distinct physical mechanisms: sharp abrasive cutting and spherical impact peening. Angular abrasive grits like aluminum oxide slice microscopically into the substrate, carving sharp micro-anchor profiles. While angular grit provides excellent mechanical tooth for thermal spray coatings, it removes substantial parent material.

Conversely, spherical glass beads and ceramic microspheres impact metal surfaces without cutting or gouging the substrate. The spherical shape peens microscopic craters into the outer grain matrix, compressing surface layers. Therefore, spherical bead blasting preserves critical dimensional tolerances on bearing lands and threads far better than angular grit. The comparative matrix below outlines core characteristics across standard industrial blasting media.

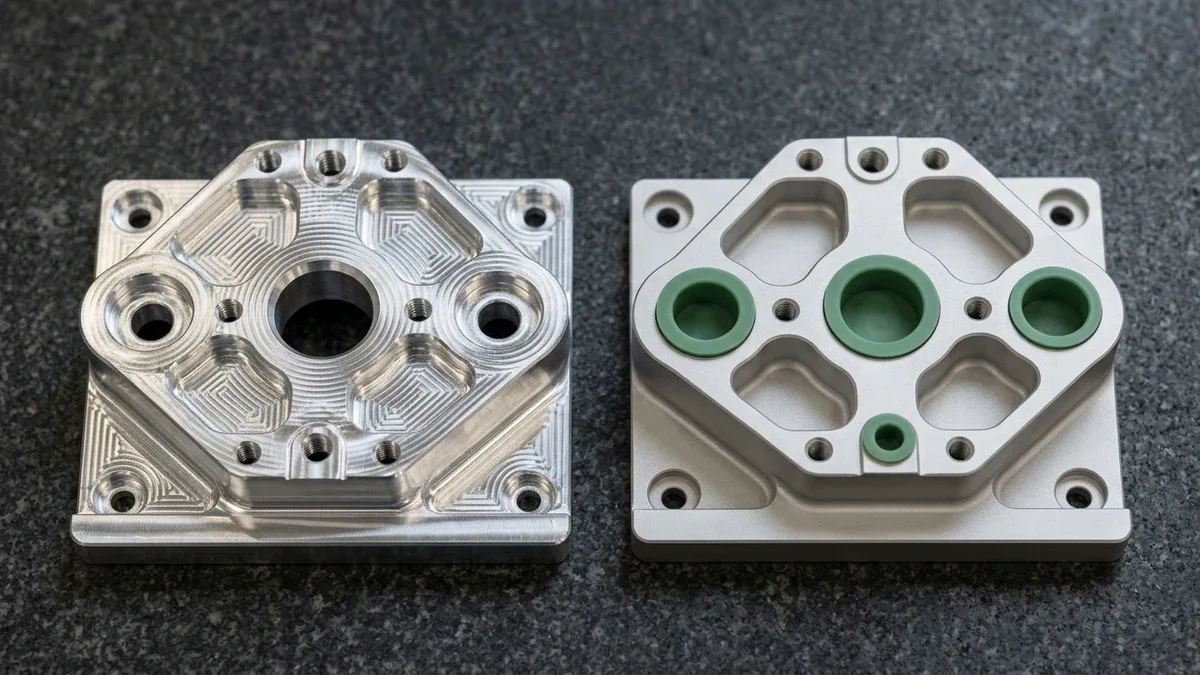

Figure 1 provides a side-by-side visual comparison between an as-machined 6061-T6 aluminum bracket exhibiting directional end-mill toolpath swirls on the left and a glass-bead-blasted bracket on the right. Silicone plugs and high-temperature masking tape protect precision-reamed bearing bores and spotfaced grounding pads during pneumatic media blasting.

2. Glass Bead Mesh Sizes and Surface Roughness Capabilities

Primary Process Capabilities and Equipment Architecture

Selecting the proper media mesh size dictates final surface roughness Ra and visual sheen. Fine glass beads produce delicate velvety textures that scatter light evenly across cosmetic consumer enclosures. Conversely, coarse beads obliterate heavy tool marks from rough machining passes, creating rugged industrial textures.

Furthermore, blast nozzle operating pressure directly modulates surface impact kinetic energy. Excessive air pressure shatters glass beads against hard metals, causing angular fragmentation and inconsistent surface mottling. Therefore, maintaining forty to sixty psi pressure preserves media spherical integrity. The technical table below correlates standard mesh numbers with resulting Ra values on aluminum 6061-T6.

3. Substrate Metallurgy: Aluminum, Stainless Steel, and Titanium Response

Critical Process Parameters and Tooling Selection

Different engineering alloys react uniquely to blast media impact depending on inherent material hardness. Soft wrought aluminum alloys, such as 6061-T6 and 5052-H32, dimple easily under low impact pressures. Consequently, operators must move blast nozzles continuously to avoid localized wall thinning or surface wavy distortion.

In contrast, austenitic stainless steel 304 and 316 work-harden rapidly during mechanical blasting. This surface peening enhances resistance to stress corrosion cracking in aggressive marine and chemical environments. Furthermore, titanium alloys achieve remarkable glare reduction under fine glass bead blasting, critical for tactical aerospace housings. Reviewing material hardness ensures optimized nozzle standoffs and blasting angles.

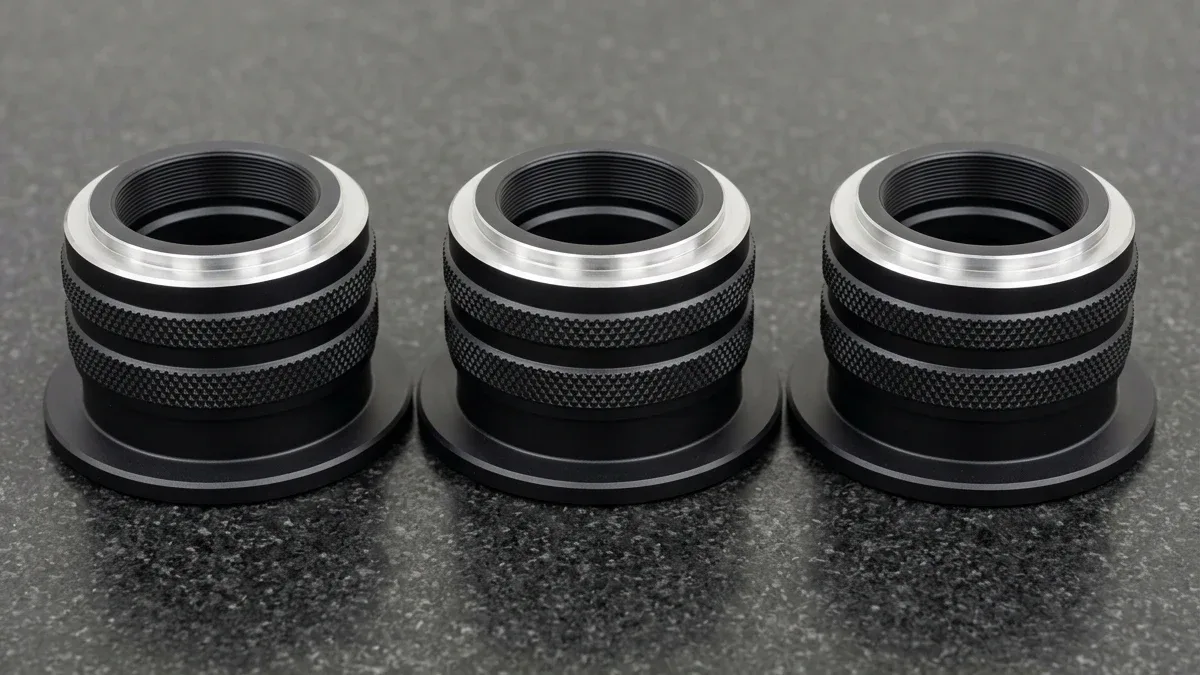

As shown in Figure 2, combining fine glass-bead blasting with MIL-A-8625 Type II matte black anodizing produces a uniform, low-reflectance satin finish across three CNC-turned 7075-T6 aluminum optical lens barrels. Post-machined silver datum shoulders preserve micron-level optical seating accuracy while internal surfaces suppress stray light reflection.

4. Precision Masking Strategies for Tight Tolerance Features

Practical Design-for-Manufacturing (DFM) Guidelines

Because bead blasting impacts exposed surfaces aggressively, critical features must be protected using precision masking. Dowel pin bores, bearing journals, and ground mating faces cannot tolerate dimensional alterations. Specifically, high-elasticity silicone plugs and custom vinyl masking dots shield precision tolerances reliably.

Furthermore, internal threaded holes below M6 size must be plugged to prevent abrasive grit entrapment. Residual trapped glass powder causes severe thread galling and fastener seizure during final assembly. Technicians apply automated ultrasonic cleaning cycles following blasting to purge all microscopic media residues. Explore our range of precision surface finishing capabilities to configure your ideal post-treatment pipeline.

5. Cosmetic Pre-Treatment for Premium Architectural and Lighting Systems

In architectural lighting and consumer hardware, bead blasting serves as the mandatory pre-treatment before decorative anodizing. Raw extruded or milled aluminum reflects light specularly, highlighting minor metallurgical grain boundaries. Blasting converts directional reflections into diffuse isotropic scatter, providing a luxurious velvety feel.

Moreover, combining fine bead blasting with color dye anodizing delivers deep, consistent color saturation across large surface panels. Discover how our engineering team manufactures custom architectural enclosures for commercial lighting and optical hardware worldwide.

6. Quantitative Hertzian Contact & Almen Peening Intensity Mechanics

Dynamic Hertzian Elastic-Plastic Indentation Scaling

Achieving a repeatable cosmetic matte texture across production batches requires controlling the kinetic energy transfer of each spherical bead impact. Unlike manual cabinet blasting where operator nozzle movement varies wildly, automated indexing blast cells regulate air line pressure, media mass flow rate, nozzle standoff distance, and impingement angle through quantitative contact mechanics.

When a spherical soda-lime glass or zirconia ceramic bead of diameter d_p and density ρ_p strikes a metallic substrate of Vickers hardness H_v at normal impact velocity v_n = v · sin(θ), the resulting microscopic plastic dimple diameter d_i and peak indentation depth h_p follow dynamic Hertzian elastic-plastic impact scaling:

h_p ≈ 0.28 · d_p · [ (ρ_p · v² · sin²θ) / H_v ]^1/2   |   Ra_final ≈ 0.18 · h_p + C_sub

6061-T6 Aluminum vs. 316L Stainless Steel Peening Depth Comparison

where C_sub ≈ 0.5–0.8 μm represents the residual baseline substrate texture after cusp flattening.

Consider a shop-floor calculation comparing 6061-T6 aluminum (95 HB / ~107 HV, H_v ≈ 1.05 GPa) against annealed 316L stainless steel (~155 HV, H_v ≈ 1.52 GPa) blasted with #120 mesh glass beads (mean diameter d_p = 125 μm / 0.0049″, density ρ_p = 2,500 kg/m³) at a nozzle pressure of 4.0 bar (58 psi, particle velocity v ≈ 65 m/s) and a 75° impingement angle (sin²(75°) = 0.933):

• 6061-T6 Aluminum Indentation Depth: The dimensionless energy ratio equals (2,500 × 65² × 0.933) / (1.05 × 10⁹) = 0.00938, yielding a square root of 0.0968 and a crater depth of h_p ≈ 0.28 × 125 × 0.0968 = 3.39 μm (133 μin), producing an arithmetic average roughness of Ra 1.1 to 1.4 μm (44 to 55 μin).
• 316L Stainless Steel Indentation Depth: Under the exact same 4.0 bar air pressure, the higher yield resistance (1.52 GPa) reduces crater depth to h_p ≈ 2.81 μm (110 μin) and shifts rapidly toward strain hardening, requiring either 5.0 to 5.5 bar (72 to 80 psi) pressure or higher-density zirconia ceramic beads (ρ_p = 3,850 kg/m³) to achieve equivalent cusp blending.
• Thin-Wall Almen Arc Height Deflection: Because spherical peening stretches the top 25 to 75 μm (0.001″ to 0.003″) of metal plastically, blasting only one side of a thin aluminum cover plate (<1.5 mm / 0.060″ thick) induces a convex bow of 0.15 to 0.60 mm per 100 mm span. Balanced dual-side blasting at reduced pressure (2.2 to 2.8 bar / 32 to 40 psi) is mandatory for thin enclosures.

7. Why Do Bead-Blasted Aluminum Parts Show Streaking or Cloudy Anodizing?

Cyclone Media Classification and Ultrasonic Desmutting Controls

Streaking, blotchy dark clouds, and uneven specular reflection on bead-blasted and anodized aluminum housings are caused by fractured angular glass dust breakdown, oil contamination inside recirculating cyclone media hoppers, or excessive nozzle dwell heat during blasting. While fresh spherical beads create uniform isotropic micro-dimples, shattered glass fragments gouge directional micro-scratches that trap acid and organic dye unevenly during MIL-A-8625 Type II anodizing.

To prevent cosmetic rejection across multi-piece assembly enclosures, our finishing shop enforces strict cyclone separator classification, media replenishment schedules, and post-blast ultrasonic nitric-acid desmutting before racking parts into the anodizing tank.

Engineering Trade-Offs: When NOT to Specify Bead Blasting

While spherical media blasting is the gold standard for satin cosmetic hardware, engineers must avoid applying bead blasting across four specific functional zones:

• Dynamic Elastomer O-Ring & Lip-Seal Grooves: Isotropic micro-dimples create interconnected capillary leak paths under high-vacuum or high-pressure hydraulic O-rings; seal glands must remain as-machined or polished to directional concentric lay at Ra 0.4–0.8 μm (16–32 μin).
• High-Frequency RF Waveguide Interiors (Above 20 GHz): At millimeter-wave frequencies, electromagnetic skin depth shrinks to 0.4–0.8 μm; increasing surface roughness from Ra 0.4 μm to Ra 1.8 μm via bead blasting dramatically increases conductor insertion loss and phase noise.
• Ultra-Thin Diaphragms & Flexure Hinges (<0.8 mm / 0.031″): Peening-induced compressive surface stress permanently alters the spring rate and zero-point calibration of metallic load-cell flexures and pressure sensor membranes.
• Unmasked Precision Bearing Journals & Sliding Guideways: Even minimal spherical media impingement alters ISO h6/g6 interference and sliding fits and embeds microscopic silicate residue into lubricated ways; always mask bearing seats with custom silicone bungs.

8. Step-by-Step Shop-Floor Bead Blasting & Anodizing Protocol

Five-Stage Surface Preparation and Anodizing Integration

To ensure consistent satin reflectivity and zero dimensional drift from prototype to 1,000-unit production batches, AS Prototypes executes a five-stage surface preparation workflow:

1. Pre-Blast Ultrasonic Degreasing & Deburring — Machined components undergo aqueous ultrasonic cleaning at 60°C (140°F) to strip water-soluble CNC coolant emulsions and cutting oils so hydrocarbons never contaminate the dry glass/ceramic media hopper.
2. Precision Silicone & Kapton Masking — Operators install reusable high-durometer silicone pull-plugs into all threaded holes (M1.6–M12), press-fit dowel bores (±0.010 mm / ±0.0004″), and apply die-cut polyimide tape over datum pads.
3. Controlled-Pressure Spherical Peening — Parts are blasted inside dedicated alloy-segregated cabinets at 3.0 to 4.2 bar (45 to 60 psi) using cyclone-classified #120, #150, or #180 glass or zirconia beads at a 150–200 mm (6″–8″) standoff and 65°–75° angle.
4. Dry Nitrogen Blow-Off & Ultrasonic Rinse — Immediately after unmasking, parts are purged with ionized dry compressed air and agitated in deionized (DI) water ultrasonic baths to dislodge any electrostatic dust trapped inside blind pockets.
5. Stylus Profilometry & Immediate Conversion Coating — Quality inspectors verify arithmetic roughness (Ra and Rz per ISO 4287) across three orthogonal orientations before transferring parts directly to MIL-A-8625 anodizing or ASTM A967 passivation within 4 hours.
