Plastic injection molding remains the undisputed king of commercial polymer manufacturing, accounting for more than 65% of all plastic hardware produced worldwide. From medical diagnostic disposables and automotive interior trim to consumer electronics enclosures and industrial pumps, injection molding delivers unmatched unit economics, material versatility, and part-to-part repeatability at scale.
For product developers, hardware startups, and multinational procurement teams across North America and Europe, sourcing injection molding services from China—specifically from the world’s premier precision tooling cluster in the Shenzhen and Greater Bay Area—offers massive competitive advantages. However, navigating global tooling requires more than simply finding a competitive quotation. It demands an understanding of rapid tooling vs. production steel classes, comprehensive Moldflow DFM engineering, SPI surface finish standards, and rigorous metrology verification.
In this technical guide, AS Prototypes provides an engineer’s roadmap to sourcing precision injection molding and rapid tooling from China with uncompromising quality and reliable lead times.
The Shenzhen Tooling Ecosystem: A Concentrated Industrial Cluster
The manufacturing dominance of southern China’s Greater Bay Area (Shenzhen, Dongguan, Guangzhou) is rooted in extreme supply chain concentration. Within a 30-mile radius, precision mold makers benefit from an integrated supplier network that is impossible to replicate elsewhere:
- Standardized Tooling Components: Immediate local availability of world-class mold bases (LKM / Hasco / DME standards), hot runner systems (Yudo, Mold-Masters), and precision ejector pins within 24 hours.
- Certified Raw Polymer Supply: Direct regional distribution hubs for prime engineering resins from global compounders including SABIC (Lexan PC, Cycolac ABS), DuPont (Delrin POM, Zytel PA), Covestro, and BASF.

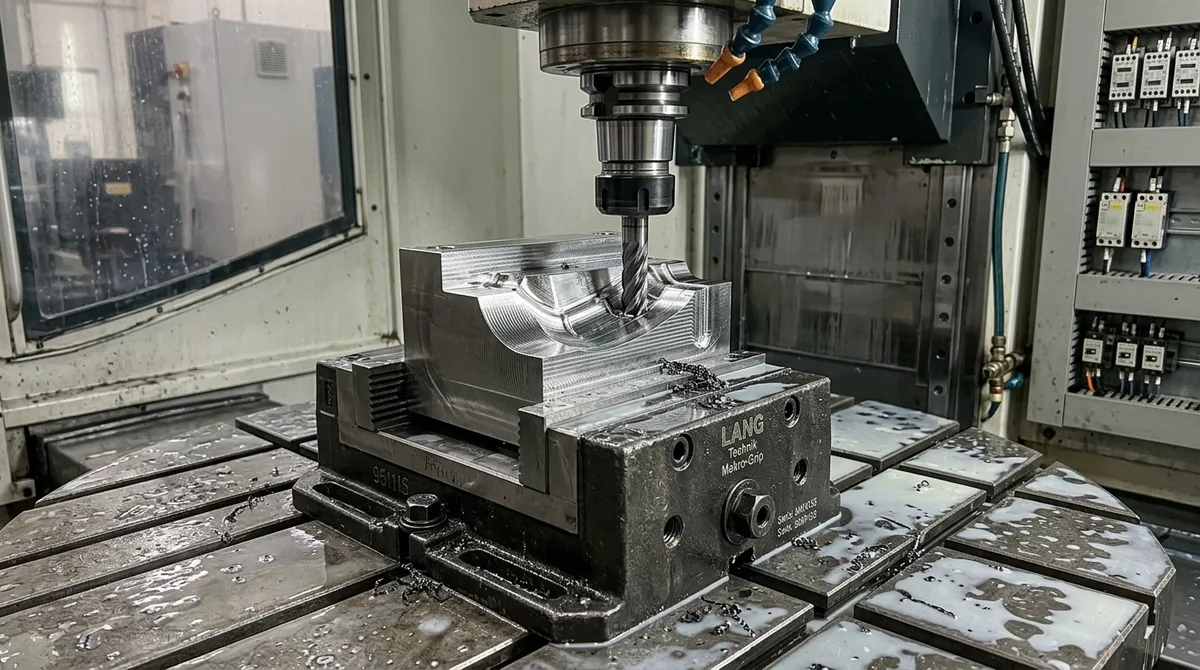

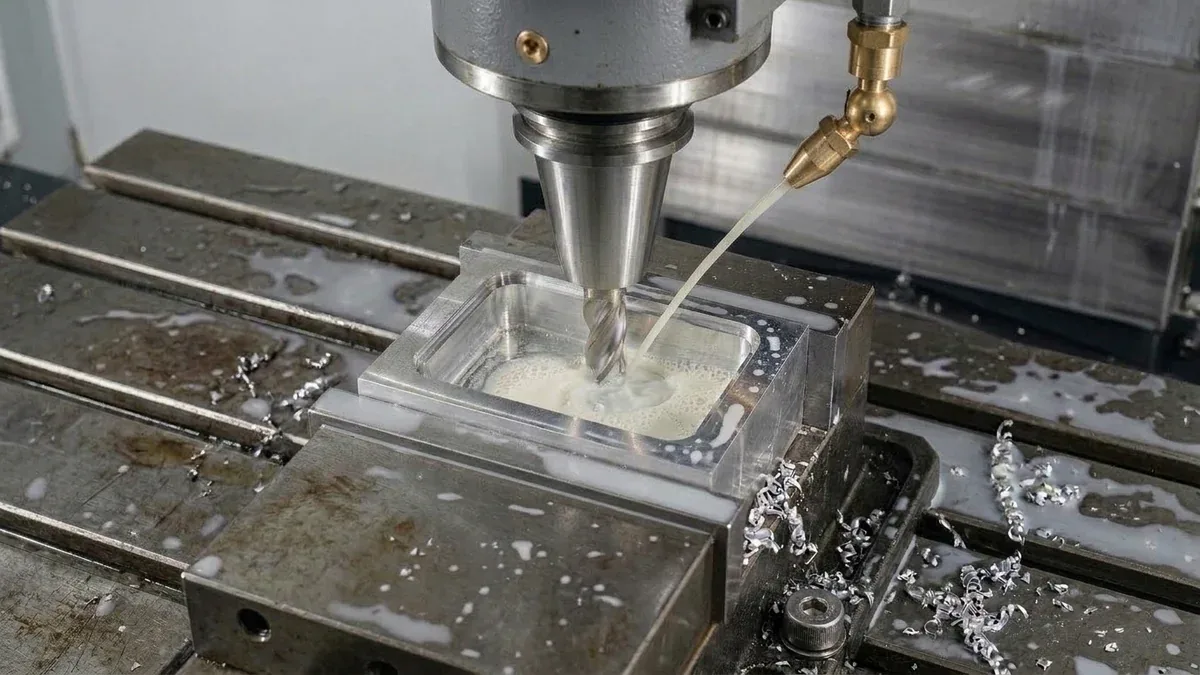

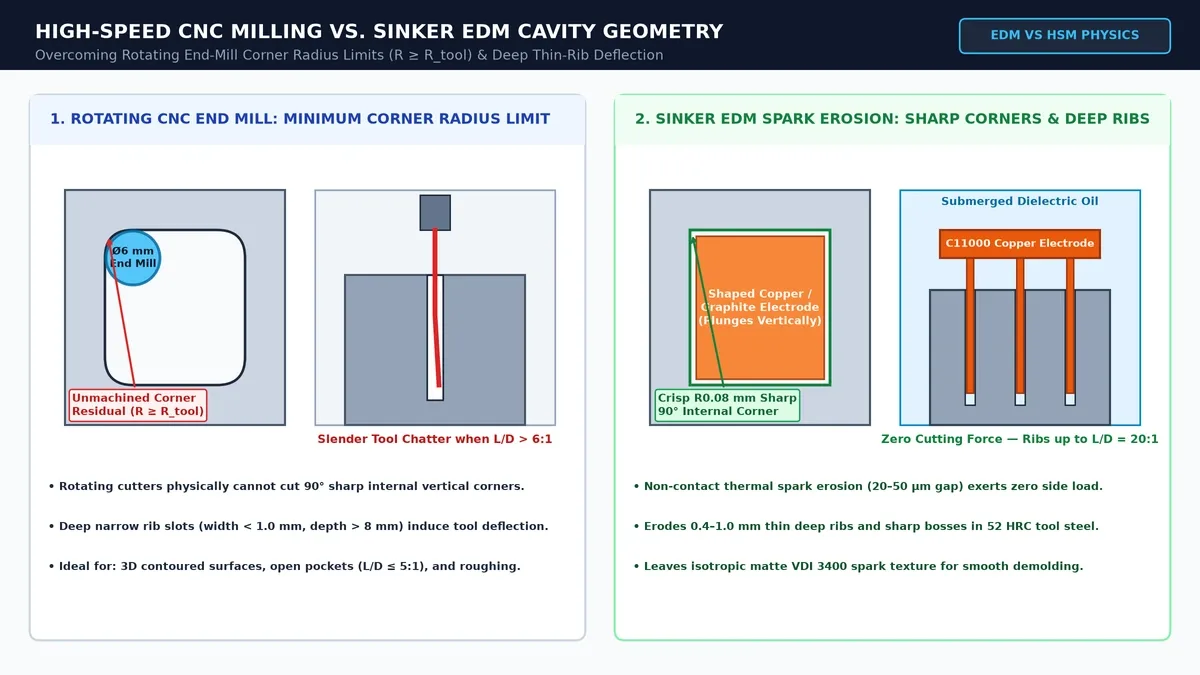

- Advanced CNC & EDM Infrastructure: Widespread deployment of ultra-precision Japanese and European machine tools, including Makino mirror EDM, Sodick wire EDM, and 5-axis high-speed machining centers capable of cutting hardened mold steel to ±0.005 mm tolerances.
- International Air Freight Connectivity: Proximity to Hong Kong and Shenzhen international air hubs enables T1 first-shot sample parts to arrive at design offices in California, Germany, or the UK in just 3 to 5 business days.

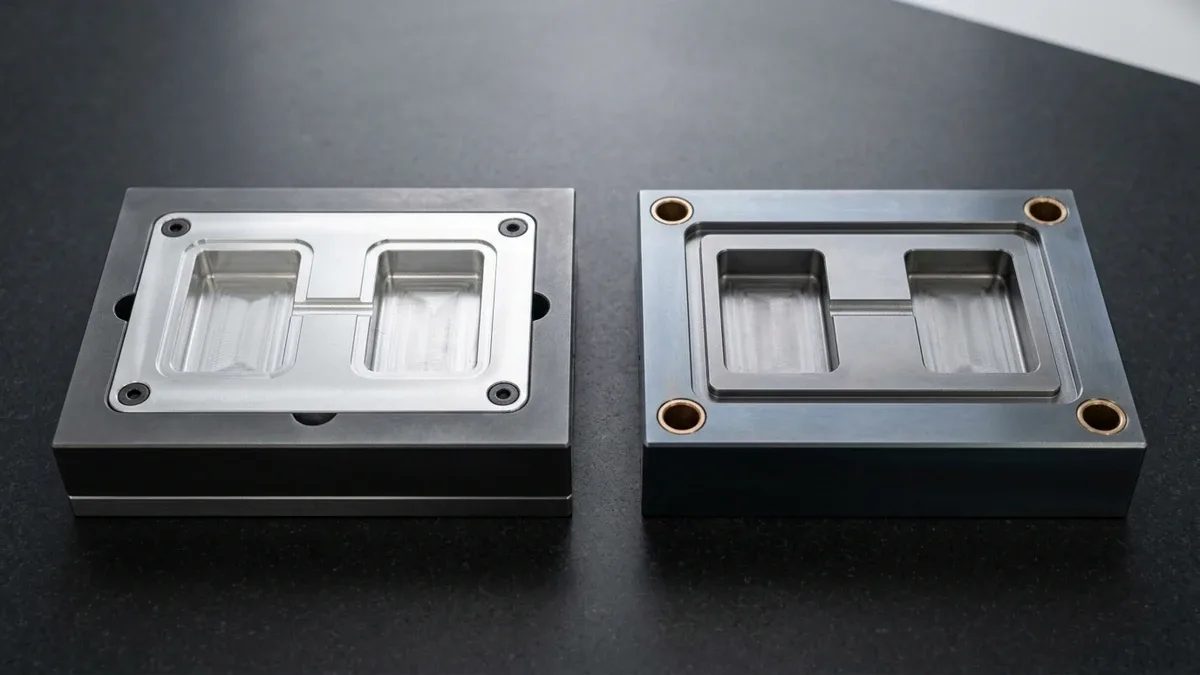

Rapid Tooling vs. High-Volume Production Tooling
Historically, building an injection mold required an upfront commitment of $20,000 to $100,000+ and 8 to 12 weeks of toolmaking. While this is optimal for millions of parts, it poses severe risks for bridge manufacturing, functional user testing, and pilot clinical trials.
To eliminate this barrier, AS Prototypes specializes in two complementary tooling pathways:
1. Rapid Tooling (Bridge Molds)

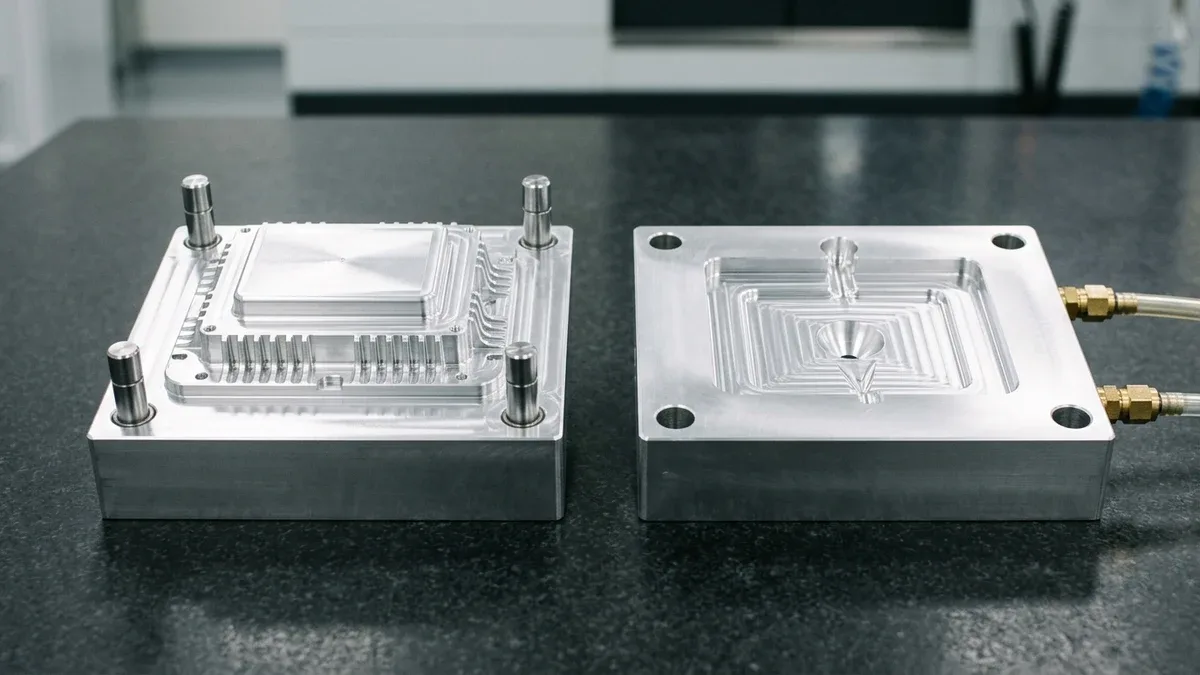

- Tool Material: Aircraft-grade aluminum (Alloy 7075-T6) or pre-hardened steel (NAK80 / P20).
- Lead Time: 10 to 15 business days to T1 samples.
- Tool Life: 1,000 to 50,000 shots.
- Advantages: Aluminum dissipates heat up to 5 times faster than steel, enabling shorter molding cycle times. Modular master unit die (MUD) base inserts allow fast core/cavity changeouts at 40% to 60% lower upfront cost.
2. High-Volume Production Tooling (SPI Class 101/102)
- Tool Material: Through-hardened premium stainless mold steels (S136, H13, 1.2344, 420SS) vacuum heat-treated to 48–54 HRC.
- Lead Time: 25 to 40 business days.
- Tool Life: 500,000 to 1,000,000+ shots.

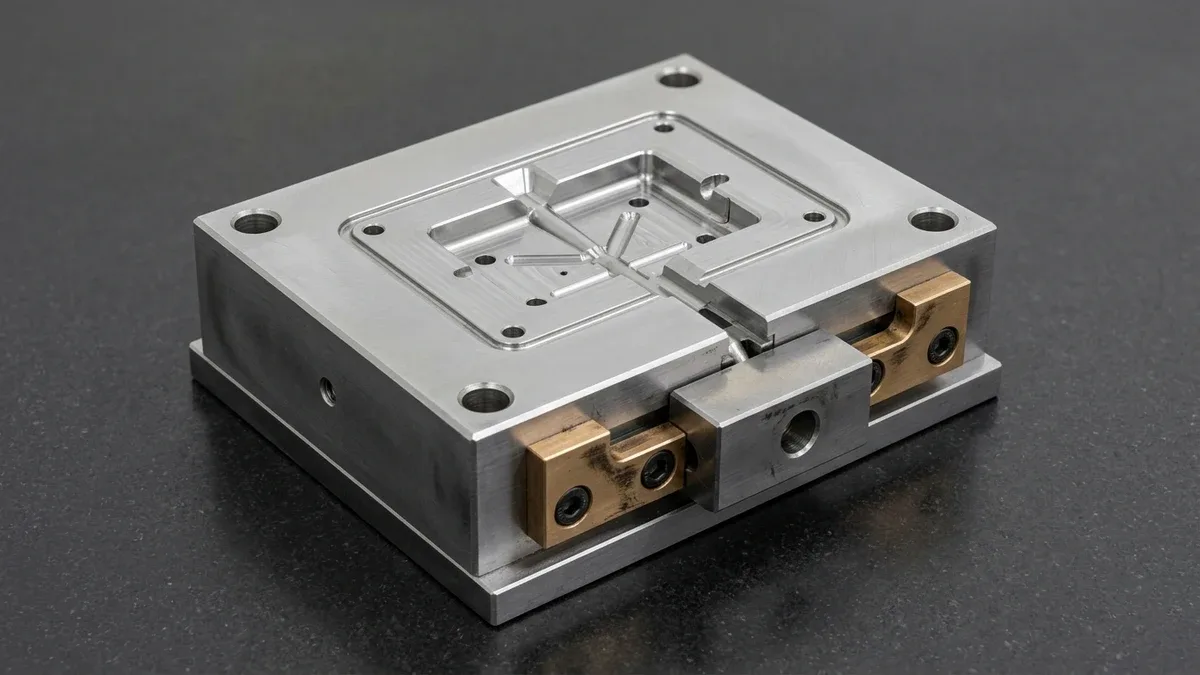

- Advantages: Superior resistance to abrasive glass-filled resins (PA66-GF30) and corrosive fluoropolymers (PVDF/PTFE), optimized conformal cooling lines, and fully automated multi-cavity slide actions.
SPI Mold Tooling Classification Matrix
Understanding the standard SPI (Society of the Plastics Industry) tool classifications ensures transparent expectations between international procurement and the tooling facility:
| SPI Mold Class | Rated Shot Life | Core / Cavity Steel | Typical Lead Time | Recommended Use Case |
|---|---|---|---|---|
| Rapid Prototype Tooling | 1,000 – 10,000 | Aluminum 7075-T6 / P20 | 10 – 14 Days | Design validation, functional prototypes, crowdfunding pilot batch |
| SPI Class 104 (Low Volume) | < 100,000 | P20 / NAK80 (Pre-hardened) | 15 – 20 Days | Limited production runs, non-abrasive polymers (PP, PE, ABS) |
| SPI Class 103 (Medium Volume) | < 500,000 | H13 / 718H (32 – 36 HRC) | 20 – 30 Days | Commercial production, consumer electronics, multi-cavity parts |
| SPI Class 102 (High Volume) | < 1,000,000 | H13 / S136 (48 – 52 HRC) | 30 – 40 Days | High-speed automated production, abrasive resins, guided ejection |
| SPI Class 101 (Extreme Volume) | 1,000,000+ | S136 Stainless / H13 (54+ HRC) | 35 – 50 Days | 24/7 lights-out production, medical consumables, automotive connectors |
Essential DFM & Moldflow Simulation Before Steel Cutting

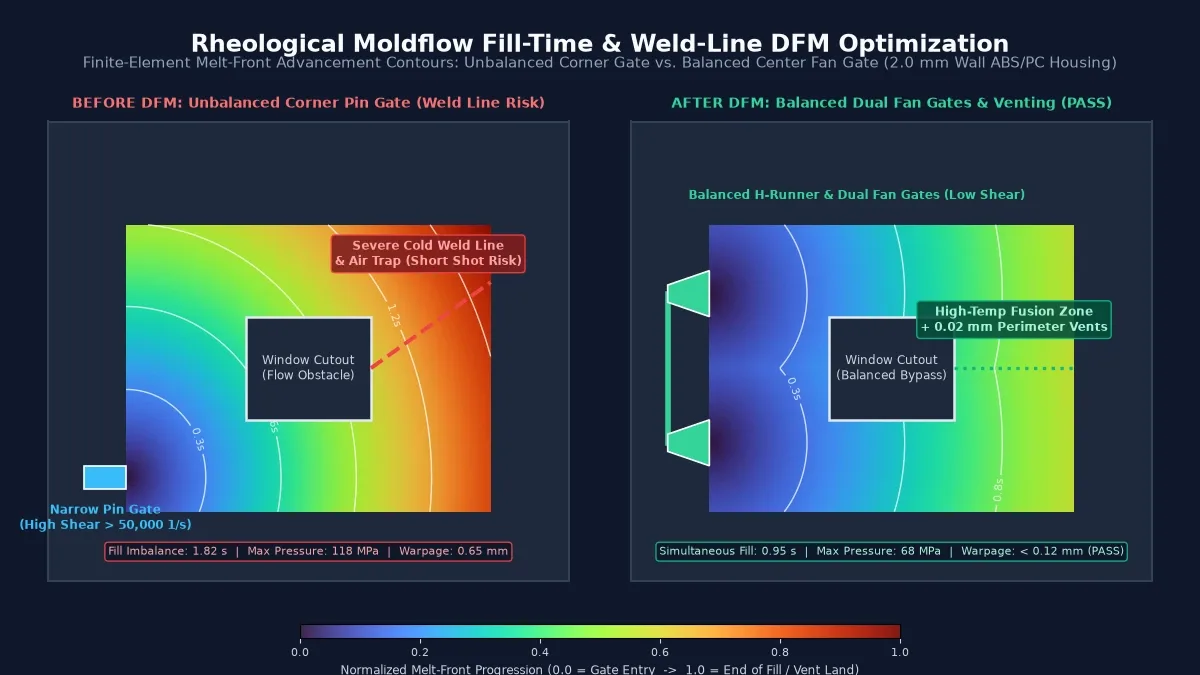

The golden rule of injection mold tooling is: catch defects in simulation, not on the press. Prior to initiating CNC toolpaths or EDM burning, our engineering team at AS Prototypes performs a comprehensive Moldflow simulation:

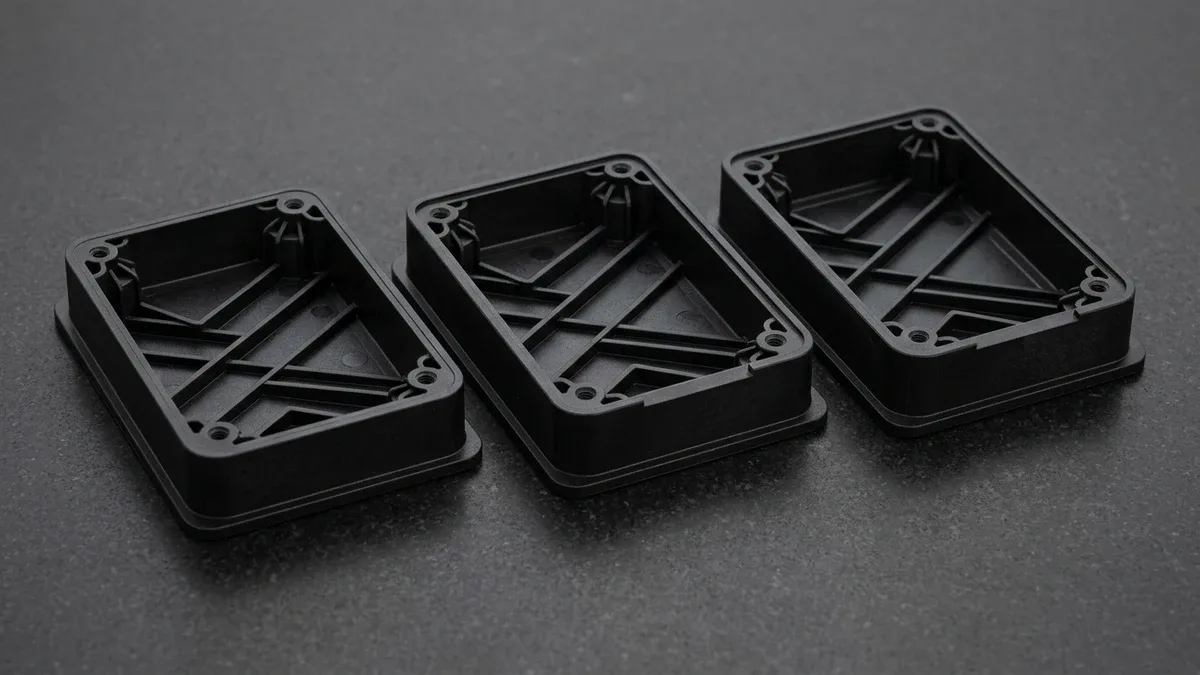

- Uniform Wall Thickness & Coring Out: Identifying heavy cross-sections that induce cosmetic sink marks and differential shrinkage voids. Heavy bosses and thick ribs are cored out to 40%–60% of adjacent nominal wall thickness.
- Draft Angle Optimization: Ensuring adequate draft (minimum 1.0° to 1.5° on core/cavity faces; 3.0°+ for heavy Mold-Tech textures) to guarantee clean part ejection without drag marks.
- Gate Type & Location Strategy: Simulating sub-gates, edge gates, or hot runner valve gates to optimize melt front filling, hide vestige scars, and position knit/weld lines away from mechanical stress zones.
- Air Venting & Cooling Channel Layout: Strategically positioning micro-vents (0.015 mm to 0.025 mm depth) at the end-of-fill boundaries to prevent diesel-effect burn marks and trapped gas blistering.
Quality Assurance & Metrology for Molded Parts

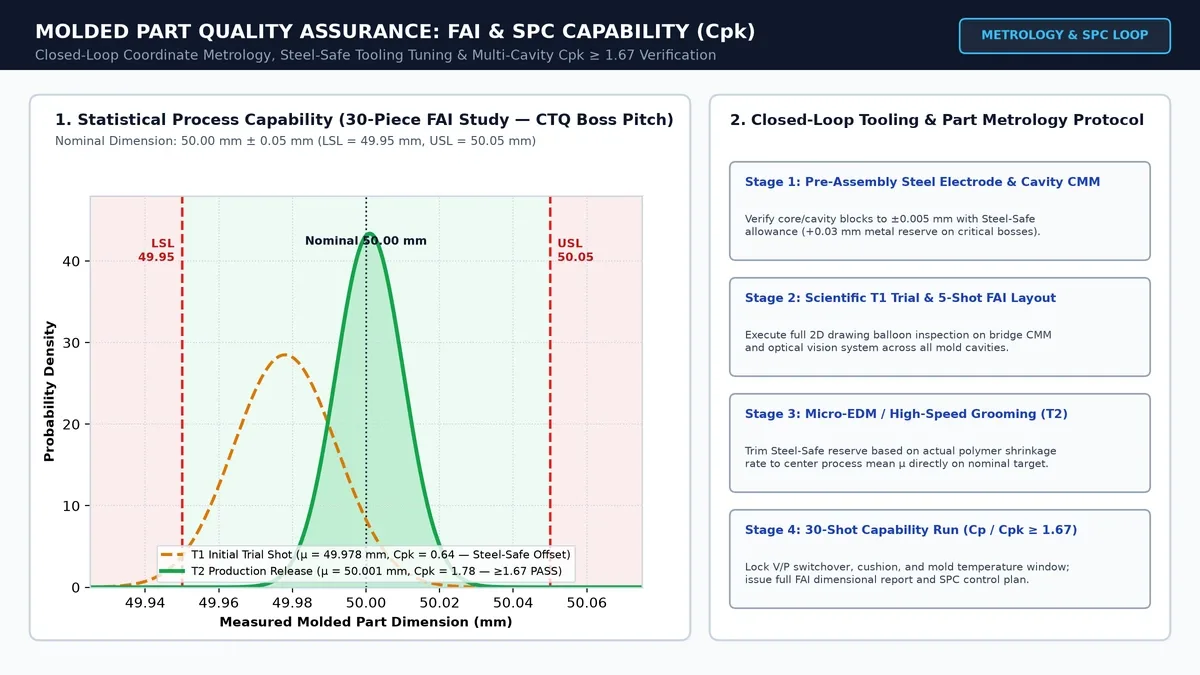

Precision injection molding is not simply about cycling the machine; it is about maintaining statistical process control (SPC) across thousands of parts:

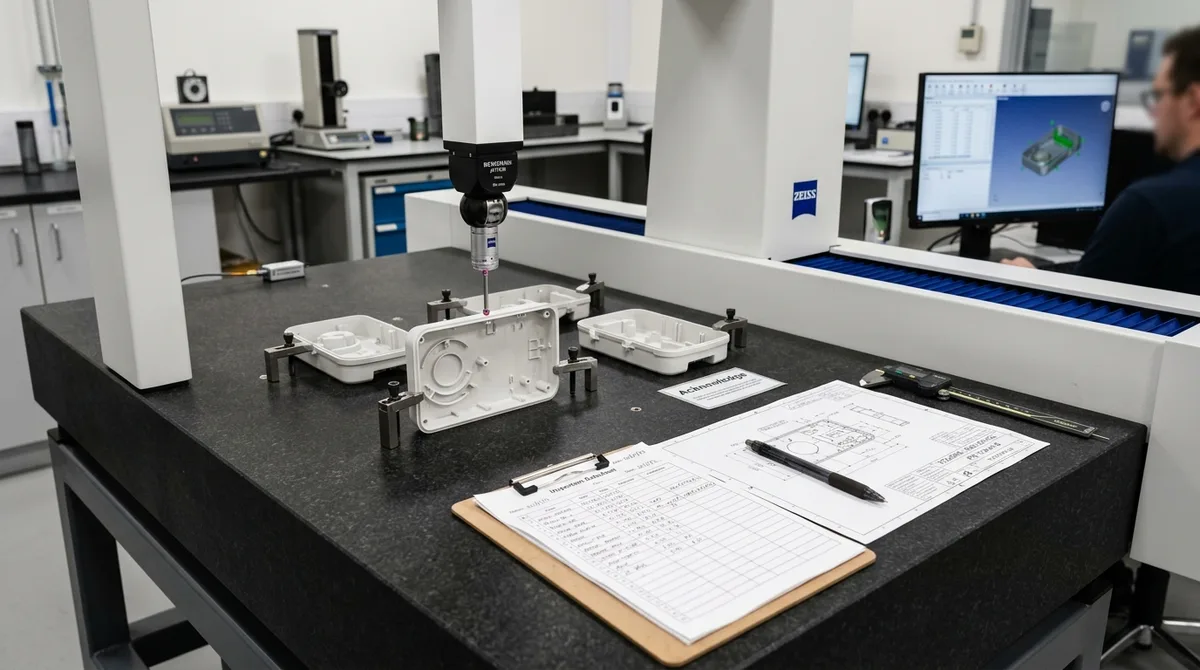

- First Article Inspection (FAI): Upon T1 mold trial, sample parts undergo 100% full-feature dimensional verification using our automated Zeiss CMM, comparing spatial geometry against customer 2D GD&T drawings.
- Resin Traceability & Material Certificates: We provide full raw resin lot certificates, UL94 flame-retardant ratings, and RoHS/REACH compliance documentation with every shipment.
- Standardized SPI Surface Finishes: From SPI A1 optical mirror polish (using 3-micron diamond buffing for clear PC/PMMA lenses) to SPI D2/D3 matte bead-blasted and Mold-Tech MT textures, mold cavities are finished to exact customer cosmetic standards.
Partner with AS Prototypes for Your Injection Molding Projects
At AS Prototypes, we combine the agile responsiveness of rapid prototyping with the rigorous quality standards of high-precision toolmaking. Our Shenzhen manufacturing facility operates injection molding presses ranging from 50 to 1,200 tons, supporting medical, automotive, aerospace, and consumer electronics projects worldwide.
Ready to Launch Your Plastic Injection Molding Project?
Upload your 3D CAD files (STEP/IGES) and part requirements today. Our dedicated tooling engineers will provide detailed DFM Moldflow feedback and a competitive quote within 24 hours.
