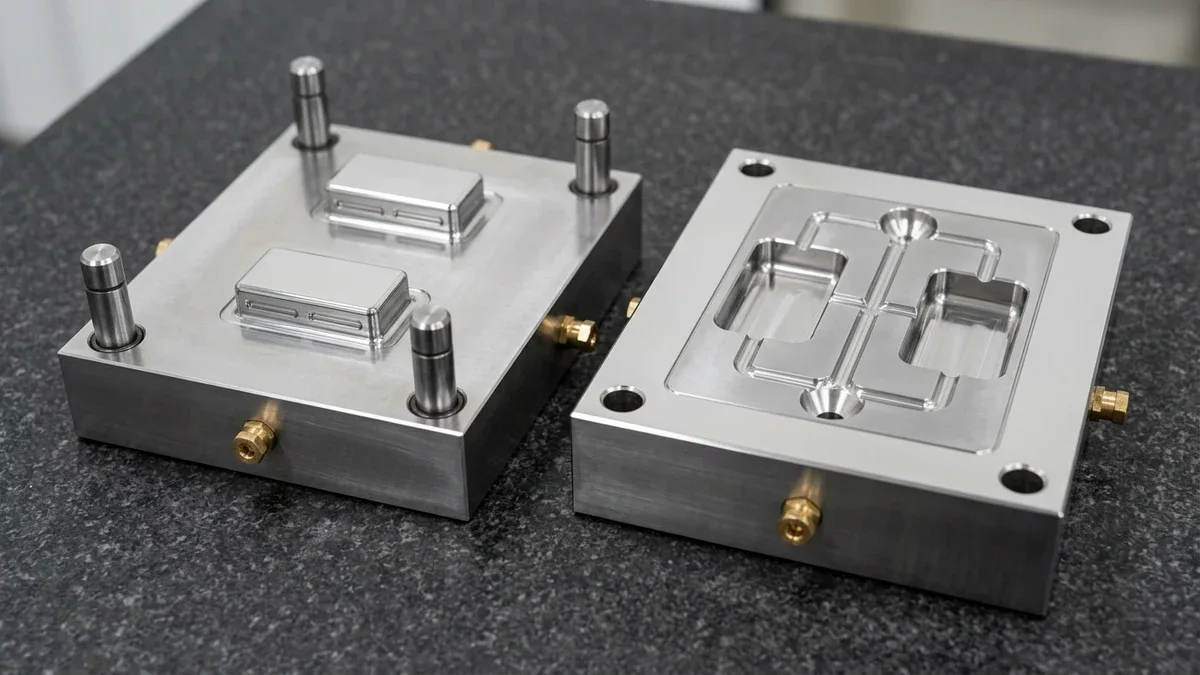

Professional Mold Supplier Selection: 5 Engineering Checks

Auditing a prospective professional mold supplier represents a vital strategic decision for OEM engineering and procurement teams. Consequently, selecting an unqualified tooling shop creates chronic part flashing, costly tool modifications, and missed commercial launch deadlines.

Production injection molding requires substantial upfront capital investment in hardened steel tooling. Furthermore, choosing a world-class injection molding manufacturer ensures seamless transition from initial DFM through high-volume production.

Before issuing tooling purchase orders, procurement managers must verify physical shop floor capabilities. Specifically, reviewing verified manufacturing machines on the factory equipment list confirms in-house CNC and EDM capabilities.

⏱️ Estimated Reading Time: ~5 mins | Target Audience: Tooling Engineers, Plastic & Die-Cast Part Designers, R&D Sourcing Managers

Written by: AS Prototypes Precision Engineering Team | Technically Reviewed by: Senior Tooling & Molding Engineering Specialist (12+ Years Shop-Floor Experience)

Article Engineering Navigation

1. 5 Critical Engineering Questions for Mold Supplier Audits
2. Injection Mold Tooling Steel Comparison Matrix
3. Technical Engineering FAQ

1. 5 Critical Engineering Questions for Mold Supplier Audits

Thorough supplier due diligence uncovers hidden manufacturing risks before steel machining commences. For example, asking five specific technical questions reveals true toolmaker competence.

Question 1: What Tool Steel Grade and Heat Treatment Documentation Do You Provide?

Unqualified low-cost tooling shops often substitute soft pre-hardened steel like P20 for high-volume production programs. However, abrasive glass-filled resins rapidly erode soft cavity shutoffs.

A professional mold supplier guarantees genuine verified tool steel such as H13, NAK80, or S136 stainless steel. Additionally, they provide raw material Mill Test Reports (MTR) and furnace vacuum heat treatment hardness logs.

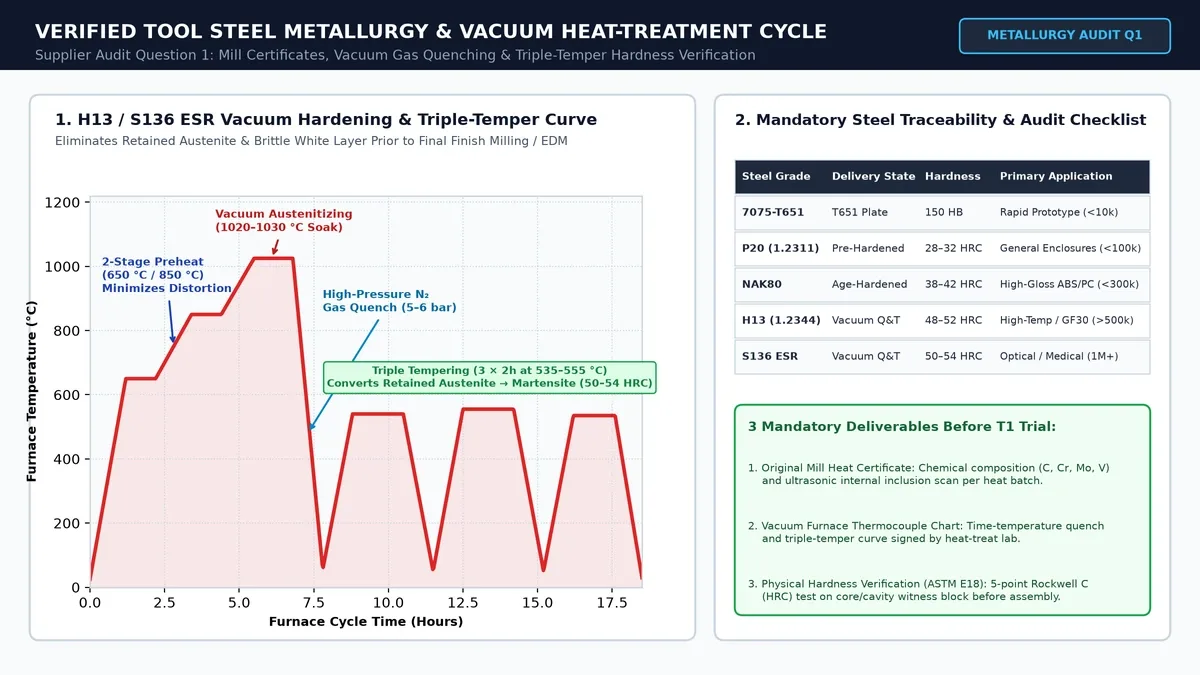

Vacuum heat-treatment furnace temperature curve showing two-stage preheat, austenitizing soak, nitrogen gas quench, and triple tempering — Verified vacuum heat-treatment cycle for H13 and S136 ESR mold steels: two-stage preheating, 1025 °C austenitizing, high-pressure nitrogen gas quenching, and triple tempering to 50–54 HRC.

Question 2: Do You Provide In-House Moldflow Simulation and Comprehensive DFM Reports?

Tool design without upfront flow simulation leads to unpredicted air traps, weld lines, and severe warpage. Consequently, tooling modifications after steel hardening cause expensive schedule delays.

Reputable toolmakers perform full Moldflow finite element simulation prior to steel cutting. Therefore, engineers resolve gate locations, wall thickness transitions, and cooling loops during initial engineering reviews.

Question 3: What SPI Tool Class Will You Build, and What Is the Shot Life Guarantee?

The Society of the Plastics Industry (SPI) defines rigid tooling classifications based on production volume. To illustrate, review the SPI mold classification matrix below:

Table 1: SPI Injection Mold Classification Matrix (Class 101 to Class 105) — Cycle Life, Steel Hardness & Cooling Standards
SPI Mold Class	Production Cycle Life	Minimum Steel Hardness	Cooling Channel Standards	Target Production Volume
Class 101	1,000,000+ Cycles	≥ 48 HRC (H13 / S136 Hardened)	Conformal / Plated Rust-Free Channels	High-volume consumer & automotive
Class 102	Up to 1,000,000 Cycles	≥ 42 HRC (420SS / 718H)	Direct Milled Core & Cavity Channels	Medium-to-high volume industrial
Class 103	Up to 500,000 Cycles	≥ 30 HRC (P20 Pre-hardened)	Standard Internal Drilled Circuits	Medium volume assemblies
Class 104	Up to 100,000 Cycles	P20 or Mild Steel	Basic Water Bridges	Low-volume pilot runs
Class 105	Under 1,000 Cycles	7075-T6 Aluminum / Epoxy	No Cooling or External Chillers	Rapid prototyping validation

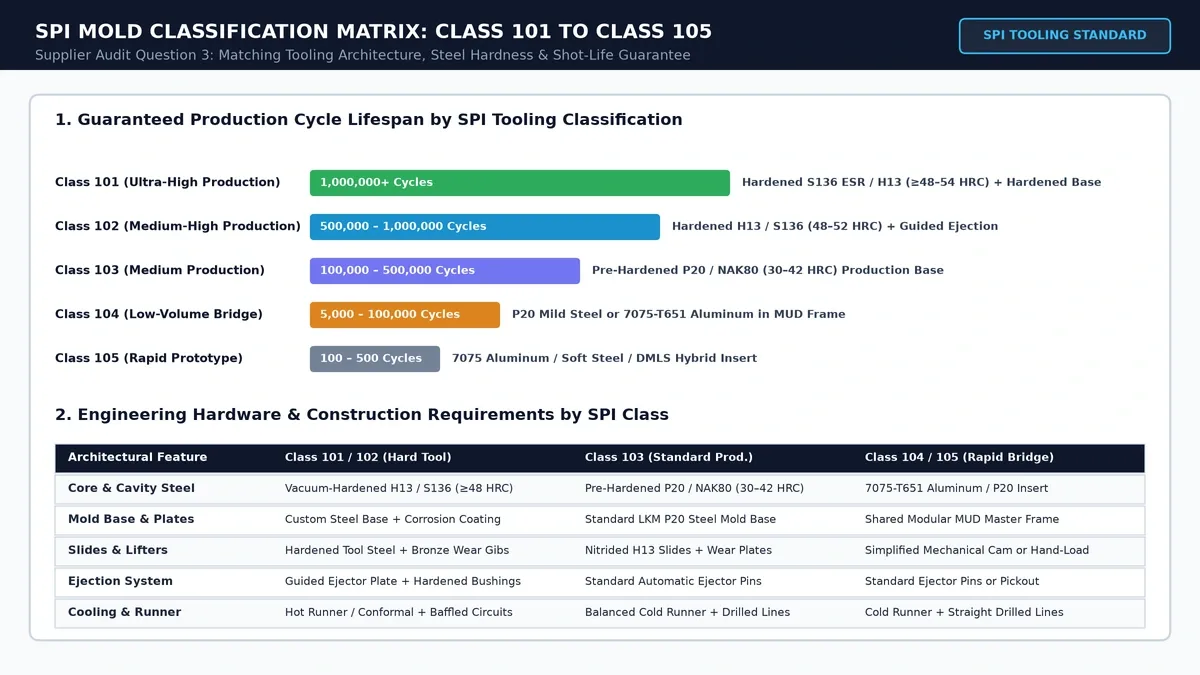

SPI injection mold classification matrix comparing guaranteed cycle life and hardware specifications across Class 101 to Class 105 — SPI mold classification matrix (Class 101 through Class 105) aligning guaranteed cycle lifespan with core/cavity steel hardness, mold base construction, and ejection hardware.

Question 4: What Dimensional Inspection Reports and First Article Protocols Do You Follow?

Receiving sample parts without detailed coordinate measuring data leaves buyers blind to out-of-spec dimensions. In contrast, professional suppliers generate complete First Article Inspection (FAI) reports.

Specifically, 2.5D optical vision metrology and CMM touch probes measure critical GD&T callouts across multiple cavities. Thus, buyers receive proven dimensional compliance conforming to ISO 2768-mK before mold signoff.

Question 5: Who Owns the Mold Tooling, and What Preventive Maintenance Is Included?

Unscrupulous tooling vendors occasionally hold mold ownership hostage or charge exorbitant storage fees. Therefore, engineering contracts must explicitly confirm 100% customer ownership of tooling assets.

Furthermore, premier suppliers provide complimentary lifetime preventive maintenance for molds retained in-house. Specifically, regular ultrasonic cleaning, lubrication, and pin replacements preserve tool life.

2. Injection Mold Tooling Steel Comparison Matrix

Tooling longevity depends directly on selecting appropriate core and cavity steel alloys. To illustrate, review the steel comparison below:

Table 2: Injection Mold Tooling Steel Comparison Matrix — Engineering Comparison & Reference Matrix
Mold Steel Alloy	Hardness (HRC)	Polishability & Clarity	Corrosion Resistance	Optimal Resin & Application
P20 Pre-hardened	28 to 32 HRC	Standard SPI B2 / B3	Low (Requires anti-rust oil)	PP, ABS, PE non-abrasive general parts
718H Pre-hardened	33 to 38 HRC	Good SPI B1 / B2	Moderate	Large automotive panels, structural housings
NAK80 Age-hardened	37 to 43 HRC	Excellent SPI A2 Diamond Polish	Moderate	Transparent lenses, cosmetic consumer electronic cases
H13 Through-hardened	48 to 54 HRC	High SPI A3 / B1	Moderate Thermal Fatigue Resistant	Glass-filled nylon (PA+GF), abrasive polymers
S136 Stainless ESR	50 to 54 HRC	Superior SPI A1 Optical Mirror	Outstanding Acid & Rust Resistant	Corrosive PVC/POM, optical lenses, medical parts

🔗 Related Engineering & DFM Guides:

3. Technical Engineering FAQ

What distinguishes a professional mold supplier from a low-cost tooling intermediary?

Professional mold suppliers own their in-house high-speed CNC machines, sinker EDM systems, and metrology labs. In contrast, intermediaries outsource manufacturing, resulting in poor communication, unverified steel, and uncontrollable quality.

Why is SPI tool classification important when quoting injection mold tooling?

SPI classifications align expected production lifespan with appropriate steel hardness and cooling designs. Consequently, specifying SPI classes prevents suppliers from substituting cheap aluminum or soft steels on long-term production contracts.

How should buyers verify mold steel authenticity and heat treatment hardness?

Buyers should demand official Mill Test Reports (MTR) along with ultrasonic flaw test reports. Furthermore, requesting post-heat-treatment Rockwell hardness test reports ensures cavities achieve specified wear resistance.
